Epdm single sphere flexible rubber joint in pipe fitting
Good quality flexible rubber joint in pipe fitting
Huayuan rubber joint is also called expansion joints or rubber expansion
joint. It is a pipe joint of high-flexibility, high-gas tightness, resistance to medium and climate. rubber expansion joints are flexible connectors made from natural or synthetic elastomers in which special fabrics are embedded to provide physical reinforcement. rubber expansion joints provide a proven and flexible solution to accommodate many types of movements and requirements of industrial plant and equipment.
Good class flexible rubber joint in pipe fitting
Features of flexible rubber joint in pipe fitting
1.Small volume,light flexible ,easy to install and maintain
2.It reduces structural noise transmission with strong shock absorption in servive.
3.It is capable of horizontal,axial and angular displacement with the restruction and flange non-parallelism.
4.The inner seamless high-pressure rubber joint independently developed by us prevents corrosive medium from etching the inner wall of the rubber joint in high temperature ,acid and alkali and oil resistant pipeline,thereby
Technical conditions of flexible rubber joint in pipe fitting
| item | type |
JGD-1 |
JGD-2 |
JGD-3 |
working pressureMPa(kgf/cm2 ) |
1.010) |
1.6(16) |
2.5(25) |
|
burst pressureMPa(kgf/cm2 ) |
2.0(20) |
3.0(30) |
4.5(45) |
|
vacuumKPa(mm/Hg) |
53.3(400) |
86.7(650) |
100(750) |
|
applicable temperature`C |
-15`C~ 15`C under special conditions-30~+250 |
|||
applicable media |
Air,compressed air,water ,sea water ,hot water,oil,acid ,alkali,etc. |
|||
Main connecting dimension of flexible rubber joint in pipe fitting
| nominal diameter |
length mm |
flange thickness |
quality of bolt n |
bolt hole diameter |
diameter of the central ring of the bolt |
axial displacement |
lateral displacement |
deflection angle |
||
mm |
inch |
extension |
compression |
|||||||
32 |
1.25 |
95 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15° |
40 |
1.5 |
95 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15° |
50 |
2 |
105 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15° |
65 |
2.5 |
115 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15° |
80 |
3 |
135 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15° |
100 |
4 |
150 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15° |
125 |
5 |
165 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15° |
150 |
6 |
180 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15° |
200 |
8 |
210 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15° |
250 |
10 |
230 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15° |
300 |
12 |
245 |
28 |
12 |
23 |
400 |
16 |
25 |
22 |
15° |
350 |
14 |
255 |
28 |
16 |
23 |
460 |
16 |
25 |
22 |
15° |
400 |
16 |
255 |
30 |
16 |
25 |
515 |
16 |
25 |
22 |
15° |
450 |
18 |
255 |
30 |
20 |
25 |
565 |
16 |
25 |
22 |
15° |
500 |
20 |
255 |
32 |
20 |
25 |
620 |
16 |
25 |
22 |
15° |

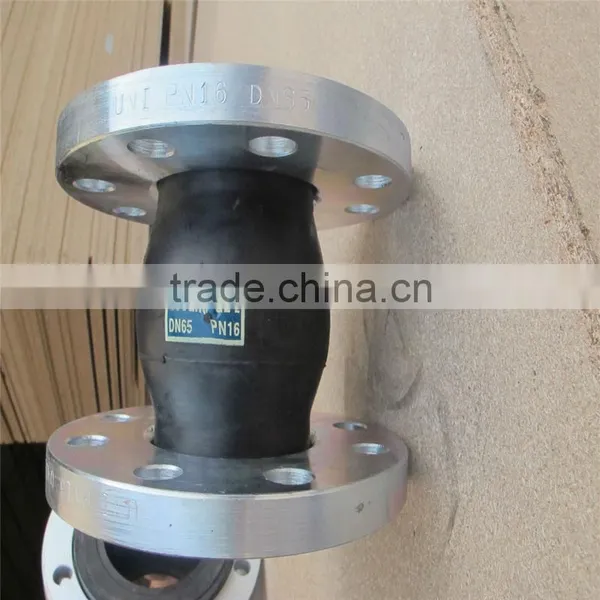

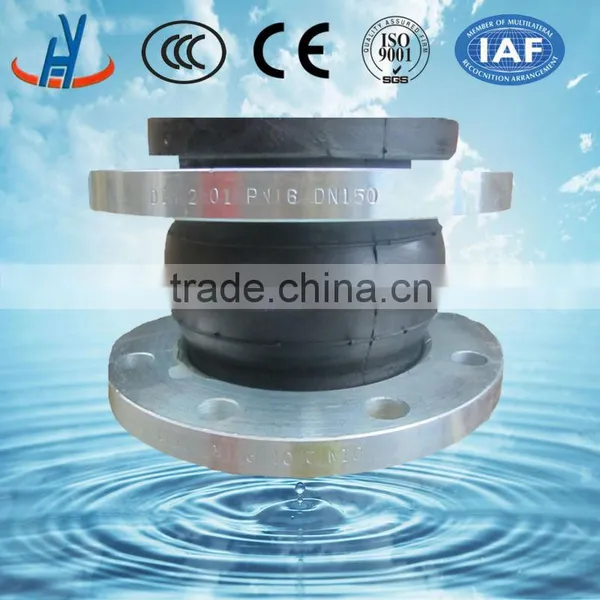

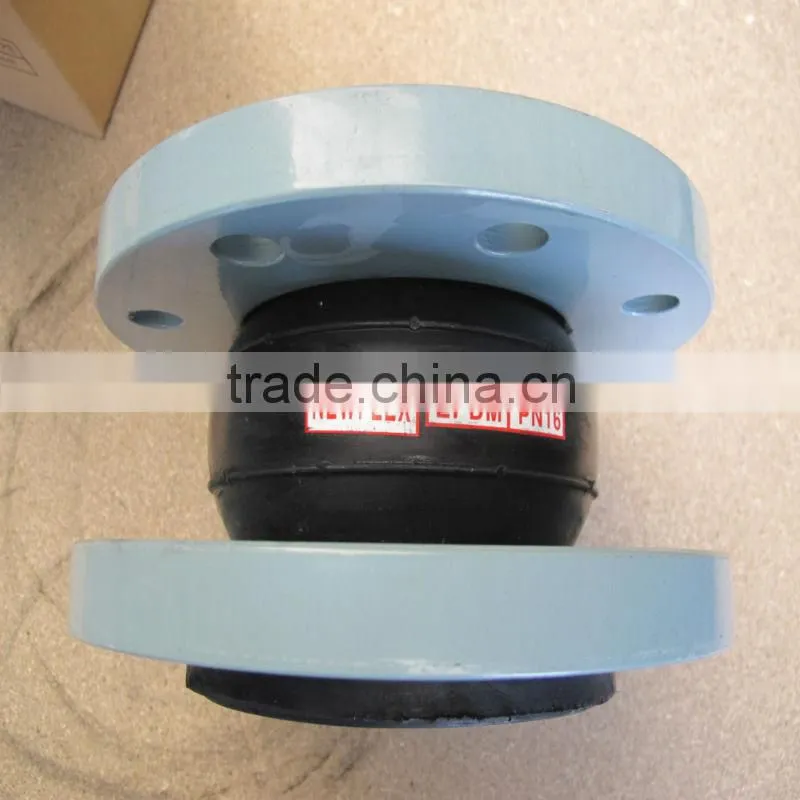

Details photos show of flexible rubber joint
Application of flexible rubber expansion joint in pipe fitting
Because the rubber joint has good comprehensive properties,
so it is widely used in chemical industry, construction, water supply, drainage, circulating water,
oil, light and heavy industry, frozen, sanitary, plumbing, electricity and other infrastructure projects. fire protection, papermaking, pharmaceutical, petrochemical, shipbuilding, water pump, compressor, fan and other piping systems.
All the cargoes under inspection before the shipment.
Conventional packing:
1.Inner package:carton case
2.Outer package :Wooden case
Shipping:
1.Lead time: about 25-30 days after order is confirmed.
2.If the order is urgent, we will try to give the best delivery time;
3.Our delivery time is accurate and fast, it is one of our advantages;
4.We cooperate with many famous logistic companies to ensure that we can ship your cargo to you on
time
5.There are many kinds of transport , depending on your situation ,you can choose the best transport .
We will send the products according to your requirements.
In addition, we can change the shape of the packaging according to customer requirements.
Gongyi Huayuan Water Supply Equirement Co.,Ltd. Profile
Why choose us:
1.20 years experience in designing and manufacturing
2. Our own patents and innovations
3. We can produce the cargos according to customers' drawings
4. ISO9000 verified
5. Better quality and competitive price
6. Min. order :1 piece for your testing
7. Reply your email within 24hours
Our service
About Samples:
1,Nomally we can make a sample to you for free,but the postage is paid by client.
2,If the sample is very special,we will charge you sample fee,which can be refunded when your order is confirmed.(order quantity need to be reached our MOQ).
3,Sampling time: about 7-10 days as usual.
Promise and service from us :
1.Competitive price
2.Reliable quality
3.Shipped the goods on time
4.Meet your special requirements
5.Rich experience
Quality Control and Customer test process
Our products have been exported to many countries such as England ,France
,America,Australia,Singapore and India etc.
and won a high admiration and is widely trusted at home and abroad. So Product quality is guaranteed.
FAQ:
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: What is your payment terms?
A: T/T(30% as despot,the rest 70% will be paid before delivery) , L/C at sight
Q: can i visit your factory before the oreder?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port ?
A: Shanghai, Qingdao or Tianjin ,China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned
or according to consumer's requests.
We provide better service and products. we are expecting to cooperate with you and would develop with you hand in hand.
