ANSI flange flexible rubber expansion joints
Good quality rubber expansion joint
Huayuan rubber joint is also called expansion joints or rubber expansion joint. It is a pipe joint of high-flexibility, high-gas tightness, resistance to medium and climate. rubber expansion joints are flexible connectors made from natural or synthetic elastomers in which special fabrics are embedded to provide physical reinforcement. rubber expansion joints provide a proven and flexible solution to accommodate many types of movements and requirements of industrial plant and equipment.
High sale rubber expansion joint
Feature :
1,Small volume, light weight, good flexibility, easy installation and maintenance
2,When installation can produce transverse and axial, angular displacement, not affected by pipeline impassability heart, thread unparallel limit
3,Work can reduce structure transfer noise, vibration absorbing ability
4,We developed the company in seamless pressure rubber joint, in high temperature resistance, acid and alkali resistant, oil resistant pipe more effectively prevent the corrosive medium to rubber joint wall erosion and improve the service life
5,Because of flexible rubber joint can be bent with good comprehensive performance, so it is widely used in chemical industry, building, water supply, drainage, oil, heavy industries, frozen, health, plumbing, fire control, electric power and other basic engineering.
Technical Conditions :
item |
type |
JGD-1 |
JGD-2 |
JGD-3 |
vacuumKPa(mm/Hg) |
53.3(400) |
86.7(650) |
100(750) |
|
applicable temperature`C |
-15`C~ 15`C under special conditions-30~+250 |
|||
applicable media |
Air,compressed air,water ,sea water ,hot water,oil,acid ,alkali,etc. |
|||
Main connecting dimension
nominal diameter |
length mm |
flange thickness |
quality of bolt n |
bolt hole diameter |
diameter of the central ring of the bolt |
axial displacement |
lateral displacement |
deflection angle |
||
mm |
inch |
extension |
compression |
|||||||
32 |
1 1/4 |
95 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15° |
40 |
1 1/2 |
95 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15° |
50 |
2 |
105 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15° |
65 |
2 1/2 |
115 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15° |
80 |
3 |
135 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15° |
100 |
4 |
150 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15° |
125 |
5 |
165 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15° |
150 |
6 |
180 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15° |
200 |
8 |
210 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15° |
250 |
10 |
230 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15° |
300 |
12 |
245 |
28 |
12 |
23 |
400 |
16 |
25 |
22 |
15° |
350 |
14 |
255 |
28 |
16 |
23 |
460 |
16 |
25 |
22 |
15° |
400 |
16 |
255 |
30 |
16 |
25 |
515 |
16 |
25 |
22 |
15° |
450 |
18 |
255 |
30 |
20 |
25 |
565 |
16 |
25 |
22 |
15° |
500 |
20 |
255 |
32 |
20 |
25 |
620 |
16 |
25 |
22 |
15° |

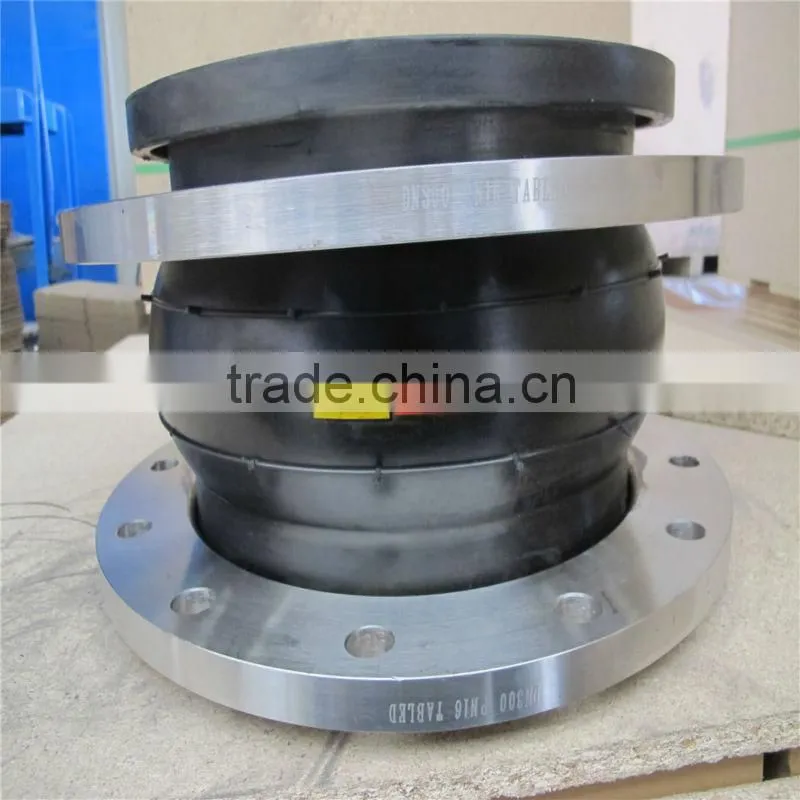

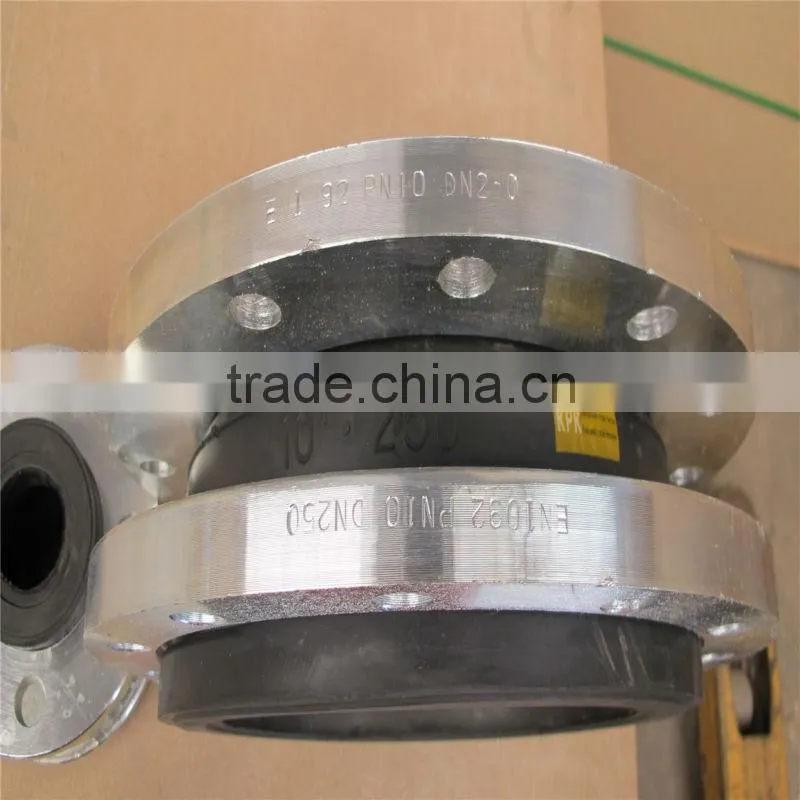

Single sphere rubber expansion joint details photos show
Rubber expansion joint packaging and shipping
Huayuan packs each flexible rubber joint with a separate carton case to prevent the crash of the flanges and rubber hoses, each case painted the name of rubber joint and other details. The carton cases then be filled to plywood cases to ship. Inside of each plywood case, Huayuan always uses moistureproof material to keep the products. And There are many modes of transportation ,you could choose suitable transport.
