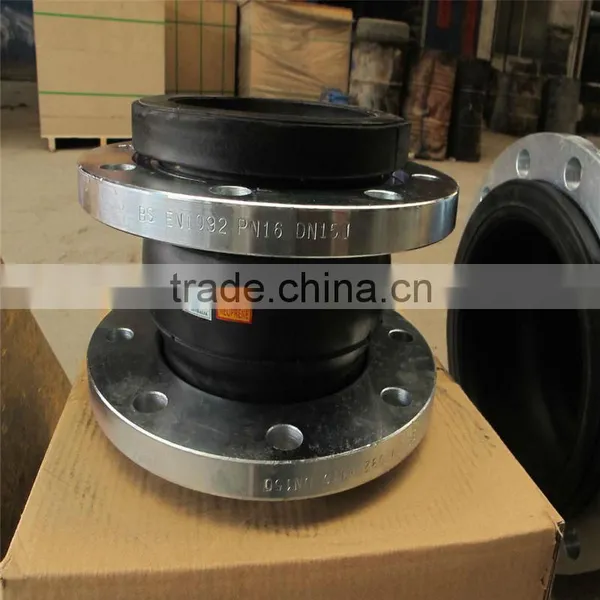

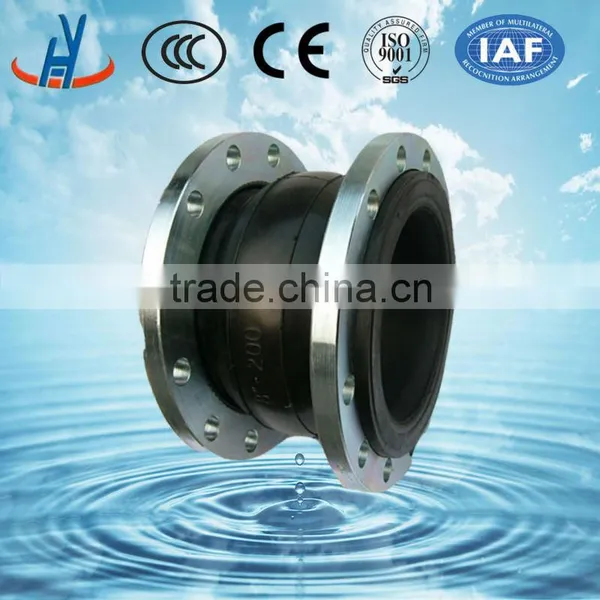

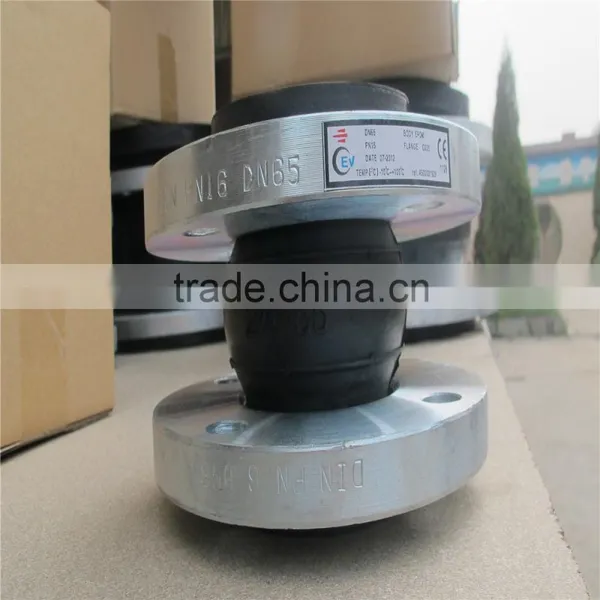

DIN standard rubber expansion joints manufacturers

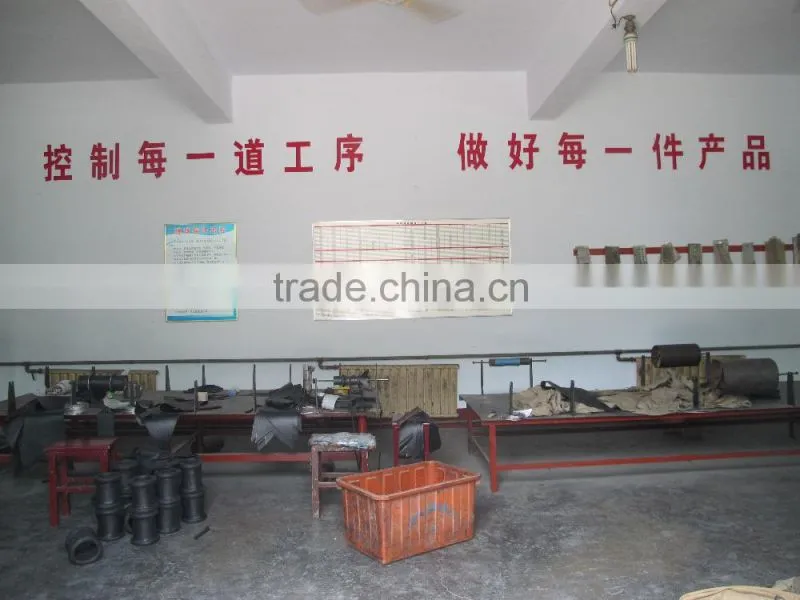

Production process:
this product use the high air tightness of rubber elastic medium resistance of weathering and radiation resistance, high strength and a little cold and heat stability of polyester cord skew and the composite by high pressure, high temperature mold vulcanization and become.
Performance characteristics are:
1 .can be bent bending double ball rubber joint small volume light weight elastic good easy installation and maintenance
2.can be bent bending double ball rubber joint installation can produce horizontal axial angular displacement, not affected by pipe impassability heart, flange unparallel limit3 can be bent bending double ball rubber joint work can reduce structure transfer noise, vibration absorbing ability and my company independent research and development in seamless high pressure rubber joint, in high-temperature resistance to acid and alkali resistant to oil pipeline more effectively prevent the corrosive medium for rubber joint wall erosion and improve the service life
Application medium:
Air,compressed air,water,sea water,hot water,oil,acid,alkali,etc.
Purpose:
and pump valve connection fire fighting equipment, vibration large pipe cold and hot change frequent pipeline
Advantages:
high quality rubber joint recommend quotient lead to reduce vibration noise retractility, easy to use
Installation instructions:
rubber joint pipeline construction, must let it in a state of nature, not the human when installing the product produce human deformation when pipeline medium for acid and alkali resistant oil temperature and other special material should choose higher than pipe work pressure a gear of the joint
Technical Conditions :
item |
type |
JGD-1 |
JGD-2 |
JGD-3 |
vacuumKPa(mm/Hg) |
53.3(400) |
86.7(650) |
100(750) |
|
applicable temperature`C |
-15`C~ 15`C under special conditions-30~+250 |
|||
applicable media |
Air,compressed air,water ,sea water ,hot water,oil,acid ,alkali,etc. |
|||
main connecting dimension
nominal diameter |
length mm |
flange thickness |
quality of bolt n |
bolt hole diameter |
diameter of the central ring of the bolt |
axial displacement |
lateral displacement |
deflection angle |
||
mm |
inch |
extension |
compression |
|||||||
32 |
1 1/4 |
95 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15° |
40 |
1 1/2 |
95 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15° |
50 |
2 |
105 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15° |
65 |
2 1/2 |
115 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15° |
80 |
3 |
135 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15° |
100 |
4 |
150 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15° |
125 |
5 |
165 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15° |
150 |
6 |
180 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15° |
200 |
8 |
210 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15° |
250 |
10 |
230 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15° |
300 |
12 |
245 |
28 |
12 |
23 |
400 |
16 |
25 |
22 |
15° |
350 |
14 |
255 |
28 |
16 |
23 |
460 |
16 |
25 |
22 |
15° |
400 |
16 |
255 |
30 |
16 |
25 |
515 |
16 |
25 |
22 |
15° |
450 |
18 |
255 |
30 |
20 |
25 |
565 |
16 |
25 |
22 |
15° |
500 |
20 |
255 |
32 |
20 |
25 |
620 |
16 |
25 |
22 |
15° |
Rubber expansion joint is assembled with rubber hose and retaining ring flanges, and the rubber hose could be easiely damaged in delivery.
So Huayuan packs each flexible rubber joint with a separate carton case to prevent the crash of the flanges and rubber hoses, each case painted the name of rubber joint and other details.The carton cases then be filled to plywood cases to ship. Inside of each plywood case, Huayuan always uses moistureproof material to keep the products
Shipping:
1.Lead time: about 25-30 days after order is confirmed.
2.If the order is urgent, we will try to give the best delivery time;
3.Our delivery time is accurate and fast, it is one of our advantages;
4.We cooperate with many famous logistic companies to ensure that we can ship your cargo to you on time.
About Samples:
1,Nomally we can make a sample to you for free,but the postage is paid by client.
2,If the sample is very special,we will charge you sample fee,which can be refunded when your order is confirmed.(order quantity need to be reached our MOQ).
3,Sampling time: about 7-10 days as usual.
Payment terms:
1,We can accept T/T,West Union etc.
2,Standard payment term: 30% deposit by T/T,and the balance should be paid before delivery.
*Our company is specialized in water supply and drainage equipment,pipe and parts.
At present,our products have over 30 types such as JGD flexible synthetic single sphere and
double sphere rubber expansion joint,thread joint, unequal diameter,DN15-DN3000 and so on.
Completed types,high quality and lower price make its products ideal for water supply and drainage,
heating pipe and building field.
* Our products have been exported to many countries such as England ,France,America,Australia,Singapore and India etc.
and won a high admiration and is widely trusted at home and abroad. So Product quality is guaranteed.
*We are desirable to cooperate sincerely with friends from all walks of life with our quality products and complete servise.All visitors with lofty
ideals and perspectives are welcome to our company to take much economic and technical cooperation for our common development and
prosperity.
Looking forward to cooperate with you.
FAQ:
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: What is your payment terms?
A: T/T(30% as despot,the rest 70% will be paid before delivery) , L/C at sight
Q: can i visit your factory before the oreder?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port ?
A: Shanghai, Qingdao or Tianjin ,China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned
or according to consumer's requests.
Q:Do you accepted small quantity order?
A: Of course we do.
Q:Can we choose different material?
A: Yes ,the material can be chose according to your requirement.
Q:And What's your shipment and delivery time?
A:By sea or air.Normally 7~14 Days for delivery ,according to your order quantity.
Q:And what's your packing?
A: carton cases inside ,export wooden cases outside
