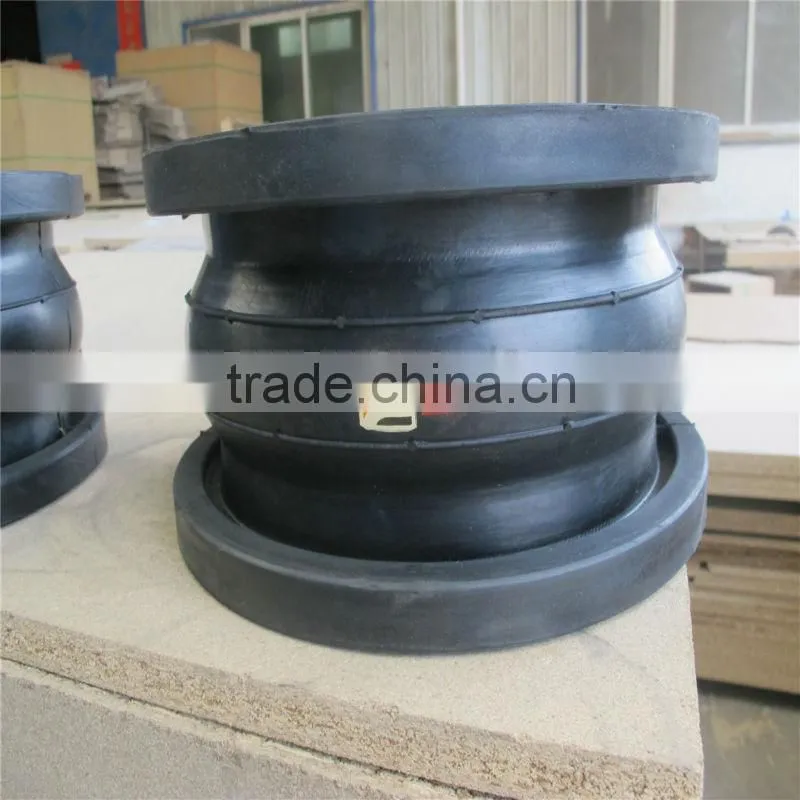

PN16 Single Sphere spherical Rubber Expansion Joint
Good sale single sphere rubber expansion joint
Gongyi Huayuan rubber joint is also called expansion joints or rubber expansion joint. It is a pipe joint of high-flexibility, high-
gas tightness, resistance to medium and climate. rubber expansion joints are
flexible connectors made from natural or synthetic elastomers in which special
fabrics are embedded to provide physical reinforcement. rubber expansion
joints provide a proven and flexible solution to accommodate many types of
movements and requirements of industrial plant and equipment.
High quality single sphere rubber expansion joint
Production process: this product use the high air tightness of rubber elastic medium resistance of weathering and radiation resistance, high strength and a little cold and heat stability of polyester cord skew and the composite by high pressure, high temperature mold vulcanization and become.
Main connecting dimension of rubber expansion joint
Nominal Diameter |
length mm |
Flange thickness mm |
the quality of bolt n |
Bolt hole diameter
mm
|
Diameter of the central ring of the bolt
mm
|
Axial displacement |
Horizontal displacement |
Deflection angle |
||
mm |
Inch |
Extension |
compression |
|||||||
32 |
1.25 |
95 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15° |
40 |
1.5 |
95 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15° |
50 |
2 |
105 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15° |
65 |
2.5 |
115 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15° |
80 |
3 |
135 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15° |
100 |
4 |
150 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15° |
125 |
5 |
165 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15° |
150 |
6 |
180 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15° |
200 |
8 |
210 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15° |
250 |
10 |
230 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15° |

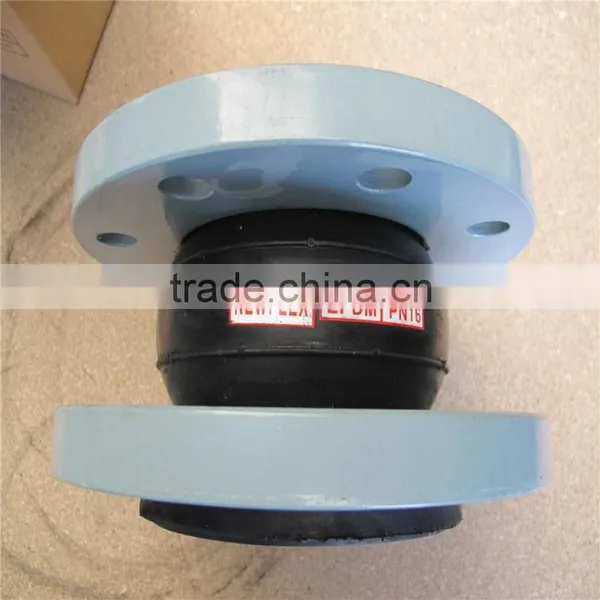

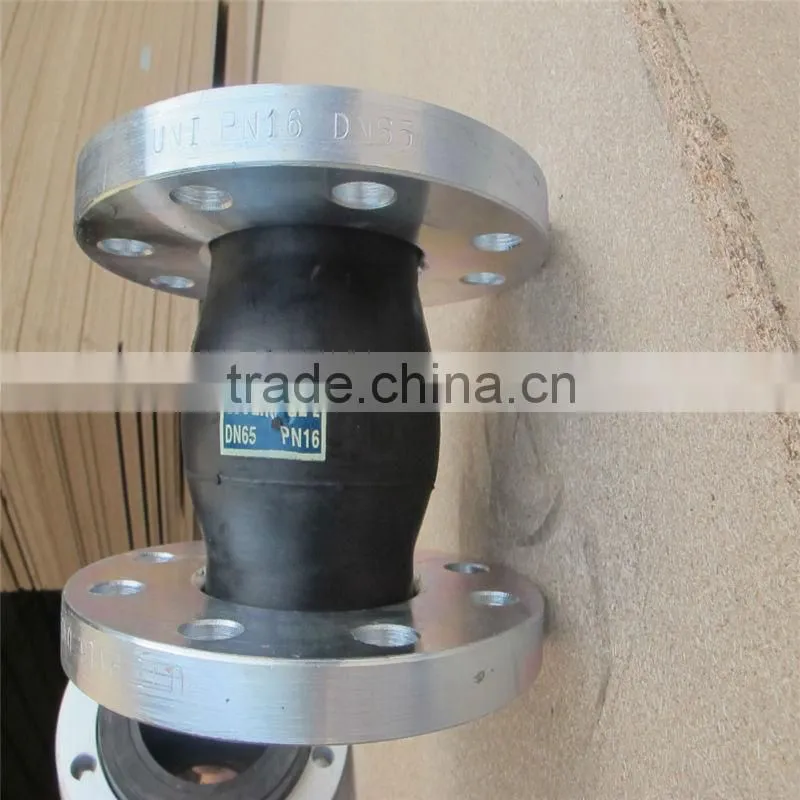

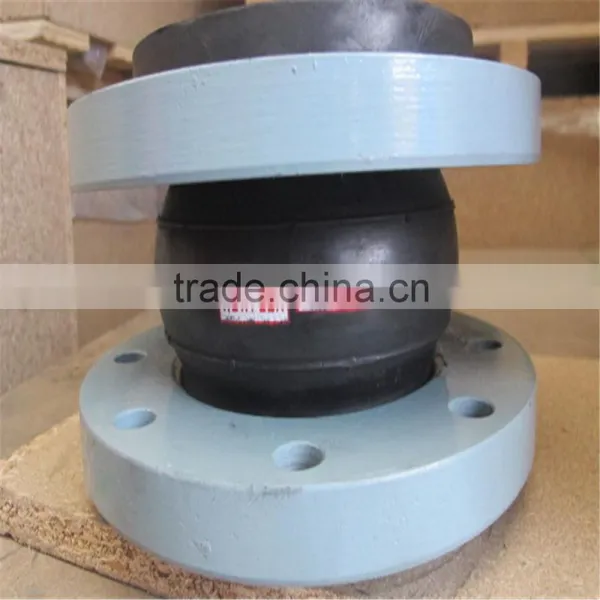

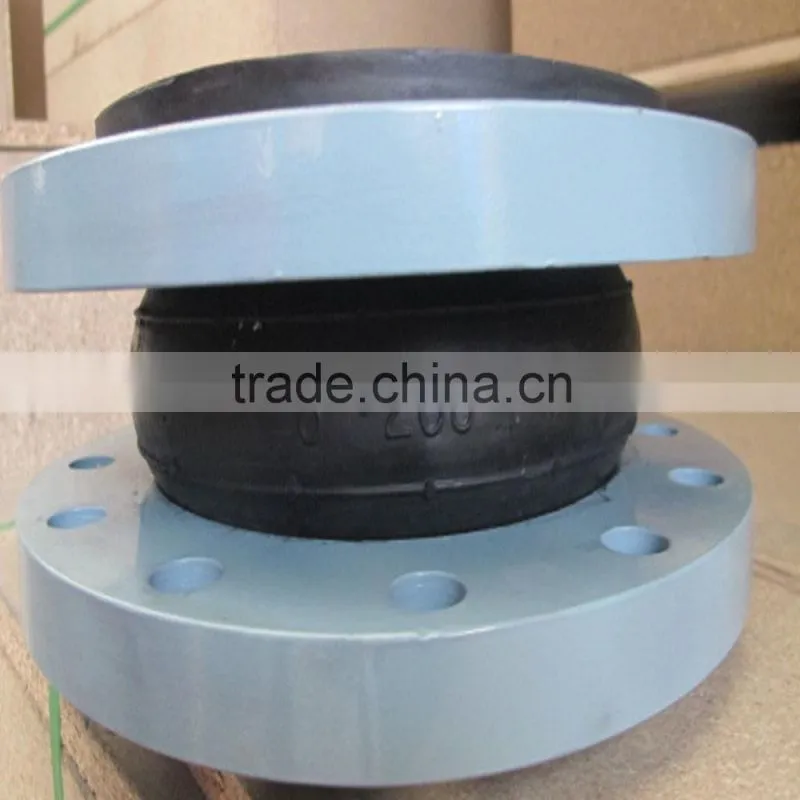

Single Sphere rubber expansion joint photos show
Performance characteristics are: 1 can be bent bending double ball rubber joint small volume light weight elastic good easy installation and maintenance and can be bent bending double ball rubber joint installation can produce horizontal axial angular displacement, not affected by pipe impassability heart, flange unparallel limit 3 can be bent bending double ball rubber joint work can reduce structure transfer noise, vibration absorbing ability and my company independent research and development in seamless high pressure rubber joint, in high-temperature resistance to acid and alkali resistant to oil pipeline more effectively prevent the corrosive medium for rubber joint wall erosion and improve the service life

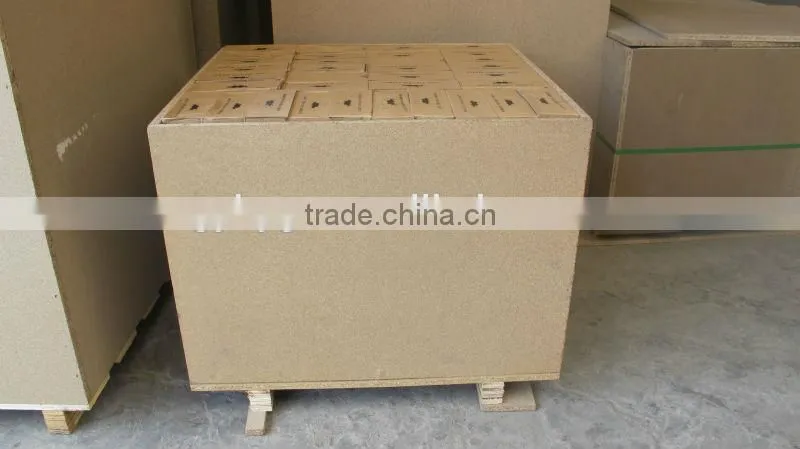

Gongyi Huayuan all the cargoes under inspection before the shipment.For the tube fitting ,we use carton case of Inner package .And we use wooden case of Outer package .For shipping:Our lead time is about 25-30 days after order
is confirmed.And If the order is urgent, we will try to give the best delivery
time;Besides our delivery time is accurate and fast,it is one of our advantages;
And we cooperate with many famous logistic companies to ensure that we
can ship your cargo to you on time,Last there are many kinds of transport ,
depending on your situation ,you can choose the best transport . We will send the products according to your requirements.
In addition, we can change the shape of the packaging according to customer requirements.
Gongyi Huayuan Water Supply Equirement Co.,Ltd. Profile
Why Us?
Gongyi Huayuan Water supply Equirement Co.,Ltd. is a leading manufacturer of rubber flexible joint in china, we have:
(1)Strict Quality Control System
(2)Perfect Test System
(3)Strong R&D strength
(4)Professional After-sale Service Team
(5)Rich Experience
(6)Products have been exported to many countries,and won a high admiration and is widely trusted at home and abroad.
About Samples:
1,Nomally we can make a sample to you for free,but the postage is paid by client.
2,If the sample is very special,we will charge you sample fee,which can be refunded when your order is confirmed.(order quantity need to be reached our MOQ).
3,Sampling time: about 7-10 days as usual.
Payment terms:
1,We can accept T/T,West Union etc.
2,Standard payment term: 30% deposit by T/T,and the balance should be paid before delivery.
Quality Control
Customer test process
FAQ:
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: What is your payment terms?
A: T/T(30% as despot,the rest 70% will be paid before delivery) , L/C at sight
Q: can i visit your factory before the oreder?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port ?
A: Shanghai, Qingdao or Tianjin ,China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned
or according to consumer's requests.
Q:Do you accepted small quantity order?
A: Of course we do.
Q:Can we choose different material?
A: Yes ,the material can be chose according to your requirement.
More Details ,Please contact us!
