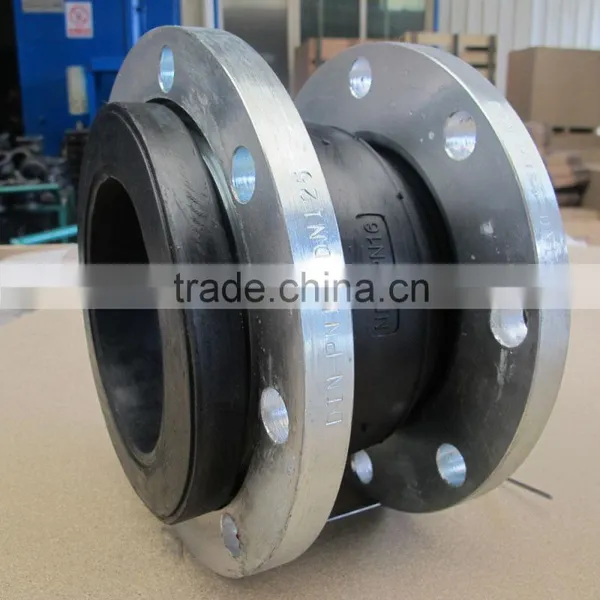

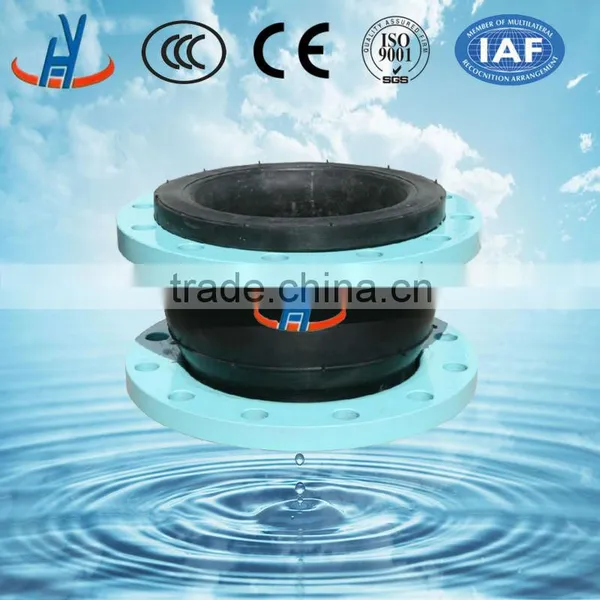

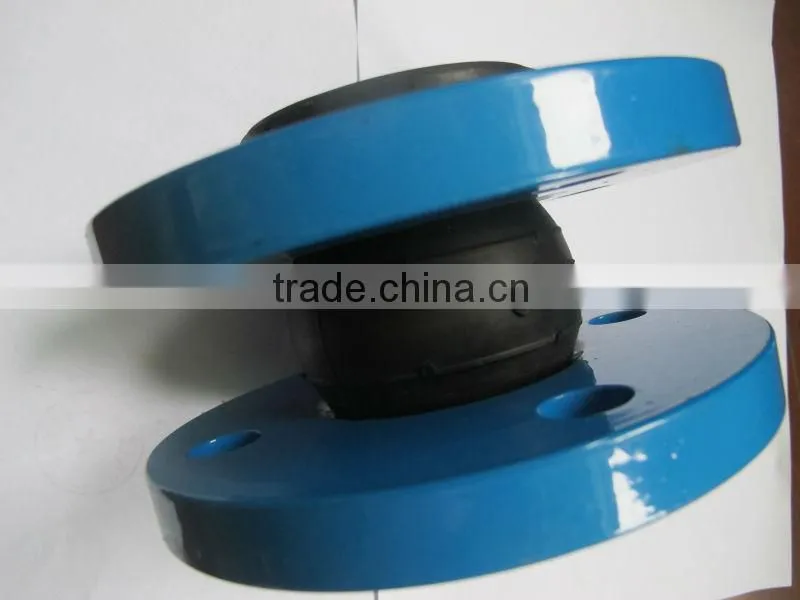

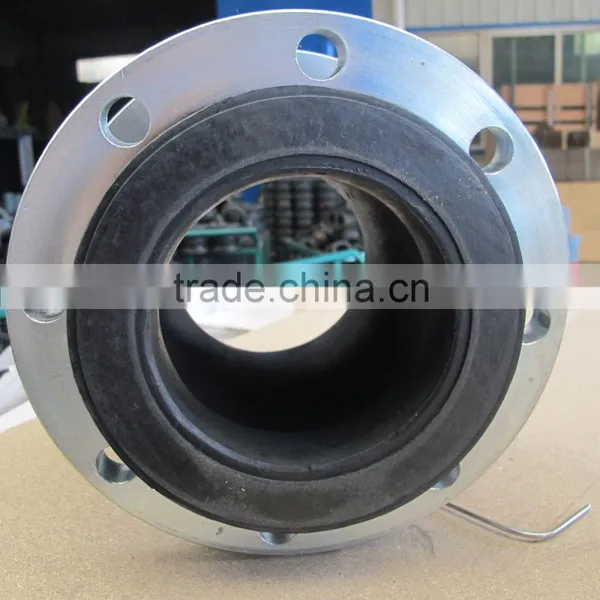

epdm single sphere expansion joint flange type
Rubber expansion joints are flexible connectors made from natural or synthetic elastomers in which special fabrics are embedded to provide physical reinforcement. rubber expansion joints provide a proven and flexible solution to accommodate many types of movements and requirements of industrial plant and equipment.
These include:
Accommodating for pressure loads.
Neutral axial, lateral and angular stress.
Reducing noise.
Isolating sources of vibration.
Compensating for misalignment at plant start up.
Prolonging the life of motive equipment.
They are used in all systems transporting fluids, slurries or gases under pressure, at ambient pressure or under vacuum over a wide range of temperatures.
Application areas are:
Air conditioning, heating and ventilating systems in industrial buildings, hospitals, hotels and on board ships.
Central and ancillary power generating stations in industrial buildings, factories, ships and off-shore.
Sewage disposal and water treatment plant, pumps, etc.
Process piping in pulp and paper manufacture.
Features:
1.Small volume,light flexible ,easy to install and maintain
2.It reduces structural noise transmission with strong shock absorption in servive.
3.It is capable of horizontal,axial and angular displacement with the restruction and flange non-parallelism.
4.The inner seamless high-pressure rubber joint independently developed by us prevents corrosive medium from etching the inner wall of the rubber joint in high temperature ,acid and alkali and oil resistant pipeline,thereby extending its service life .
Technical conditions
| item | type |
JGD-1 |
JGD-2 |
JGD-3 |
working pressureMPa(kgf/cm2 ) |
1.010) |
1.6(16) |
2.5(25) |
|
burst pressureMPa(kgf/cm2 ) |
2.0(20) |
3.0(30) |
4.5(45) |
|
vacuumKPa(mm/Hg) |
53.3(400) |
86.7(650) |
100(750) |
|
applicable temperature`C |
-15`C~ 15`C under special conditions-30~+250 |
|||
applicable media |
Air,compressed air,water ,sea water ,hot water,oil,acid ,alkali,etc. |
|||
main connecting dimension
| nominal diameter |
length mm |
flange thickness |
quality of bolt n |
bolt hole diameter |
diameter of the central ring of the bolt |
axial displacement |
lateral displacement |
deflection angle |
||
mm |
inch |
extension |
compression |
|||||||
32 |
1.25 |
95 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15° |
40 |
1.5 |
95 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15° |
50 |
2 |
105 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15° |
65 |
2.5 |
115 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15° |
80 |
3 |
135 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15° |
100 |
4 |
150 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15° |
125 |
5 |
165 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15° |
150 |
6 |
180 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15° |
200 |
8 |
210 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15° |
250 |
10 |
230 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15° |
300 |
12 |
245 |
28 |
12 |
23 |
400 |
16 |
25 |
22 |
15° |
350 |
14 |
255 |
28 |
16 |
23 |
460 |
16 |
25 |
22 |
15° |
400 |
16 |
255 |
30 |
16 |
25 |
515 |
16 |
25 |
22 |
15° |
450 |
18 |
255 |
30 |
20 |
25 |
565 |
16 |
25 |
22 |
15° |
500 |
20 |
255 |
32 |
20 |
25 |
620 |
16 |
25 |
22 |
15° |
