China manufacturer butyl rubber joint
Hot sale butyl rubber joint
Gongyi Huayuan rubber joint is also called expansion joints or rubber expansion joint. It is a pipe joint of high-flexibility, high-
gas tightness, resistance to medium and climate. rubber expansion joints are
flexible connectors made from natural or synthetic elastomers in which special
fabrics are embedded to provide physical reinforcement. rubber expansion
joints provide a proven and flexible solution to accommodate many types of
movements and requirements of industrial plant and equipment.
Good Quality butyl rubber joint
Features of butyl rubber joint
1. the joint could primarily reduce the vibration and the noise of the piping pletely solve the different piping problems as dispalcement of joint,axial flex and etc.
2. According to different material requirment ,product could be made as acid proof,alkali proof,corrosion proof to suit different medium and enviroment
Technical conditions of butyl rubber joint
| item | type |
JGD-1 |
JGD-2 |
JGD-3 |
working pressureMPa(kgf/cm2 ) |
1.010) |
1.6(16) |
2.5(25) |
|
burst pressureMPa(kgf/cm2 ) |
2.0(20) |
3.0(30) |
4.5(45) |
|
vacuumKPa(mm/Hg) |
53.3(400) |
86.7(650) |
100(750) |
|
applicable temperature`C |
-15`C~ 15`C under special conditions-30~+250 |
|||
applicable media |
Air,compressed air,water ,sea water ,hot water,oil,acid ,alkali,etc. |
|||
Main connecting dimension of butyl rubber joint
| nominal diameter |
length mm |
flange thickness |
quality of bolt n |
bolt hole diameter |
diameter of the central ring of the bolt |
axial displacement |
lateral displacement |
deflection angle |
||
mm |
inch |
extension |
compression |
|||||||
32 |
1.25 |
95/130/150 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15° |
40 |
1.5 |
95/130/150 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15° |
50 |
2 |
105/130/150 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15° |
65 |
2.5 |
115/130/150 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15° |
80 |
3 |
135/130/150 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15° |
100 |
4 |
150/130/150 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15° |
125 |
5 |
165/130/150 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15° |
150 |
6 |
180/130/150 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15° |
200 |
8 |
210/130/150 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15° |
250 |
10 |
130/200/230 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15° |
300 |
12 |
130/200/245 |
28 |
12 |
23 |
400 |
16 |
25 |
22 |
15° |
350 |
14 |
200/255 |
28 |
16 |
23 |
460 |
16 |
25 |
22 |
15° |
400 |
16 |
200/255 |
30 |
16 |
25 |
515 |
16 |
25 |
22 |
15° |
450 |
18 |
200/255 |
30 |
20 |
25 |
565 |
16 |
25 |
22 |
15° |
500 |
20 |
200/255 |
32 |
20 |
25 |
620 |
16 |
25 |
22 |
15° |

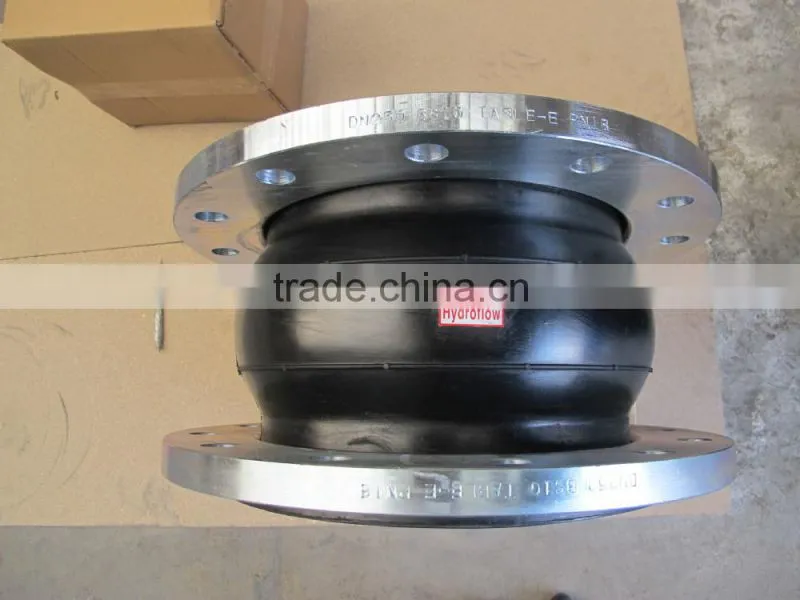

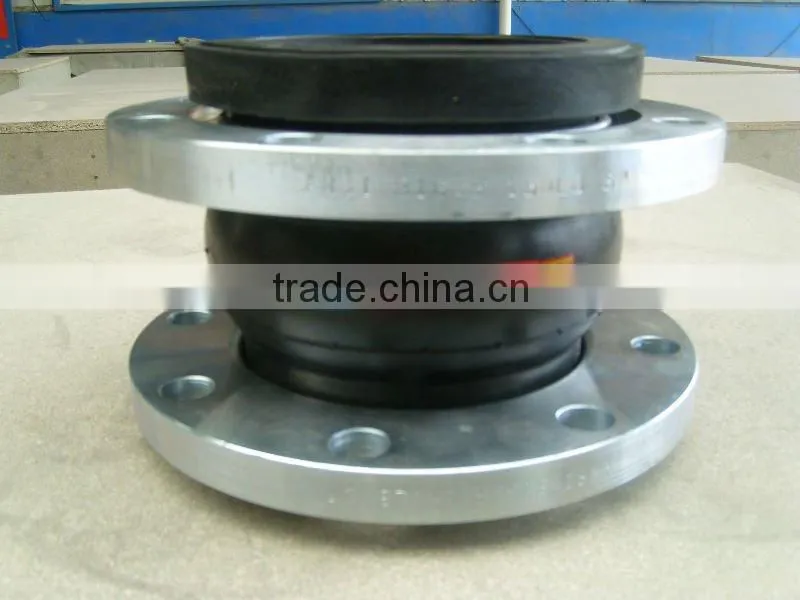

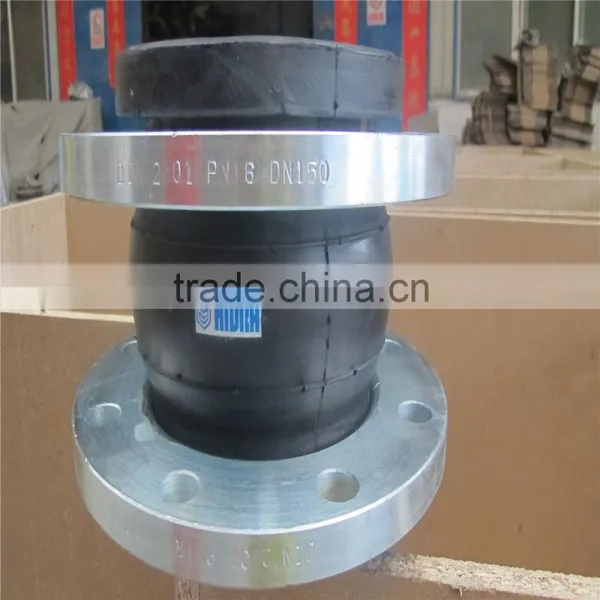

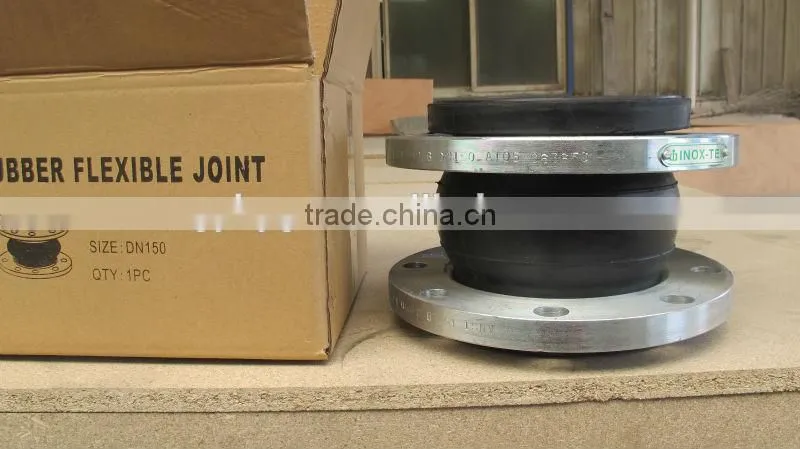

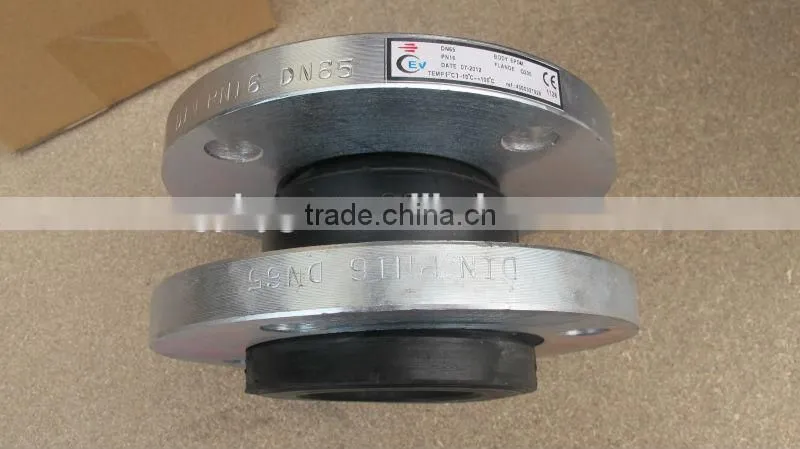

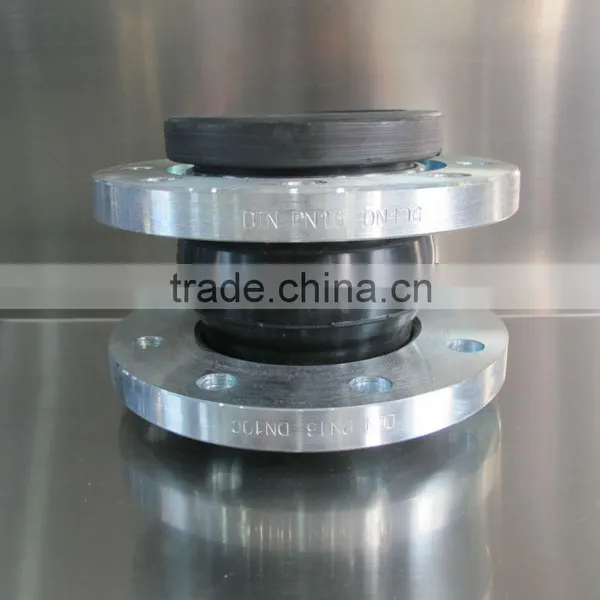

Details photos of butyl rubber joint
Application Range of butyl rubber joint
Equipped with the excellent comprehensive performances of rubber flexible joint, the product can be used for lift and transportation of raw water and sewarubberge, transportation of water supply, cooling cycle water of thermal power plant, condensate water of metallurgy industry and chemical materials of chemical industries, cooling and dilution of oil and chemical industries and flexible connection of other industries. It is also suitable to transport all grain and powder material and gas for its high abrasive resistance.
Advantage of butyl rubber joint
high quality rubber joint recommend quotient lead to reduce vibration noise retractility, easy to use
Gongyi Huayuan all the cargoes under inspection before the shipment.For the tube fitting ,we use carton case of Inner package .And we use wooden case of Outer package .For shipping:Our lead time is about 25-30 days after order
is confirmed.And If the order is urgent, we will try to give the best delivery
time;Besides our delivery time is accurate and fast,it is one of our advantages;
And we cooperate with many famous logistic companies to ensure that we
can ship your cargo to you on time,Last there are many kinds of transport ,
depending on your situation ,you can choose the best transport . We will send the products according to your requirements.
Gongyi Huayuan Water Supply Equirement Co.,Ltd. Profile
Why Us?
Gongyi Huayuan Water supply Equirement Co.,Ltd. is a leading manufacturer of rubber flexible joint in china, we have:
(1)Strict Quality Control System
(2)Perfect Test System
(3)Strong R&D strength
(4)Professional After-sale Service Team
(5)Rich Experience
(6)Products have been exported to many countries,and won a high admiration and is widely trusted at home and abroad.
Our service
1.Competitive price
2.Reliable quality
3.Shipped the goods on time
4.Meet your special requirements
About Samples:
1,Nomally we can make a sample to you for free,but the postage is paid by client.
2,If the sample is very special,we will charge you sample fee,which can be refunded when your order is confirmed.(order quantity need to be reached our MOQ).
3,Sampling time: about 7-10 days as usual.
Quality Control and Customer test process
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: What is your payment terms?
A: T/T(30% as despot,the rest 70% will be paid before delivery) , L/C at sight
Q: can i visit your factory before the oreder?
A: Yes, welcome to our factory to check the quality.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned
or according to consumer's requests.
Q:Can we choose different material?
A: Yes ,the material can be chose according to your requirement.
