Help CenterC5232 Conventional Dobule Column Vertical Lathe Machine for Sale
Related Products
-
VT125 High Class Single Column Cnc Vertical Lathe for SaleUS$ 110,733 - 143,773MOQ: 1 Set -
LCK6070 High Speed Cnc Vertical Turning Lathe Machine Most PopularUS$ 76,774 - 77,000MOQ: 1 Set
-
C5112 CE Conventional Vertical Lathe Machine Single ColumnUS$ 35,000 - 40,100MOQ: 1 Set
-
CK5112 CE Single Column Cnc Vertical Lathe Machine for SaleUS$ 61,000 - 63,000MOQ: 1 Set
-
C5225 Conventional Dobule Column Vertical Lathe MachineUS$ 95,000 - 105,000MOQ: 1 Set

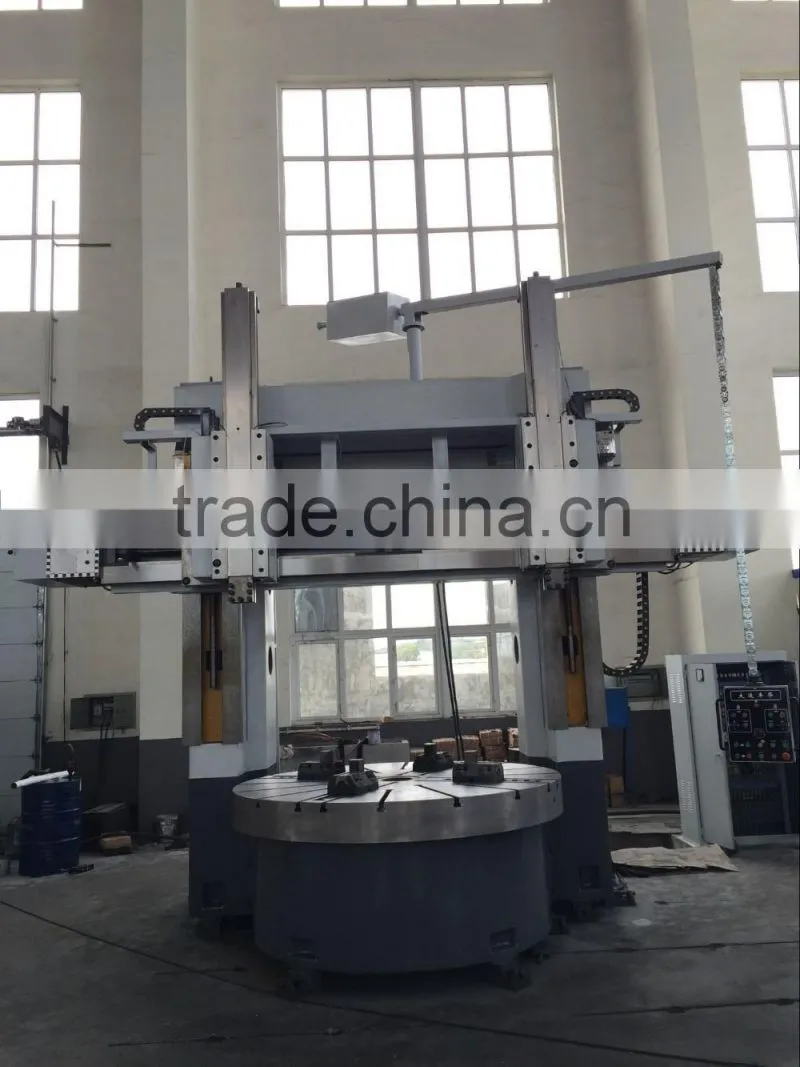

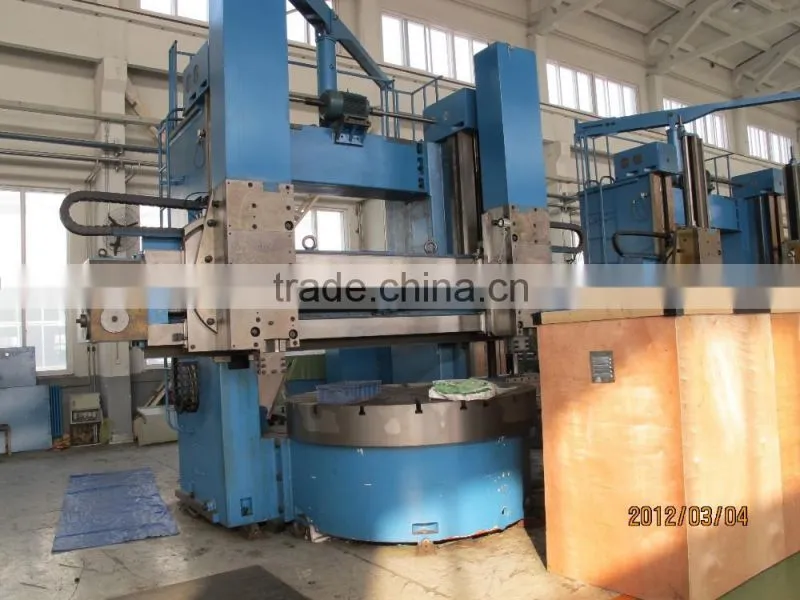

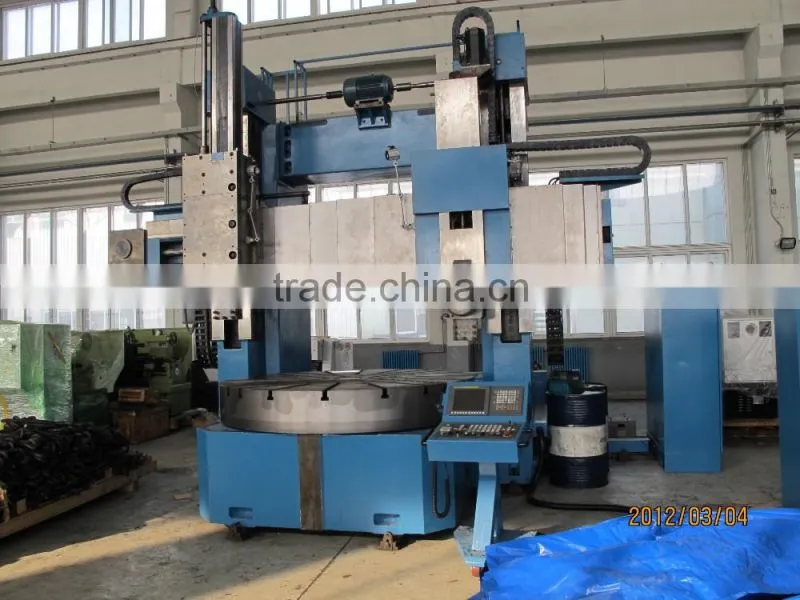

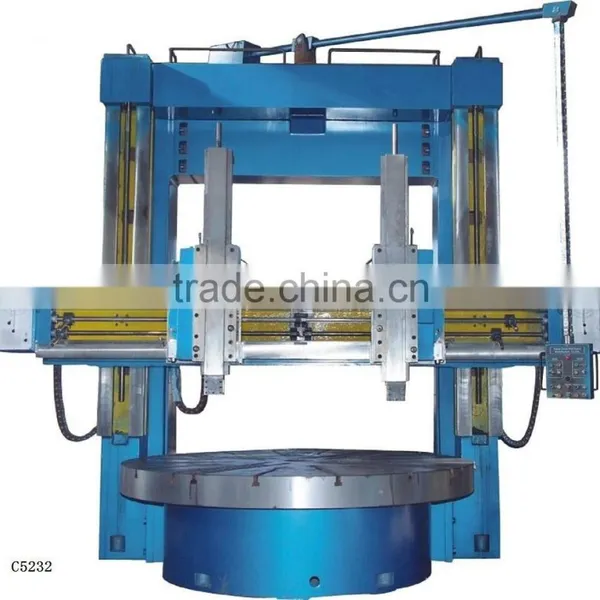

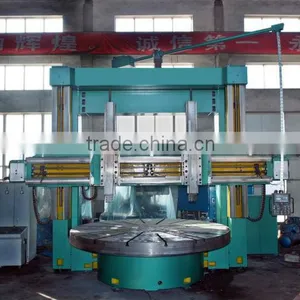

C5232 conventional double column vertical lathe
1.I.D. & O.D. cylindrical turning,
2. end-facing,
3. I.D. & O.D. cone turning,
4. grooving,
5. boring, drilling, reaming, etc.
Such double column vertical lathe has following features:
1. double column vertical lathe;
2. with DRO and CE Certificate;
3. such vertical lathe is suitable for turning the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools.
4.Main bodies of the machine are made of high rigid resin sand castings with thermal aging treatment. Steel parts are thermal refined.
5.The machine adopts a stable rigid structure and consists mainly of base, table, column, cross rail, tool head, hydraulic system and electric system. Cross rail moves up and down along guideways of the column.
Specifications |
Unit |
Parameter |
Max. turning diameter |
mm |
3150 |
Max. working height |
mm |
Standard:2000 optional: 2500/3000mm |
Max. weight of workpiece |
T |
10/30 |
Table diameter |
mm |
2830 |
Speed range of table |
r/min |
2~63 |
Speed-step of table |
|
16 |
Max. torque of table |
N.m |
63000 |
Max. cutting resistance of right tool post |
KN |
40 |
Max. cutting resistance of left tool post |
KN |
35 |
Travel of tool post (Horizontal) |
mm |
1735 |
Travel of tool post (Vertical) |
mm |
1000/1300/1500 |
Feed range and speed-step of tool post |
mm/min |
0.24~145 18 steps |
Rapid traveling speed of tool post |
mm/min |
1550 |
Crossbeam fluctuation travel |
mm |
1750/2250 |
Crossbeam fluctuation speed |
mm/min |
350 |
Moving degrees limit of tool post |
|
±30° |
Table guide |
|
hydrostatic |
Cutting section of ram |
mm |
200×255 |
Cutting section of the tool bar |
mm |
40×50 |
Crossbeam fluctuation motor power (AC) |
KW |
7.5 |
Cutting feed two-speed motor power of left feeding-box (AC) |
KW |
1.3/1.8 |
Fast motor power |
KW |
2.2 |
Power of main motor (AC) |
KW |
55 |
Weight of machine |
T |
36/45 |
kinds of colors for your choice/can be customized
