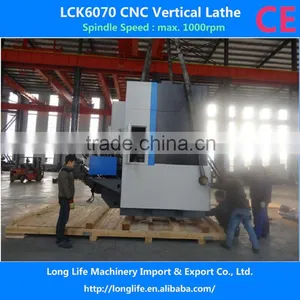

LCK6070 High Speed Cnc Vertical Turning Lathe Machine Most Popular

US$ 76,774 - 77,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

CNC or Not:

CNC

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 780mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number LCK6070 high speed cnc vertical lathe machine

Voltage 220V/380V/415V/440V/480V

Power(W) 26/22 kW

Dimension(L*W*H) 3640x2510x3438mm

Weight 12 tons

Certification CE; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

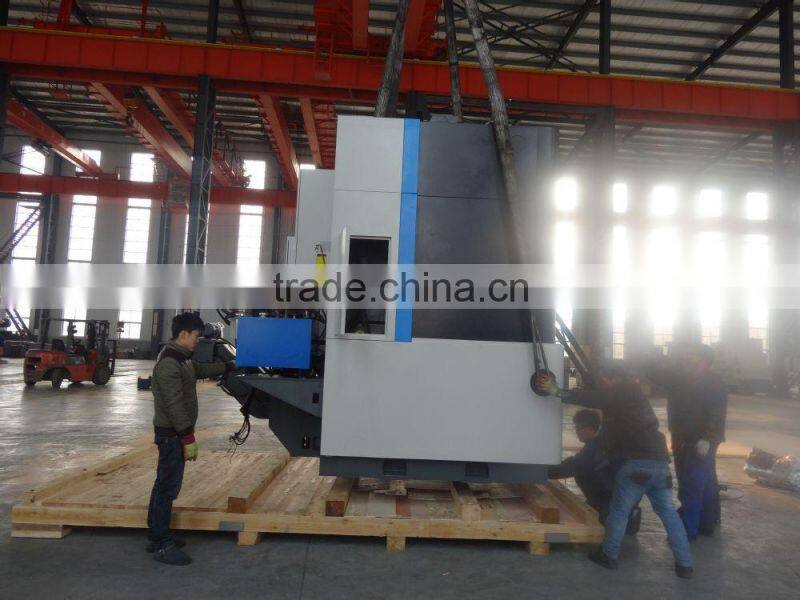

LCK6070 high speed cnc vertical turning lathe machine

Main Features

Such high speed cnc vertical turning lathe has following features:

1. This machine is mainly suitable to machine such auto parts as drum brake, hub, decelerator and so on,

2. also it can be used for soft turning and hard turning for bearings to replace grinding.

3. It is easy to install kinds of special-purpose clamps for complex shell-parts and abnormal parts.

4. Kinds of CNC controllers for your choice, such as Fanuc, Siemens and so on.

Main Technical Data

LCK6070 high speed cnc vertical turning lathe's technical data

Specifications	Unit	Parameter
Max. swing diameter	mm	780
Max. turning height	mm	700
Max. table diameter	mm	600
Max. weight of workpiece	t	3.2
Spindle nose		A2-11
Spindle speed	rpm	50~1000
Max. output torque of spindle	Nm	840(high-rigidity)
Main motor power(30/min continuous)	kW	26/22(FANUC)
Chuck	mm	Φ510
Rapid transverse speed of X-axis	m/min	Rolling guide 10
Rapid transverse speed of Z-axis	m/min	Rolling guide 15
Travel of X-axis	mm	620
Travel of Z-axis	mm	700
Turret		Vertical 6-position
Cutter size	mm	Excircle cutter 32x32 Boring cutter arbor dia. Φ50,Φ40,Φ32
Whether to use cutter nearby		yes
Machine weight	kgs	12000
Machine size	mm	3640×2510×3438

Accuracy

No	Item	National Standard	Actual by factory
1	Roundness of workpiece	0.007/Ø120	0.005/Ø120
2	Cylindricity of workpiece	0.012/Ø120×150	0.010/Ø120×150
3	Flatness of workpiece	0.03/Ø500	0.02/Ø500
4	Positioning accuracy X-axis	0.035	0.018
5	Positioning accuracy Z-axis	0.040	0.020
6	Repeated positioning accuracy X-axis	0.0075	0.006
7	Repeated positioning accuracy Z-axis	0.015	0.008
8	Machining accuracy	IT6-IT7	IT6-IT7
9	Roughness of workpiece	Ra1.6μm	Ra1.6μm
