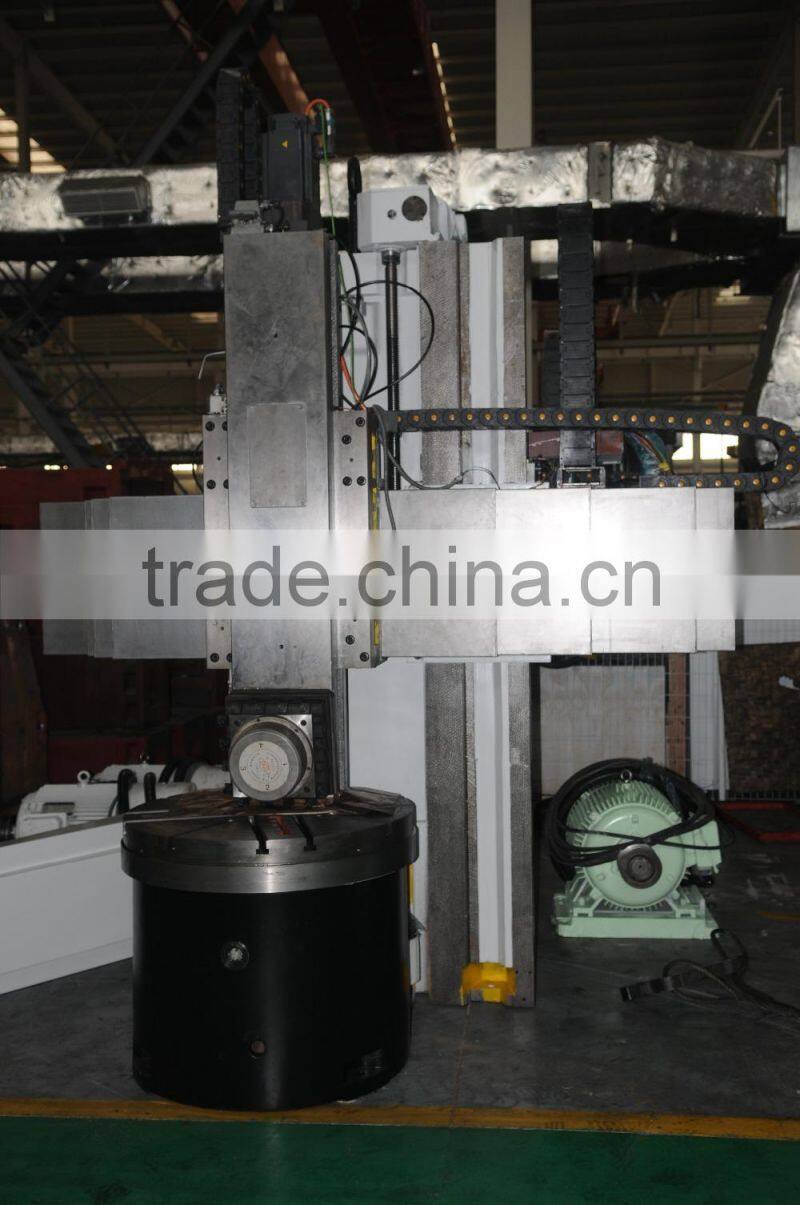

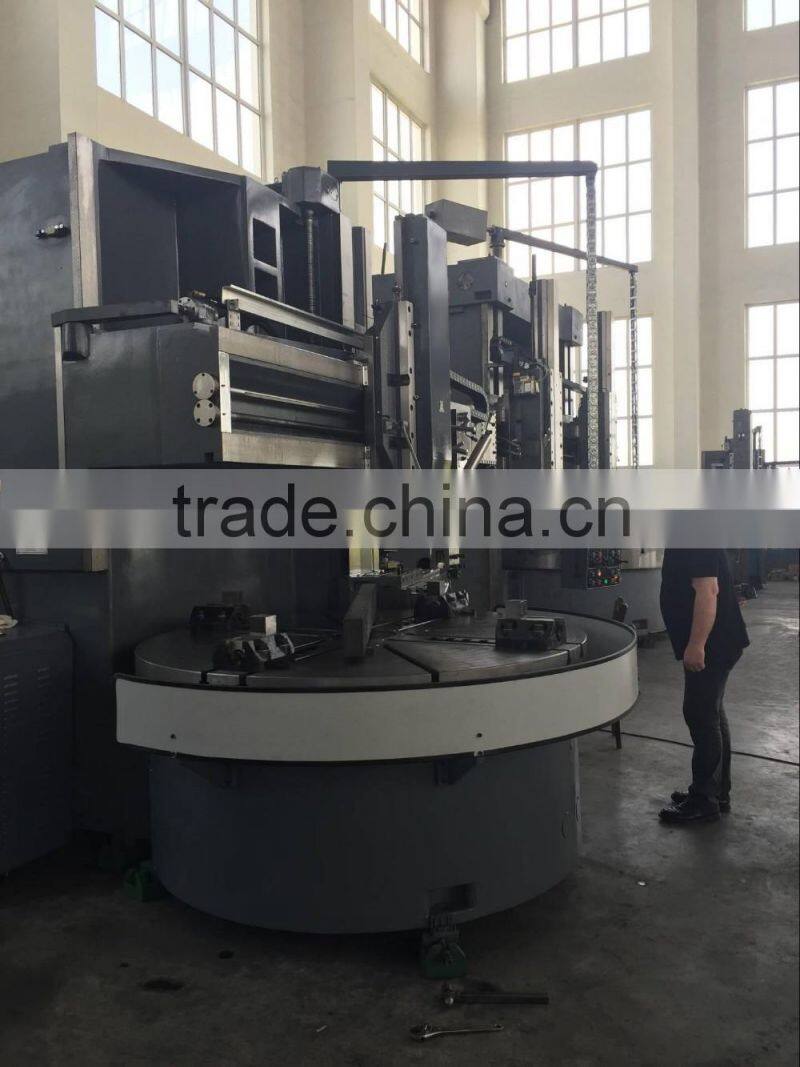

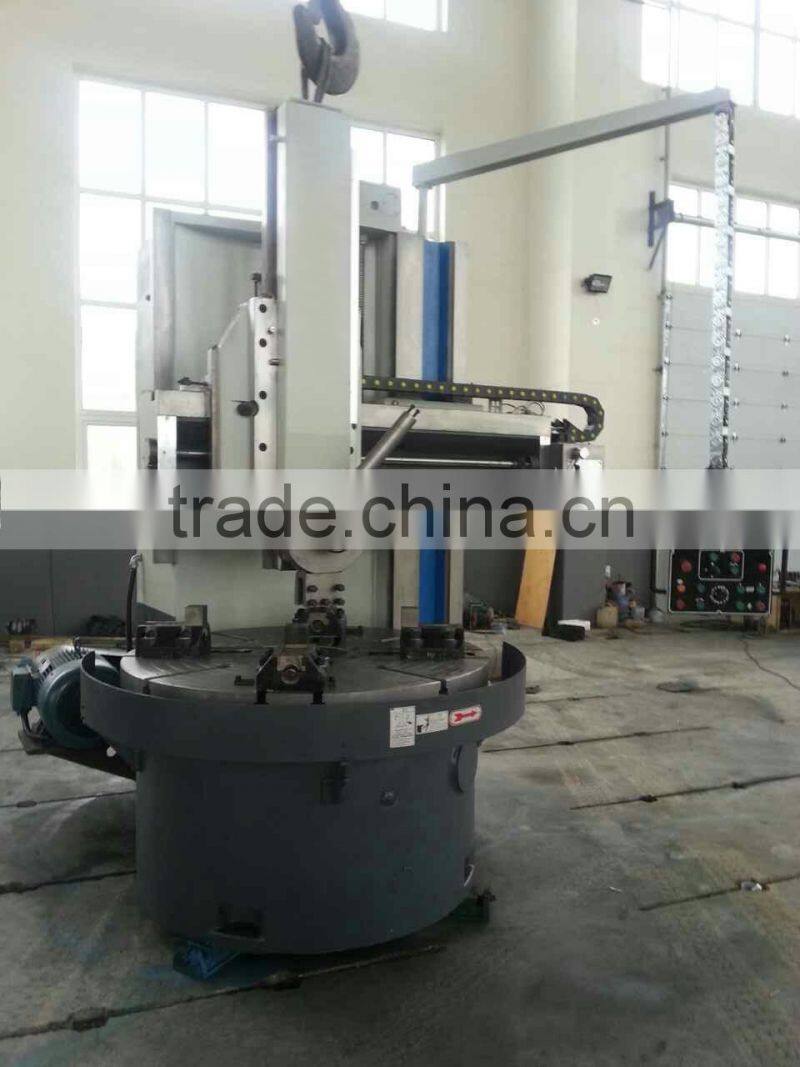

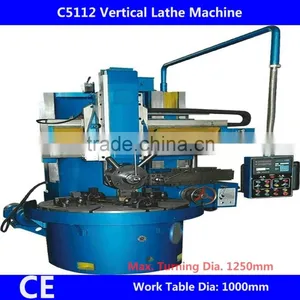

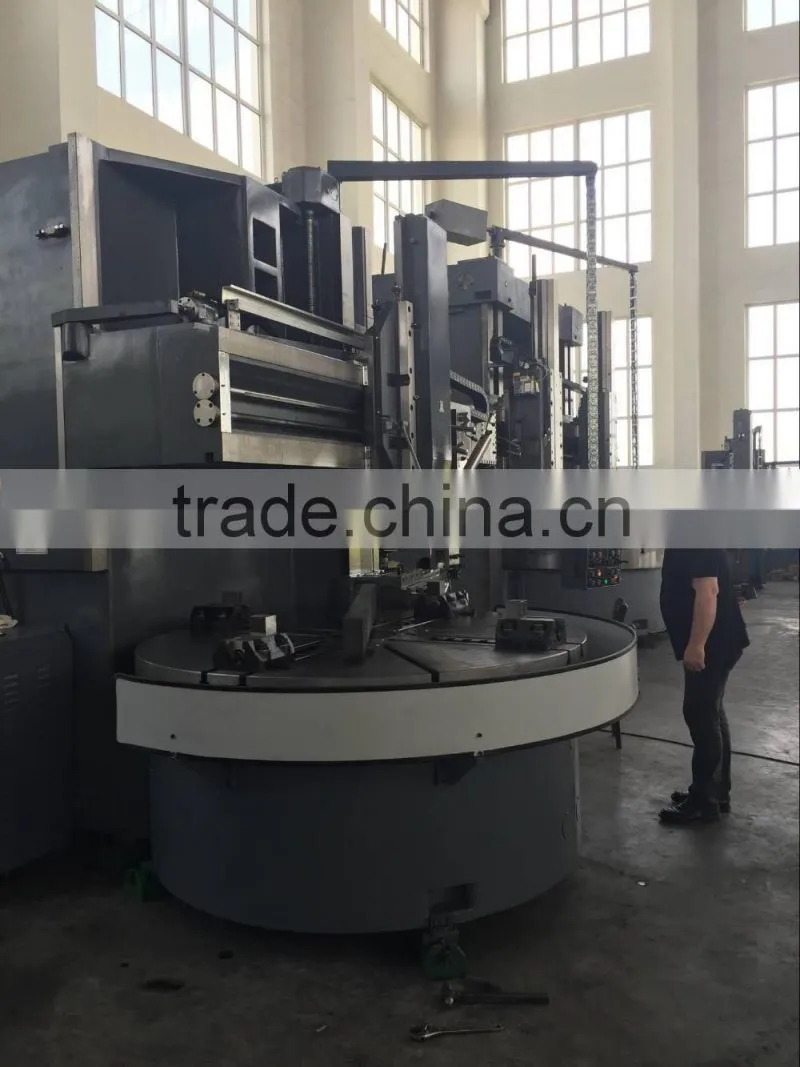

C5112 CE Conventional Vertical Lathe Machine Single Column

US$ 35,000 - 40,100 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

CNC or Not Normal

Automatic Grade Semi-Automatic

Max. Swing Diameter 1200mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number C5112 single column vertical lathe machine

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 22kW

Dimension(L*W*H) 2360x2270x3000mm

Weight 9500kgs

Certification CE; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

C5112 conventional vertical lathe machine

Main Features

Single column Vertical lathe;

With DRO;

Main Usage

Suitable of the turning ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy etc.

It can make rough and accurate turning of external cylindrical surface, circular conical surface, head face, grooving, severance, and so on.

Main Technical Data

Specifications	Unit	Parameter
Max turning diameter	mm	1250
Max. working height	mm	Standard : 1000 Optional: 1200
Max. weight of workpiece	T	4
Table diameter	mm	1000
Speed range of table	r/min	6.3~200
Speed-step of table	r/min	16
Max torque of table	KN·m	17.5
Max cutting resistance of railhead	KN	20
Max cutting resistance of sidehead	KN	20
Total cutting resistance	KN	35
Travel of railhead ( Horizontal)	mm	700
Travel of railhead (Vertical)	mm	800
Travel of sidehead ( Horizontal)	mm	630
Travel of sidehead (Vertical)	mm	900
Travel of crossbeam	mm	650/850
Moving degrees limit of railhead	°	±30°
Feed range of railhead/sidehead	mm/min	0.8~86
Rapid traveling speed of railhead/sidehead	mm/min	1800
Traveling speed of crossbeam	mm/min	440
Power of main motor	kW	22
overall dimensions (L×W×H)	mm	2360×2270×2800 2360×2270×3000
