VT125 high class single column cnc vertical lathe
Such cnc column vertical lathe has following features:
1. single column vertical lathe;
2. CE Certificate and kinds of cnc controllers for your choice: Fanuc, Siemens, GSK and so on;
3. such vertical lathe is suitable for turning the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools.
4.Main bodies of the machine are made of high rigid resin sand castings with thermal aging treatment. Steel parts are thermal refined.
5.The machine adopts a stable rigid structure and consists mainly of base, table, column, cross rail, tool head, hydraulic system and electric system. Cross rail moves up and down along guideways of the column.
6.Hydraulic system of the machine is adopted for table hydrostatic system, table speed change, ram balancing system, cross rail clamping & unclamping and lubrication system.
Specifications |
Unit |
Parameter |
Table diameter |
mm |
1000 |
Max. Turning diameter |
mm |
1250 |
Max. Height of workpiece |
mm |
1400 |
Max. Weight of workpiece |
kg |
5000 |
Max. cutting force of rail head |
N |
20000 |
Max. torque of table |
N·m |
10000 |
Speed-changing steps of table |
|
Two grades stepless |
Speed range of table |
r/min |
6.3~200 |
Travel distance of rail head (horizontal) |
mm |
850 |
Travel distance of rail head (vertical) |
mm |
1400 |
Feed range of rail head |
mm/ min |
0.1~1000 |
Feed steps of railhead |
|
stepless |
Rapid traverse speed of rail head |
mm/min |
3000 |
Section dimension of ram |
mm |
180 x 240 |
Section dimension of tool arbor |
mm |
40 x 40 |
Travel distance of crossbeam |
mm |
1200 |
Lifting speed of crossbeam |
mm/min |
410 |
Lifting motor power of crossbeam |
kW |
7.5 |
Power of main motor |
kW |
30 |
Weight of machine (about) 16000 |
kg |
16000 |
Dimension of machine (H×W×H) |
mm |
|
S.N. |
Name |
Remark |
1 |
Table |
|
2 |
Table base |
|
3 |
Vertical column |
|
4 |
Crossbeam(fixed) |
|
5 |
Rail head |
|
6 |
Main motor |
|
7 |
Operation panel |
|
8 |
Hydraulic station |
|
9 |
Manual 4-jaw chuck |
|
kinds of colors for your choice/can be customized

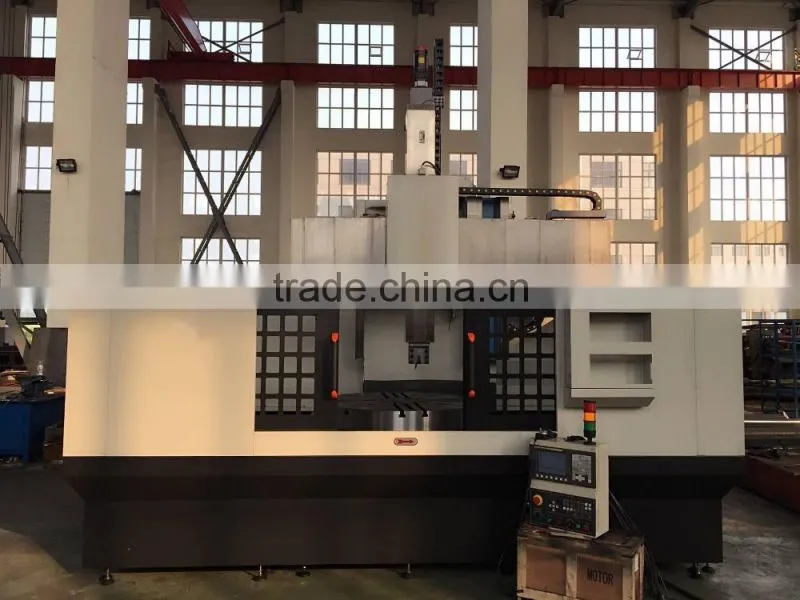

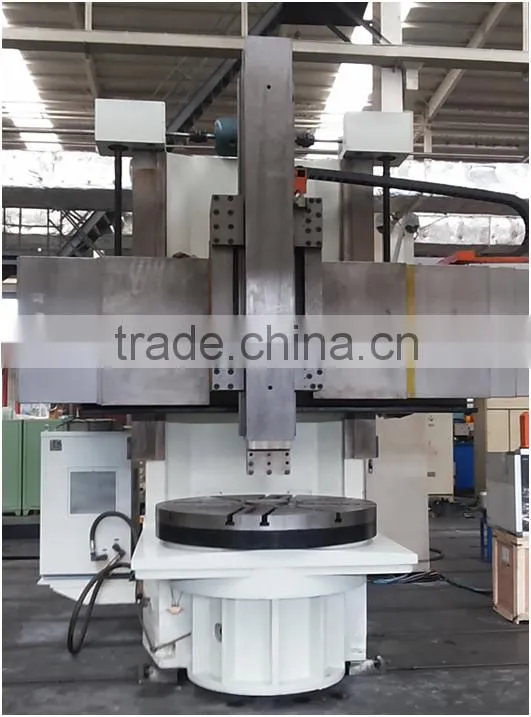

No cover:
Semi-cover
