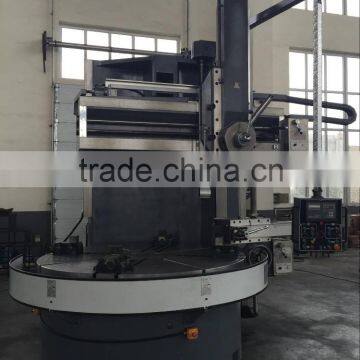

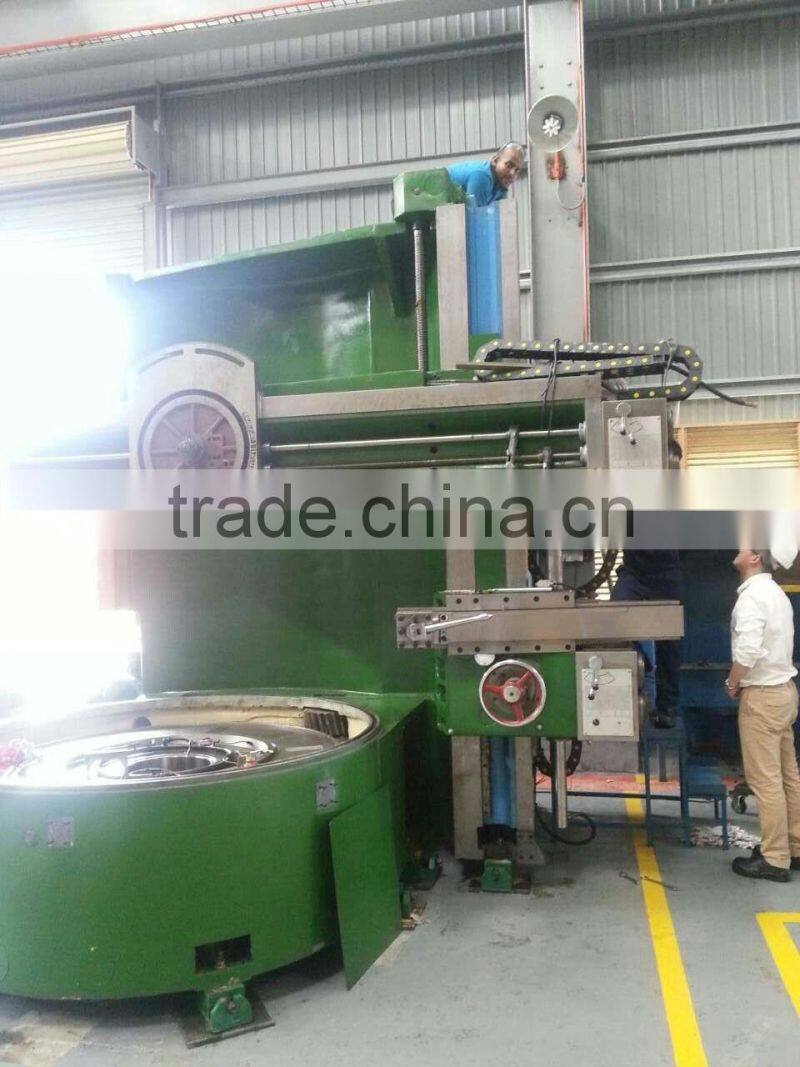

C51/52 conventional vertical lathe machine
There are four series of vertical lathes in our company:
Universal single-column vertical lathe, universal dual-column vertical lathe;
CNC single-column vertical lathe and CNC dual-column vertical lathe.
Conventional single column vertical lathe: C517 C518 C5110 C5112 C5116 C5120 C5123 C5126 C5132
Conventional Double column vertical lathe: C5225 C5232 C5240 C5250 C5263 C5280 C52100 C52125
with DRO
CE standard and CE Certificate;

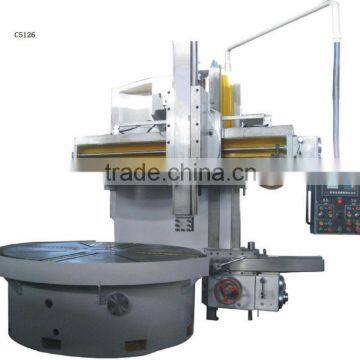

Conventional single column vertical lathe
Specifications |
Unit |
C518A |
C5110 |
C5112A |
C51120 |
C5126 |
C5132 |
Max. turning diameter of railhead |
mm |
800 |
1000 |
1250 |
2000 |
2300 |
3200 |
Max. working height |
mm |
800 |
800 |
1000 |
1200 |
1500 |
1600 |
Max. weight of workpiece |
T |
1.2 |
2 |
4 |
8 |
10 |
10/30 |
Table diameter |
mm |
720 |
900 |
1000 |
1800 |
2300 |
2830 |
Speed range of table |
r/min |
10~315 |
8~250 |
6.3~200 |
4~125 |
1.2~40 |
2~63 |
Speed-step of table |
steps |
16 |
16 |
16 |
16 |
16 |
16 |
Power of main motor |
kW |
15 |
22 |
22 |
30 |
37 |
37 |
conventional double column vertical lathe
Specifications |
Unit |
C5225 |
C5232 |
C5240 |
C5250 |
C5263 |
C5280 |
C52100 |
C52125 |
Max. turning diameter |
mm |
2500 |
3150 |
4000 |
5000 |
6300 |
8000 |
10000 |
12500 |
Max. working height of workpiece |
mm |
1600 |
2000 |
1600 |
2000 |
3000 |
4000 |
4000 |
4000 |
Max. weight of workpiece |
T |
10 |
10/30 |
10/32 |
30/50 |
50 |
100 |
100 |
100 |
Table diameter |
mm |
2250 |
2830 |
2830/3200 |
3600/4500 |
3800 |
5700/6000 |
7100 |
7500 |
Speed range of table |
r/min |
2~63 |
2~63 |
2~63 |
0.2~40 |
0.5~50 |
0.2~20 |
0.16~16 |
0.16~16 |
Speed-step of table |
steps |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
Travel of right tool post (Vertical) |
mm |
1300~1500 |
1000~1500 |
1000~1500 |
1250~1600 |
1600~2000 |
2000 |
2520 |
2520 |
Travel of left tool post (Horizontal) |
mm |
1400 |
1735 |
2150 |
20~2630 |
3415 |
50~4400 |
50~4400 |
50~4400 |
Power of main motor |
kW |
55 |
55 |
55/75 |
75/75 |
75 |
DC132 |
DC132 |
DC132 |
kinds of colors for your choice/can be customized
No cover:
