Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CK516 CE Single Column Cnc Vertical Lathe for Sale

CK516 CE Single Column Cnc Vertical Lathe for Sale

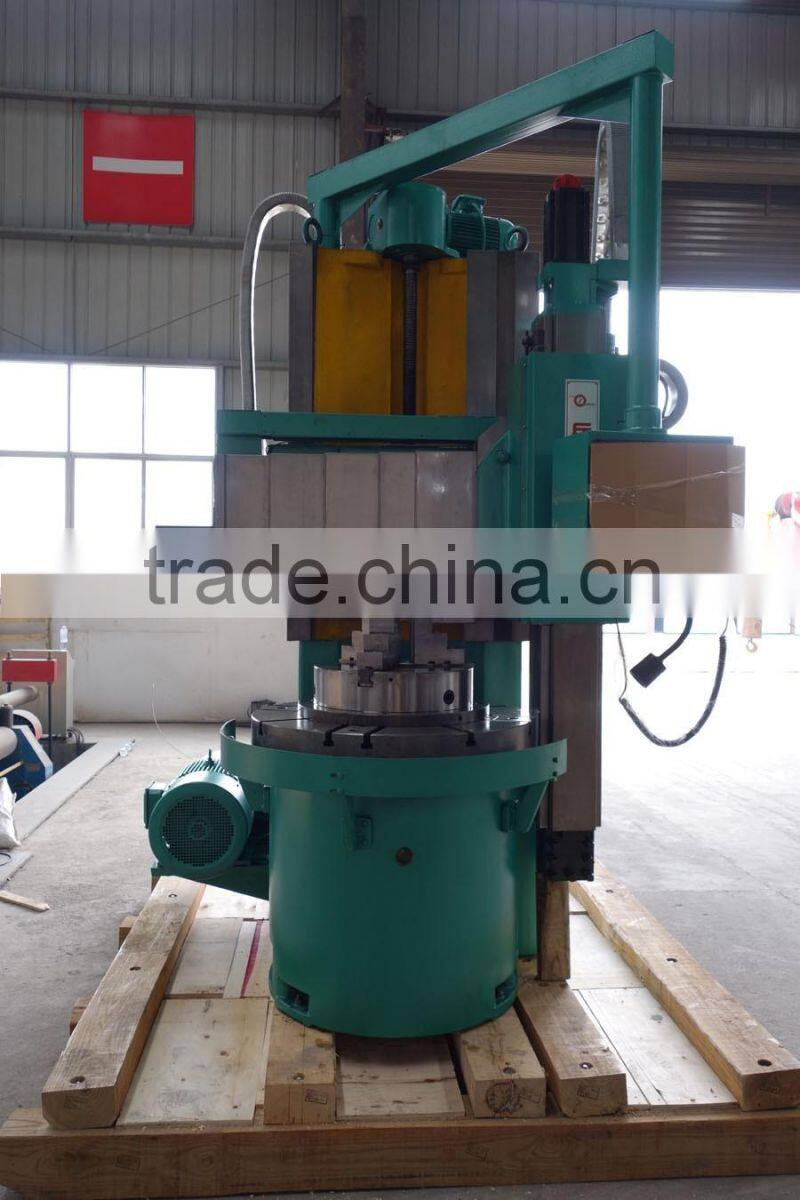

CK516 CE Single Column Cnc Vertical Lathe for Sale photo-1

CK516 CE Single Column Cnc Vertical Lathe for Sale photo-2

US$ 35,000 - 35,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 600mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number CK516 cnc vertical lathe

Voltage 3phx220V,380V,415V,440V,480V;

Power(W) 15kW

Dimension(L*W*H) depends

Weight 6 tons

Certification CE; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

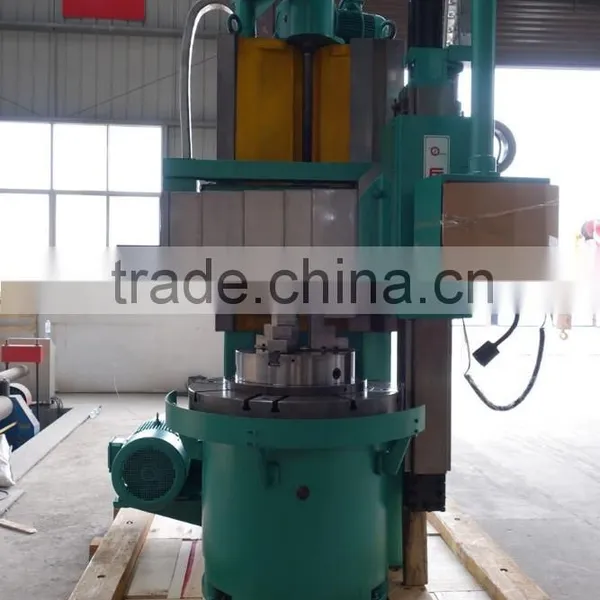

CK516 single column cnc vertical lathe

Main Features

Such cnc column vertical lathe has following features:

1. single column vertical lathe;

2. CE Certificate and kinds of cnc controllers for your choice: Fanuc, Siemens, GSK and so on;

3. such vertical lathe is suitable for turning the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools.

4.Main bodies of the machine are made of high rigid resin sand castings with thermal aging treatment. Steel parts are thermal refined.

5.The machine adopts a stable rigid structure and consists mainly of base, table, column, cross rail, tool head, hydraulic system and electric system. Cross rail moves up and down along guideways of the column.

6.Hydraulic system of the machine is adopted for table hydrostatic system, table speed change, ram balancing system, cross rail clamping & unclamping and lubrication system.

Main Technical Data

Specifications	Unit	Parameter
Cutting tool post biggest diameter	mm	630
Worktable diameter	mm	500
The artifact maximum height	mm	600
maximum workpiece weight	t	1
Table speed range	r/min	10-560
Table speed series		Ⅱstepless
maximum table torque	Kn/m	10
Head feeding series		stepless
Vertical tool rest degree of limit	º	30
Vertical tool rest maximum cutting force	KN	20
Tool post	mm	485(Horizontal travel) 650(Vertical travel)
Ram movement	mm	580
Rest fast moving speed	mm/min	2000
Tool rod section size (length * width)	mm	30×40
Main motor power	kW	15
System Configuration		FANUC OI-MATE TD
Nc axes		X, Z linkage
Location accuracy	mm	0.03
Repositioning resolution	mm	0.015
Processing dimensional accuracy		IT 7
Machine weight (about)	T	6
