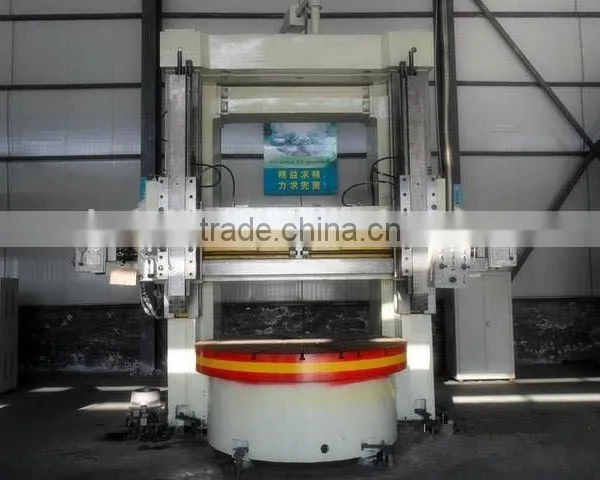

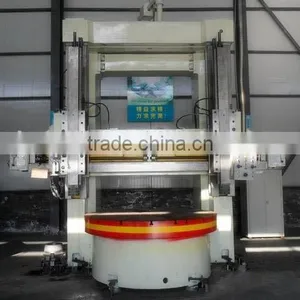

CK5225 CE Double Column Cnc Vertical Turning Lathe Quality Choice

US$ 180,385 - 183,185 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

CNC or Not:

CNC

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 2500mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number CK5225 cnc vertical lathe

Voltage 220V/380V/415V/440V/480V 50/60Hz

Power(W) 55kW

Dimension(L*W*H) depends

Weight 38 tons

Certification CE; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

CK5225 Large CNC Vertical Lathe Technical Data

Short Summary

The CNC vertical lathe is of excellent performance, a wide range of technology, high productivity.
Based on referring to the advanced machine design and manufacturing technology, adopting the newest design philosophy, and combining the profound corporate culture, our company has developed a kind of delicate machine tools with mechatronics and hydraulics integration, and provided the world-class products for overseas and domestic customers.
To make the lathe with high turning precision and enough rigidity and intensity, the table adopts integral casting and thermal symmetric structure, the main shaft bearing is the high-precision double row cylindrical roller bearing, and the table guideway;
CNC controllers: Fanuc, Siemens, GSK and so on;

Main Technical Data

Specifications	Unit	Parameter
Max. turning diameter of railhead	mm	2500
Table diameter	mm	2250
Max. working height of workpiece	mm	1600/2000
Max. weight of workpiece	T	10
Sectional size of tool bar	mm	40×40
Max. cutting resistance of tool post	KN	32
Max. torque of table	KN.m	63
Speed range of table	r/min	2.5~80
Feed range of tool post	mm/min	0.1~2000
Rapid traveling speed of tool post	mm/min	3000
Travel of tool post Horizontal	mm	-20~1500
Travel of tool post Vertical	mm	1000
Table guide		Hydrostatic
Max. travel of crossbeam		1250/1650
Speed of going up and down of crossbeam	mm/min	350
Sectional size of ram	mm	200×255
Controller		Siemens 802DSL or Optional
Position accuracy	mm	Test and evaluate accuracy according to GB/T17421.2-2000
Positional accuracy	mm	X, Z: 0.03/1000
Repeatable positional accuracy	mm	X,Z: 0.015/1000
Reverse positional accuracy	mm	X/Z: 0.010/1000
Temperature range	°	0~40
Ambient thumidity		≤85%
Power supply and voltage		380V±10%
Power of main motor	KW	DC55
