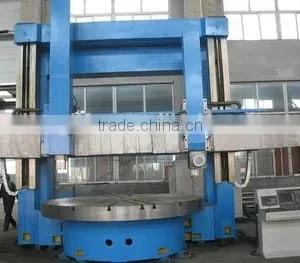

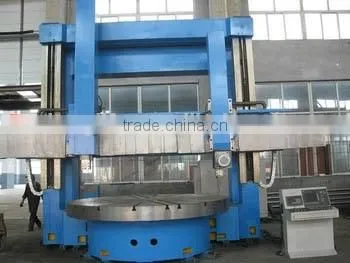

Help CenterCK5232 CE Double Column Cnc Vertical Lathe Machine
Related Products
-
CK5240 CE Double Column Cnc Vertical Turning LatheUS$ 255,250 - 257,250MOQ: 1 Set -
CK5250 Heavy CE Double Column Cnc Vertical LatheUS$ 250,385 - 260,385MOQ: 1 Set
-
CK5263 Heavy CE Double Column Cnc Vertical Turning Lathe MachineUS$ 505,300 - 605,300MOQ: 1 Set
-
CK5280 Large and Heavy CE Double Column Cnc Vertical Lathe MachineUS$ 1,740,500 - 1,750,000MOQ: 1 Set
-
CK52100 Large and Heavy CE Double Column Cnc Vertical LatheUS$ 2,237,500 - 2,238,500MOQ: 1 Set
CK5232 Large cnc vertical lathe Technical Data
1) Our products have passed the CE approval
2) Until now, we have exported our products to Italy, France, Germany, UK, Russia,
Brazil, Indonesia and so on.

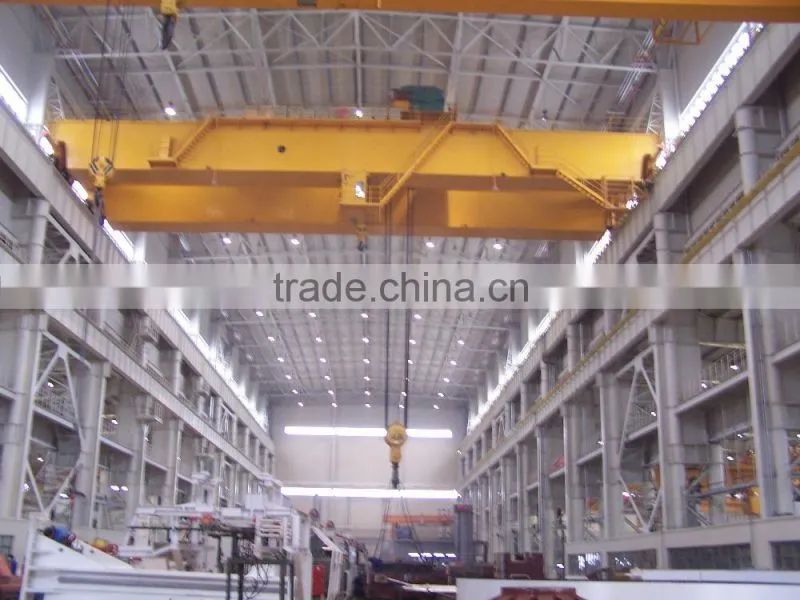

3) Factory area:46,000 square meters including casting, machining, assemble work-
shop.
4) Our casting workshop adopts lost foam to guarantee the size and precision of casting parts.
5) All the parts are performed heat treatment, natural failure, vibrating stress relief to
relieve internal stresses.
6) All the guide surfaces are performed quenching.
7) We implement assembly line, and the assemble workshop includes feed box team,
gear box team, worktable team, hydraulic unit team, scrubbing team, drilling hole team, power distributionteam, daubing and painting team and test team.
Specifications |
Unit |
Parameter |
Max. turning diameter of railhead |
mm |
3200 |
Table diameter |
mm |
2830 |
Max. working height of workpiece |
mm |
2000 |
Max. weight of workpiece |
T |
10 |
Sectional size of tool bar |
mm |
40×50 |
Max. cutting resistance of tool post |
KN |
Right:35 left:28 |
Max. torque of table |
KN.m |
63 |
Speed range of table |
r/min |
0.63~63 |
Feed range of tool post |
mm/min |
0.1-2000 stepless |
Rapid traveling speed of tool post |
mm/min |
3000 |
Travel of tool post (Horizontal) |
mm |
-20~1840 |
Travel of tool post (Vertical) |
mm |
1000 |
Moving degrees limit of left tool post (Horizontal) |
° |
±30 |
Table guide |
|
Hydrostatic |
Max. travel of the crossbeam mm |
mm |
1650 |
Moving speed of the crossbeam |
mm/min |
350 |
Controller |
|
Siemens 802d |
Position accuracy |
mm |
Test and evaluate accuracy according to GB/T17421.2—2000 |
Positional accuracy |
mm |
X Z 0.03/1000 |
Repeatable positional accuracy |
mm |
X Z 0.015/1000 |
Reverse positional accuracy |
mm |
X Z 0.010/1000 |
Working condition | ||
Temperature range |
° |
0~40° |
Ambient thumidity |
|
≤85% |
Power of main motor (KW) |
|
DC55 |
kinds of colors for your choice/can be customized
