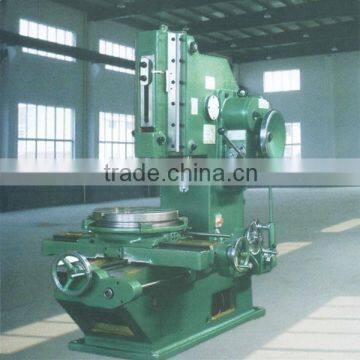

B5040 slotting machine techinical data
Such slotting machine has following features:
1. Being designed for cutting various plane, Formed surface and key of workpiece, the machine is suitable for single piece or small Batch production.
2. The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the tam is achieved by a crank connecting link.
3. An auto- matic mechanism for vertical, horizontal and rotary feeding and rotary motion of the table which is equipped with an indexing gear for rotary motion.
Specifications |
Unit |
Parameter |
Max. slotting length |
mm |
400 |
Number of ram reciprocation per minute |
No./min |
20/32/50/80 |
Inclination of ram |
|
0~8° |
Diameter of worktable |
mm |
630 |
Adjusting vertical distance of slide block |
mm |
315 |
Distance from tool holding surface to column front |
mm |
600 |
Distance from worktable surface to underside of slide rack |
mm |
615 |
Max. longitudinal travel of worktable |
mm |
560 |
Max. transverse travel of worktable |
mm |
535 |
Max. rotary angle of worktable |
|
360° |
Feed range of worktable in longitudinal transverse direction |
mm |
0.054~1.24 |
Rotary feed range of worktable |
|
0.035~0.805° |
Max size of slotting tool |
mm |
25x40 |
Max. slotting force |
KN |
8 |
Max loading weight on worktable |
Kg |
500 |
T-slot width in the center of worktable |
mm |
18H8 |
Power supply of main electric motor |
kW |
3 |
Speed of main motor |
r/min |
960 |
Power of motor for rapid traverse |
kW |
0.75 |
Speed of motor for rapid traverse |
r/min |
1390 |
Net weight(approx) |
kg |
2900 |
Dimensions of machine tool |
mm |
1970x1365x2310 |
Name |
Unit |
Parameter |
Flatness of machined surface on tested work piece |
mm |
0.015 |
Verticality of machined surface on tested work piece |
mm |
0.025 |
Surface roughness on tested work piece |
|
|
