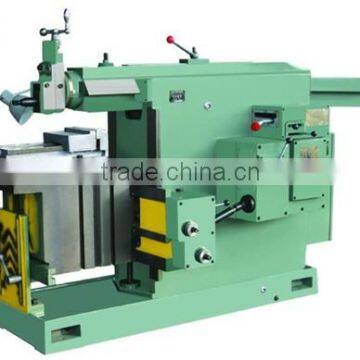

BC6066 Shaping Machine for Metal Shaping-Mechnical Type

Long Life Machinery Import And Export Co., Ltd.

US$ 5,074 - 33,971 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Liaoning, China

Brand Name:

LFM

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Liaoning, China

Brand Name LFM

Model Number BC6066

Voltage 220V 380V 400V 415V 440V 480V 50/60Hz

Power(W) 3kW

Dimension(L*W*H) 2357x1225x1480mm

Weight 1750kgs

Certification ISO9001:2008; GB/T19001:2008;

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

BC6066 Mechnical Type Shaping Machine

Main Usage and Featurers:

machining plane, grooves and dovetail surface, forming surface and so on.
planner bench can turing angle of the table with horizontal and lift moving mechanism; for planning the inclined plane, thereby expanding the scope of use.
Shaper ram for straight and level after exercise, rest more than can be restricted in the vertical rotation Angle,
and can be manual feed, workbench with artifacts for intermittent horizontal or vertical feed movement,

Specifications	Unit	Parameter
Max. shaping length	mm	660
Max. cross travel of working table	mm	660
Max. vertical travel of working table	mm	360
Max.travel from lower edge of ram to working table	mm	385
Size of top surface of working table (L×W)	mm	660×400
Max. slide travel of cutter frame	mm	120
Max. size of tool shank (W×H)	mm	20×30
Ram reciprocation per minute		14,20,28,40,56,80
Working table feed range (Horizontal feed)	mm/time	0.2~2.5 (steps 12)
Working table feed range (Vertical feed)	mm/time	0.08~1.00 (steps 12)
Rotary angle of toolholder		±60°
Working table quick motion speed (Horizontal motion)	m/min	0.95
Working table quick motion speed (Vertical motion)	m/min	0.38
Width of T-slot at center of working table	mm	18
Power of main motor	kW	3
Power of rapid motor	kW	0.55
Dimensions (L×W×H)	mm	2357×1225×1480
Packing dimensions (L×W×H)	mm	2100×1400×1700
Weight	kg	1750/1800

Standard Accessories:
