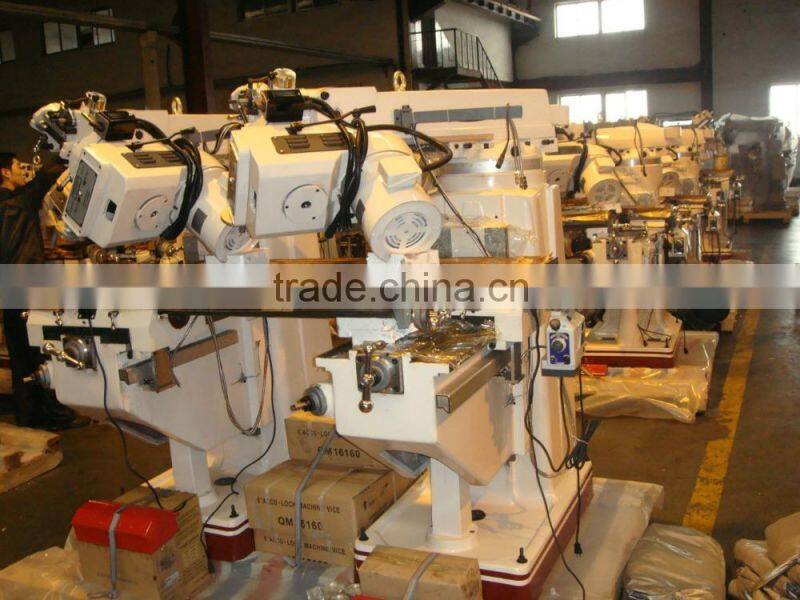

Catalogue of vertical turret milling machine for sale
- 1000 Set / Sets per Month
- Dalian/Qingdao China
- T/T
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial CNC Milling Machine, production, Machine Center for steel, stainless
Product Details
Condition: | New | Place of Origin: | Liaoning, China | Brand Name: | DALIAN |
Model Number: | X6323 X6325 X6330 X6333 turret milling machine | Type: | Vertical | CNC or Not: | Normal |
Voltage: | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W): | 2.2~5.5kW | Dimension(L*W*H): | Depends |
Weight: | Depends | Certification: | CE Certificate; ISO9001:2008; GB/T19001:2008 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

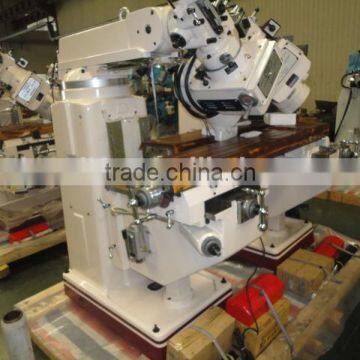

Catalogue of vertical turret milling machine
- Rectangular guide way on Y-and Z-axis is featured a good rigidity and stability.
- The guide way on saddle is lined with TF wearable material.
are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring.
1. The milling head can turn 90°each side;
2. Ram can be turned 180° horizontally;
3.Spindle speed range is wide ranged and higher speed.
4.The spindle sleeve feeding can be set.
5.It is equipped with over load protection device.
6.Spindle sleeve and guide way is high frequency quenching.
7.Our milling machine is good looking and practical.
8. with CE;
Model | X6323A | X6323B | X6325A | X6325B | X6325 | X6325C | X6325D | X6330 | X6330A | X6333 | X6333A |
Table size (mm) | 230×1067 230×1246 | 230×1067 230×1246 | 254×1270 254×1370 | 254×1270 254×1370 | 254×1270 254×1370 | 254×1270 254×1370 | 254×127 254×137 | 305×1370 305×1500 | 305×1370 305×1500 | 330×1370 330×1500 | 330×1370 330×1500 |
Table Longitudinal travel (mm) | 650 840 | 650 840 | 850 950 | 850 950 | 850 950 | 850 950 | 850 950 | 870 1000 | 870 1000 | 840 1000 | 840 1000 |
Table Cross travel (mm) | 305 | 305 | 400 | 400 | 420 | 420 | 420 | 380 | 380 | 368 | 368 |
Table Vertical travel (mm) | 400 | 400 | 420 | 420 | 420 | 420 | 420 | 430 | 430 | 450 | 450 |
T-slot NO. and size | 3×16 | 3×16 | 3×16 | 3×16 | 3×16 | 3×16 | 3×16 | 3×16 | 3×16 | 3×16 | 3×16 |
Ram travel (mm) | 312 | 312 | 470 | 470 | 470 | 470 | 470 | 500 | 500 | 500 | 500 |
Distance from spindle to table surface (mm) | 0~415 | 0~415 | 0~405 | 0~405 | 0~405 | 0~405 | 0~405 | 0~350 | 0~350 | 0~450 | 0~450 |
Spindle bore taper | Standard configuration :R8 optional configuration:ISO30/ISO40 | Standard configuration:ISO40 | |||||||||
Spindle travel (mm) | 127 | 127 | 127 | 127 | 127 | 127 | 127 | 127 | 127 | 127 | 127 |
Spindle speed (mm) | Standard:step16:50Hz65~4500/60Hz 80~5440 | Standard: step speed16 50HZ65-4500,60HZ80-3750 | Standard: step speed 16: 50HZ65-4500,60HZ80-5440 | ||||||||
Optional Configuration:stepless 65~4500 | Optional Configuration:stepless speed:65-375 |
