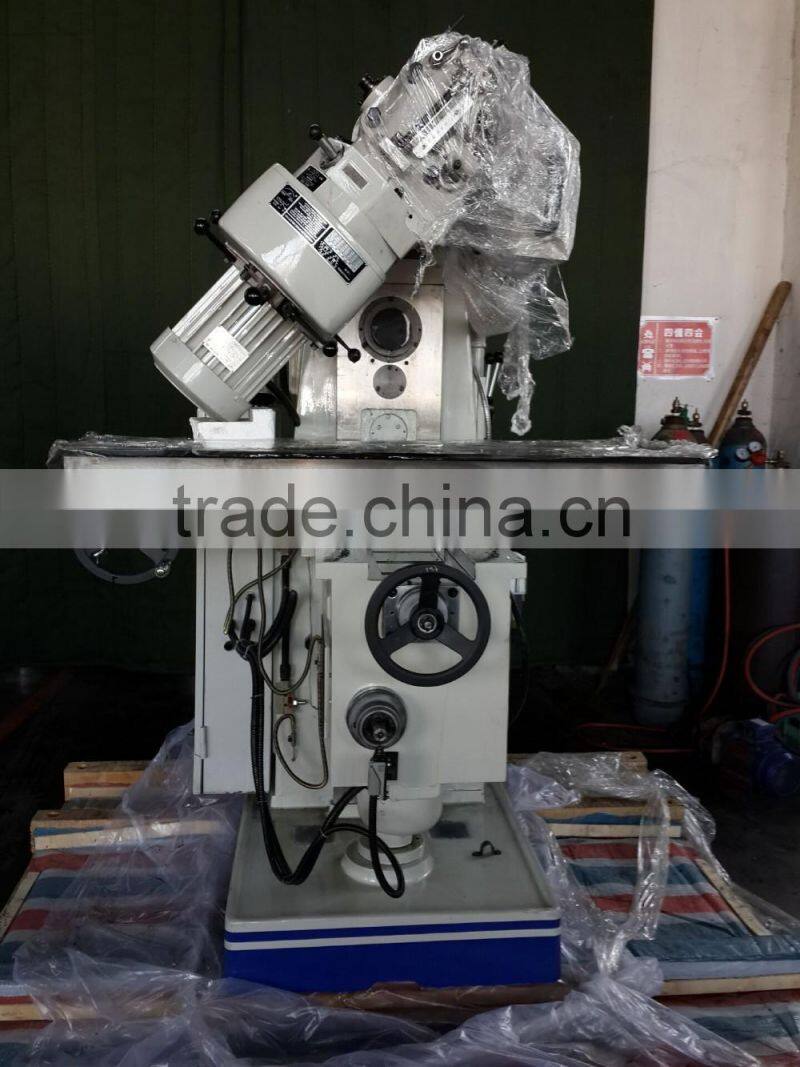

XN6330h universal vertical and horizontal milling machine
xn6330h cnc universal vertical and horizontal milling machine has following features:
1. Super width of bed and keen box guide way, which have been hardened and precision ground,
2. with high rigidity and stability;
3. The guide way of the saddle is lined with TF wearable belt.
4. The machine with one vertical and horizontal spindle, the spindles and gears been hardened and ground, accuracy stable good, suitable heavy cutting.
5. Taiwan head & 3 axes Taiwan leadscrew.
Specifications |
Unit |
Parameter |
Table size |
mm |
300×1300 |
Table longitudinal travel (manual) |
mm |
845 |
Table cross travel(manual) |
mm |
385 |
Knee vertical travel(manual) |
mm |
435 |
Knee rapid speed |
mm/min |
900 |
Spindle motor |
HP |
Standard: 3 Optional: 5 |
Spindle speed |
rpm |
Standard: 16 steps 50Hz: 65~4500 60Hz:80~5440 Optional: variable seed 65~3750 |
Spindle taper |
|
Standard:R8 Optional: ISO40 |
Quill travel |
mm |
127 |
Quill feed |
mm/rev |
0.04/0.08/0.15 |
Head rotating |
|
Left and right 90° Front and rear 45° |
Distance from spindle to table surface |
mm |
115~545 |
Motor power |
HP |
5 |
Spindle speed |
rpm |
50Hz:45/80/165/260/500/980 60Hz:55/100/200/315/600/1180 |
Spindle taper |
5HP |
ISO40 |
Distance from spindle to center to table surface |
mm |
-20~410 |
Distance from spindle center to arm |
mm |
183 |
Arm travel |
mm |
480 |
Arm rotating |
|
360° |
Net weight |
kg |
1900 |
L×W×H |
cm |
180×150×220 |
1. Drawbar
2. Working lamp
3. Electrical box
4. Handle oil pump
5. Tool and tool box
6. Cooling device
7. Workbench shield
8. Oil drip pan
