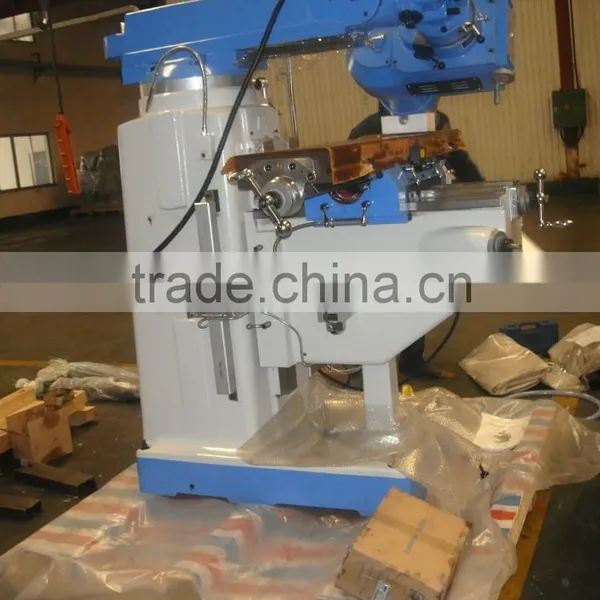

Vertical turret milling machine
For detailed information, to: export(at)
Vertical turret milling machine are widely used for processing flat face, slope surface, keyway, key groove, slot and drilling, reaming, boring. The milling head can turn 90°each side, Ram can be turned 180° on flat. Spindle speed range is bigger and higher speed. The spindle sleeve feeding can be set. It is equipped with over load protection device. Spindle sleeve and guide way is high frequency quenching. Our milling machine is good looking and practical.
Model |
X6323A |
X6323B |
X6325A |
X6325B |
|
Table size (mm) |
230×1067 230×1246 |
230×1067 230×1246 |
254×1270 254×1370 |
254×1270 254×1370 |
|
Longitudinal travel (mm) |
650 840 |
650 840 |
850 950 |
850 950 |
|
Cross travel (mm) |
305 |
305 |
400 |
400 |
|
Vertical travel (mm) |
400 |
400 |
420 |
420 |
|
T-slot no and size |
3×16 |
3×16 |
3×16 |
3×16 |
|
Ram travel (mm) |
312 |
312 |
470 |
470 |
|
Distance from spindle to table surface (mm) |
0~415 |
0~415 |
0~405 |
0~405 |
|
Spindle bore taper |
Standard configuration:R8 optional accessories:ISO30/ISO40 |
Standard configuration:R8 optional accessories:ISO30 ISO40 |
Standard configuration:R8 optional accessories:ISO30 ISO40 |
Standard configuration:R8 optional accessories:ISO30 ISO40 |
|
Spindle travel (mm) |
127 |
127 |
127 |
127 |
|
Spindle speed (mm) |
Standard:step16 :50Hz65~4500/60Hz 80~5440 |
Standard:step16 :50Hz65~4500/60Hz 80~5440 |
Standard:step16 :50Hz65~4500/60Hz 80~5440 |
Standard: step16 :50Hz65~4500/60Hz 80~5440 |
|
optional accessories:stepless 65~4500 |
optional accessories:stepless 65~4500 |
optional accessories:stepless 65~4500 |
optional accessories:stepless 65~4500 |
||
Auto. quill feed (mm/rev) |
3 gear:0.04(0.0015)/0.08(0.003)/0.15(0.006) |
3 gear:0.04(0.0015)/0.08(0.003)/0.15(0.006) |
3 gear:0.04(0.0015)/0.08(0.003)/0.15(0.006) |
3 gear:0.04(0.0015)/0.08(0.003)/0.15(0.006) |
|
Spindle motor |
2.25kw 3hp |
2.25kw 3hp |
2.25kw 3hp |
2.25kw 3hp |
|
Head swivel |
90° |
90° |
90° |
90° |
|
Head tilting |
45° |
45° |
45° |
45° |
|
Dimension of package |
Package for one set (mm) |
1400×1476×2030 |
1400×1476×2030 |
1516×1550×2080 |
1516×1550×2080 |
Package for two sets (mm) |
1450×1570×2080 |
1450×1570×2080 |
1650×1790×2170 |
1650×1790×2170 |
|
Package for three sets (mm) |
1450×2180×2080 |
1450×2180×2080 |
1650×2285×2235 |
1650×2285×2235 |
|
Gross weight/set(kg) |
1100 |
1160 |
1380 |
1420 |
|
