S1354B Simple Bed Type Cnc Vertical Milling Machine

S1354B Simple Bed Type Cnc Vertical Milling Machine photo-1
US$ 43,000 - 44,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Liaoning, China
Brand Name:
LFM
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian/Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Liaoning, China
Brand Name LFM
Model Number S2473 bed type cnc vertical milling machine
Type Universal
CNC or Not Normal
Voltage 220V/380V/415V/440V/480V
Power(W) 7.5kW
Dimension(L*W*H) 2280x2900x2950mm
Weight 5800kgs
Certification CE; ISO9001:2008; GB/T19001:2008
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

S2473 bed type cnc vertical milling machine

Brief Introduction

1. Main parts are original from TAIWAN;
2. GERMANY technology, main technology guided by GERMANY engineer;
3. Providing machine as OEM form for GERMANY Company as long term;
4. Full production is supervised by TAIWAN engineers;
5. Strictly according to CHINA National Standard and CE Safety Standar;

6. CE Certificate;

Characteristics

Such cnc vertical milling machine has following features:

1. widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring;

2. high quality with competitive price;

3. CE Standard and CE Certificate;

4. Taiwan original 3 axes Taiwan leadscrews make sure our milling machines performance better

than others.

5. The Taiwan original spindle adopted so that to make sure the cutting can be very

fluently and effiecient.

5. About the guideway, we choose two type guideway linear guideway and square guideway for different model:

The linear guideway get the high efficiency and high speed,

The square guideway can load more than others.

Main Technical Data

Specifications

Unit

S1354B

Table size (L × W)

mm

1370×330

Table loading capability

kg

400

X Travel

mm

800

Y Travel

mm

450

Z Travel

mm

480

Max. move speed(X/Y/Z)

mm/min

8000

Max. feed speed(X/Y/Z)

mm/min

3000

Spindle speed range

r/min

40~6000

Spindle taper



BT40

Spindle motor power

kW

5.5

X/Y/Z servo motor power

 kW

1.5

Spindle quill diameter

mm

Φ120

Distance from spindle nose end face to table surface

mm

60~640

Ball screws (X axis)

mm

Φ32×5 P4 Double nuts

Ball screws (Y axis)

mm

Φ32×5 P4 Double nuts

Ball screws (Z axis)

mm

Φ32×5 P4 Double nuts

Positioning accuracy

mm

0.025

Repeat positioning accuracy

mm

0.012

Packing dimension  (Semi-closure guard) (L × W × H)

mm

2280×2250×2470

Packing dimension (Full-closure guard) (L × W × H)

mm

3000×2280×2470

Machine weight (Semi-closure guard)

kg

2600

Machine weight ((Full-closure guard)

kg

3400

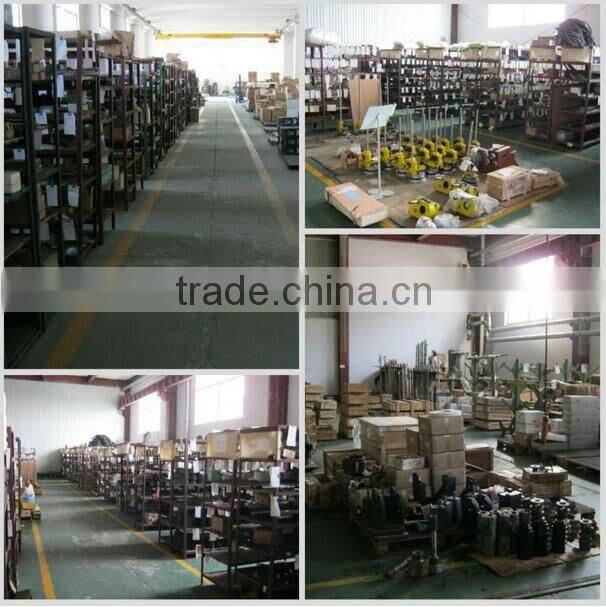

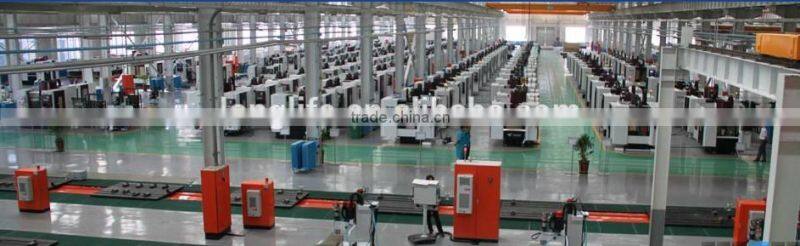

Factory Overview

kinds of colors for your choice/can be customized

S1354B simple bed type cnc vertical milling machine
S1354B simple bed type cnc vertical milling machine
S1354B simple bed type cnc vertical milling machine
