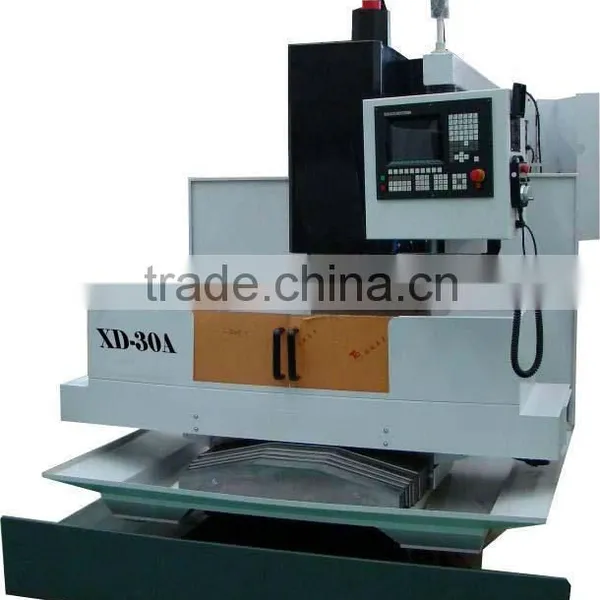

XD30 cnc vertical milling machine Parameter
1. Milling, boring, drilling, reaming and tapping can be performed in one set-up.
2. widely used in various industries of military, aviation, car manufacturing and molding.
Such cnc vertical milling machine has following features:
1. The basic parts, including in machine floor, column, spindle box, cross slide and work-table, are casted with high rigidity cast-iron, so that guarantees s stable structure and ever high quality.
2. High-speed, high-accuracy spindle;
3. X, Y, Z axes are all equipped with Sliding Guide and high-precision ballscrew which is pre-tensioned to enhance the rigidity to eliminate the deformation, which is caused by the high temperature as the spindle rotating at high speed.
4. The machine has characteristics of high-Automation, reliability, convenience, easy operation, suitability and handsome appearance together with heavy duty
5. CE Standard and CE Certificate;
Specifications |
Unit |
Parameter |
Table(L×W) |
mm |
700×320 |
T-slot(Numbers × Width × Distance) (b/t slots) |
mm |
3×14×110 |
Table load Max |
kg |
150 |
Distance from spindle center line to column guide way surface |
mm |
430 |
Distance from spindle nose end face to table upper surface |
mm |
140~520 |
X/Y/Z travel |
mm |
450/350/380 |
X/Y/Z guide way type |
|
Linear way |
X/Y/Z rapid traverse speed |
m/min |
30/30/30 |
Feed rate |
mm/min |
1~10000 |
X/Y/Z servo motor power |
Nm |
11/11/11 |
Spindle motor power |
kW |
5.5/7.5 |
Spindle speed range |
r/min |
60~8000 |
Spindle taper |
|
#40(7/24) |
X/Y/Z Positioning accuracy |
mm |
0.016 |
Air pressure requirement |
mPa |
0.5 |
Overall dimension(L×W×H) |
mm |
2500×2000×2200 |
Net weight |
kg |
2400 |
- Spindle speed 8000rpm;BT40;
- X / Y / Z-axis linear guide way, Simple protection,
- automatic lubricating system,
- automatic cooling system,

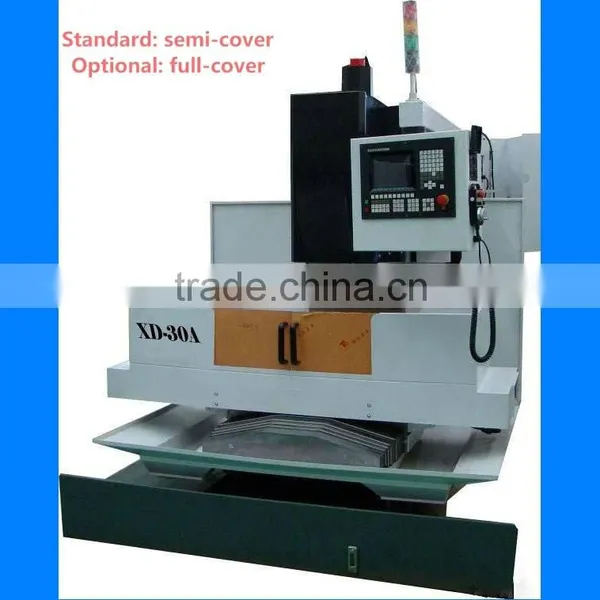

- half/full-enclosed guard,
- automatic chip conveyor,
- manual oil gun and Manual Pulse Generator (MPG);
kinds of colors for your choice/can be customized
