Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > CE Certificated Strong Universal Vertical Milling Machine Hot-sale X5040

CE Certificated Strong Universal Vertical Milling Machine Hot-sale X5040

US$ 5,074 - 33,971 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Liaoning, China

Brand Name:

LFM

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Liaoning, China

Brand Name LFM

Model Number X5025 X5028 X5032 X5040

Type Universal

CNC or Not Normal

Voltage 220V/380V/415V/440V/480V

Power(W) 3~11kW

Certification CE; ISO9001:2008; GB/T19001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

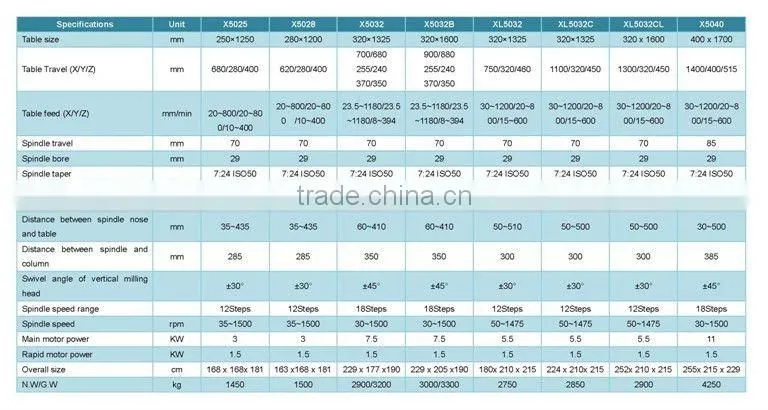

Vertical Milling Machine Technical Data

For detailed information, to: export(at)

Vertical Milling Machine

Specifications	Unit	X5025	X5028	X5032	X5032B	XL5032	XL5032C	XL5032CL	X5040
Table size	mm	250×1250	280×1200	320×1325	320×1600	320×1325	320×1325	320 x 1600	400 x 1700
Table Travel (X/Y/Z)	mm	680/280/400	620/280/400	700/680 255/240 370/350	900/880 255/240 370/350	750/320/460	1100/320/450	1300/320/450	1400/400/515
Table feed (X/Y/Z)	mm/min	20~800/20~800/10~400	20~800/20~800 /10~400	23.5~1180/23.5~1180/8~394	23.5~1180/23.5~1180/8~394	30~1200/20~800/15~600	30~1200/20~800/15~600	30~1200/20~800/15~600	30~1200/20~800/15~600
Spindle travel	mm	70	70	70	70	70	70	70	85
Spindle bore	mm	29	29	29	29	29	29	29	29
Spindle taper		7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50
Rapid speed of table(X /Y/Z)	mm/min	1000/1000/500	1000/1000/500	2300/1540/770	2300/1540/770	2300/1540/770	2300/1540/770	2300/1540/770	2300/1540/770
T-slots (No./width/pitch)	mm	3/14/63	5/14/50	3/18/70	3/18/70	3/18/70	3/18/70	3/18/70	3/18/70
Distance between spindle nose and table	mm	35~435	35~435	60~410	60~410	50~510	50~500	50~500	30~500
