VI. Main Specifications and Technical Parameters

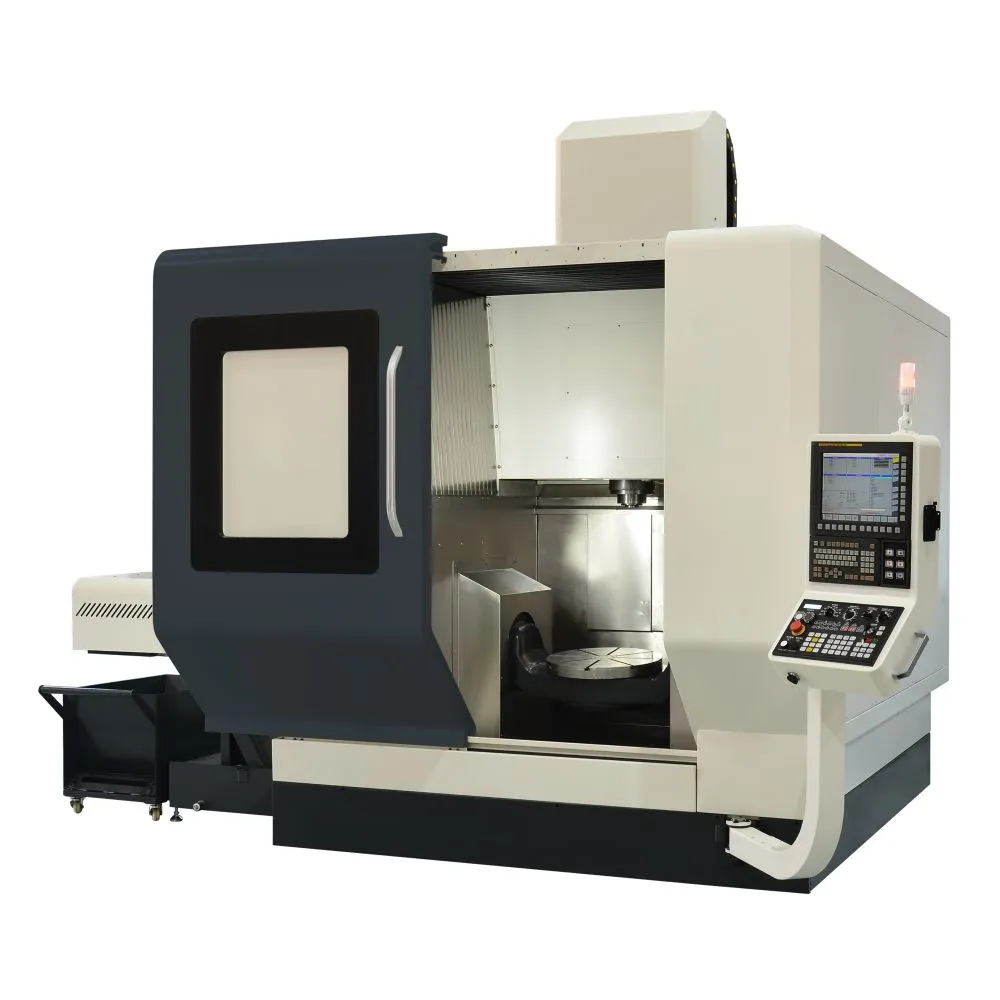

Model: HU600
Option: Unit
Rotary Table
Worktable Size: Φ650 × 540 mm
Worktable Load Capacity: 300 kg
T-Slot Width: 5–14 × 100 mm
Tilt Axis Angle: -40°/+110° °
Rotation Axis Angle: 360° °
B-Axis Motor: TMRWDFC
C-Axis Motor: TMRWA7C
B/C-Axis Angle Encoder: HEIDENHAIN RCN2380
Machining Range
X-Axis Travel: 650 mm
Y-Axis Travel: 550 (255 + 295) mm
Z-Axis Travel: 500 mm
Distance from Spindle Face to Worktable: 140–640 mm
Spindle
Taper Type: HSK A63
Speed Range: 10–20,000 rpm
Power S1: 20 kW
Torque S1/S3: 35/52.5 Nm
Front Bearing Inner Diameter: 65 mm
System Configuration
Heidenhain TNC640
Tool Magazine
Magazine Capacity: 40 tools
Tool Selection Method: Arbitrary
Maximum Tool Weight: 8 kg
Maximum Tool Length: 300 mm
Accuracy
Positioning Accuracy: 0.008 mm
Repeatability: 0.005 mm
Feed Rates
X-Axis Rapid Traverse: 36 m/min
Y-Axis Rapid Traverse: 36 m/min
Z-Axis Rapid Traverse: 36 m/min
B-Axis Maximum Rotation Speed: 60 rpm
C-Axis Maximum Rotation Speed: 100 rpm
Machine Dimensions
4520 × 3960 × 3340 mm
Overall Machine Weight: Approx. 8 tons
VII. Main Procurement Components List
No. | Name | Brand | Remarks
1 | CNC System | Heidenhain | X/Y/Z axis motors and drives
2 | Ball Screw | Taiwan |
3 | Screw Support Bearings | Japan |
4 | Roller Linear Guides | Switzerland |
5 | Electric Spindle | Aibeko |
6 | CNC Rotary Table | Taiwan |
7 | Oil Cooler | Tongfei |
8 | Electrical Cabinet Air Conditioner | Domestic |
9 | Lubrication System Key Components | SKF |
10 | Pneumatic System Key Components | Germany |
11 | Electrical System Key Components | France |
12 | Water Pump | Domestic |
