CE Vertical Milling Machine at Lower Price-Good Quality

FOB Price

USD $5,074 - $33,971 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Place of Origin:	Liaoning, China	Brand Name:	LFM
Model Number:	X5025, X5028, X5032, X5040	Type:	Vertical	CNC or Not:	Normal
Voltage:	220V/380V/415V/440V/480V	Power(W):	11kW	Certification:	CE; ISO9001:2008; GB/T19001:2008
Warranty:	12 months	After-sales Service Provided:	Engineers available to service machinery overseas

Manual Milling Machine Technical Data

We have many kinds of milling machines: vertical milling machine, horizontal milling machine, turret milling machine, CNC milling machine and others.

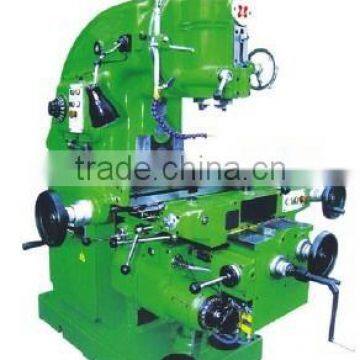

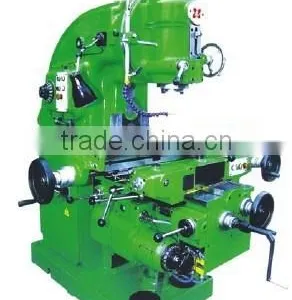

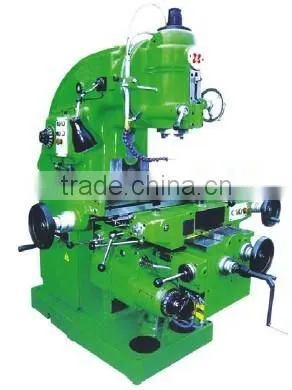

Vertical Milling Machine

Specifications	Unit	X5025	X5028	X5032	X5032B	XL5032	XL5032C	XL5032CL	X5040
Table size	mm	250×1250	280×1200	320×1325	320×1600	320×1325	320×1325	320 x 1600	400 x 1700
Table Travel (X/Y/Z)	mm	680/280/400	620/280/400	700/680 255/240 370/350	900/880 255/240 370/350	750/320/460	1100/320/450	1300/320/450	1400/400/515
Table feed (X/Y/Z)	mm/min	20~800/20~800/10~400	20~800/20~800 /10~400	23.5~1180/23.5~1180/8~394	23.5~1180/23.5~1180/8~394	30~1200/20~800/15~600	30~1200/20~800/15~600	30~1200/20~800/15~600	30~1200/20~800/15~600
Spindle travel	mm	70	70	70	70	70	70	70	85
Spindle bore	mm	29	29	29	29	29	29	29	29
Spindle taper		7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50
Rapid speed of table(X /Y/Z)	mm/min	1000/1000/500	1000/1000/500	2300/1540/770	2300/1540/770	2300/1540/770	2300/1540/770	2300/1540/770	2300/1540/770
T-slots (No./width/pitch)	mm	3/14/63	5/14/50	3/18/70	3/18/70	3/18/70	3/18/70	3/18/70	3/18/70
Distance between spindle nose and table	mm	35~435	35~435	60~410	60~410	50~510	50~500	50~500	30~500
