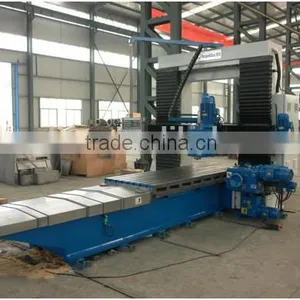

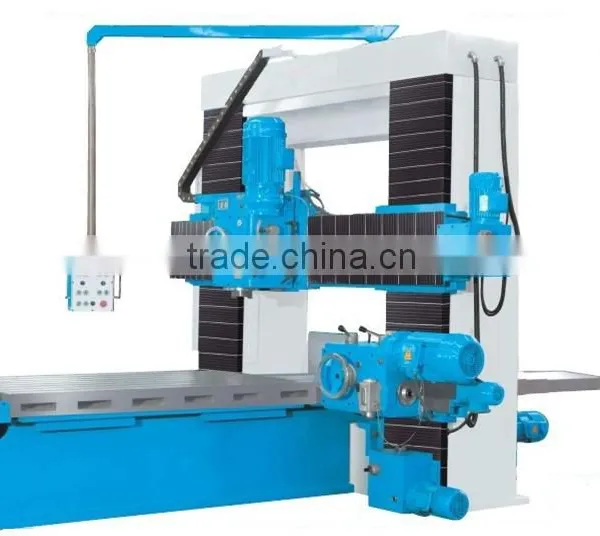

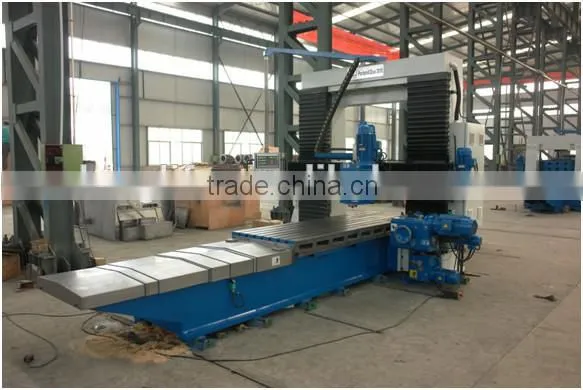

Economic Gantry Milling Machine Lower Price-Good Quality With CE

US$ 45,074 - 53,971 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Liaoning, China

Brand Name:

LFM

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Liaoning, China

Brand Name LFM

Model Number X2014x3000

Type Universal

CNC or Not Normal

Voltage 220V/380V/415V/440V/480V

Power(W) 11kW

Certification CE; ISO9001:2008; GB/T19001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Gantry Milling Machine Technical Data

Specifications	Unit	Parameter
X-travel	mm	3000
Y-travel	mm	1800
Z-travel	mm	1200
Vertical travel of side head	mm	500
Displacement distance of side head		350
Worktable size	mm	3000x1400
Max. weight of workpiece	kg	4000
T-slots(numbers x width x distance)	mm	7x28x210
Distance from vertical head nose to table surface	mm	0~1200
Distance from centerline of side head to table surface	mm	0~500
Vertical spindle speed	min-1	82~505
Max. output torque of vertical spindle	Nm	790
Taper of vertical spindle		ISO50 7:24 50
Taper of side head spindle		ISO50 7:24 50
Speed of side head	min-1	82-505
Max. output torque of side head	NM	790
X-axis fast speed	mm/min	1300
Y-axis fast speed	mm/min	890
Z-axis fast speed	mm/min	432
Vertical fast speed of side head		730
X-feed speed	mm/min	stepless (0~2620)
Y-feed speed	mm/min	65, 320, 890
Z--feed speed	mm/min	fast speed 432
Vertical feed speed of side head		50, 265, 730
Main motor power	kW	7.5
Motor power of side head	kW	7.5
Motor power of X-axis	kW	7.5
Motor power of Y-axis	kW	1.1
Motor power of Z -axis	kW	4
Feed motor power of side head		0.4
Overall dimensions	mm	7000x3850x3500
Weight	kg	18000
