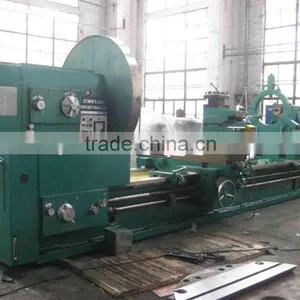

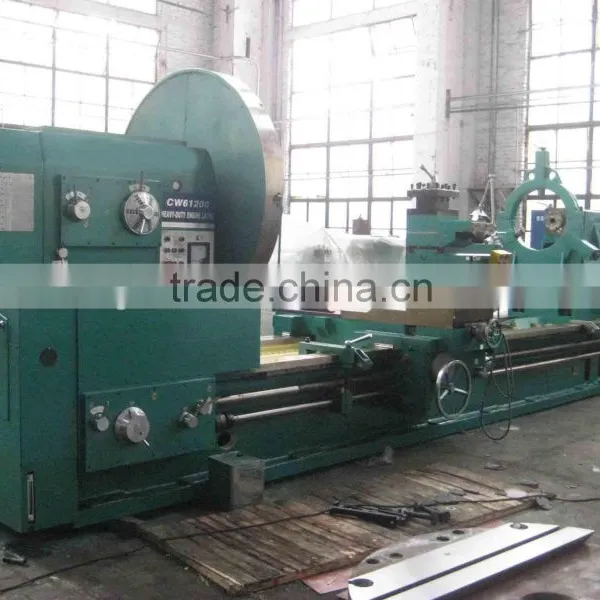

Heavy-duty Lathe Hot-sale CW61100

Name: Heavy-duty Lathe Hot-sale CW61100
Brand: DALIAN
SKU: 102719109

US$ 40,500 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 1000mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number CW61100

Voltage 220V 380V 400V 415V 440V 480V

Certification ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

Heavy-duty lathe machine Technical Data

Item Specifications		Unit Parameter
CW61100x5000	Swing over Bed	mm	1000
	Max length of work piece	mm	5000
	Max. swing over carriage	mm	650
	Max. length to be machined	mm	1,300
	Max. width of bed.	mm	755
	Max. weights of work piece between center	KGS	6000
	Spindle nose	mm/min	ISO A2-15
	Number of feeds and range	mm	97 kinds
	longitudinal	mm	0.64 ~12
	Cross slide	mm	0.032 ~ 6
	Compound slide	mm	0.016~ 3
	Spindle bore	mm	130
	Spindle speeds		3.15 ~ 31rpm, 21 steps
	NO and range of metric threads		45 kinds, 1 ~ 120
	NO and range of inch threads	TPI	42 kinds, 30 ~ 1 / 4 T.P.I
	NO. and range of module threads		48 kinds, 60 ~ 0.5
	NO. and range of diametric pitches		46 kinds, 0.5 ~ 60
	Max. travel of cross slide	mm	520
	Max. travel of tool post	mm	300
	Dia. Of tailstock sleeve	mm	160
	Taper of tailstock sleeve		Metric NO,80
	Travel of tailstock sleeve	mm	300
	Power of main motor	kW	22
	Power of rapid motor	kW	1.5
	Power of pump motor	kW	0.55
	Power of cooling motor	kW	0.15
	Electrical power	kW	380 , 50Hz 3 phase
	Net overall dimension of the machine	mm	5,100×1,810×1,790/ 5,360×1,950×2,280
	N. W. / G. W.	Kg	9,850/11,700
