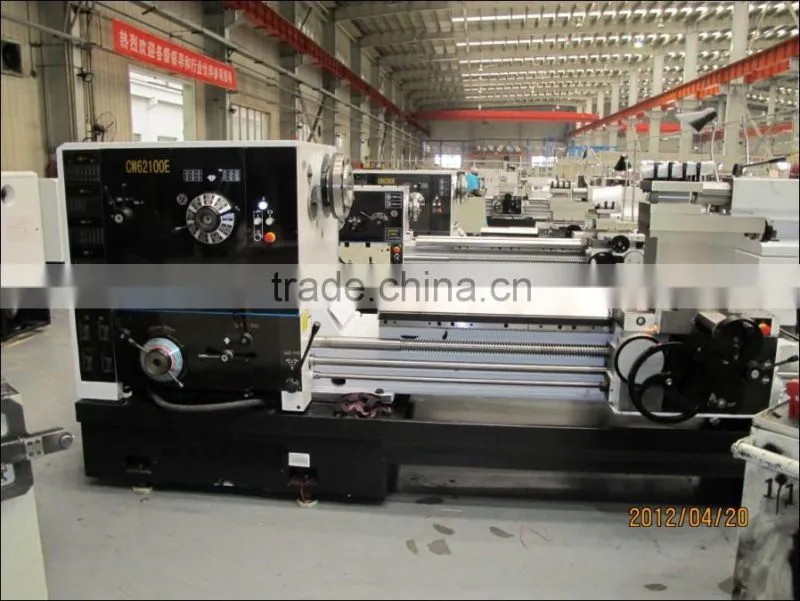

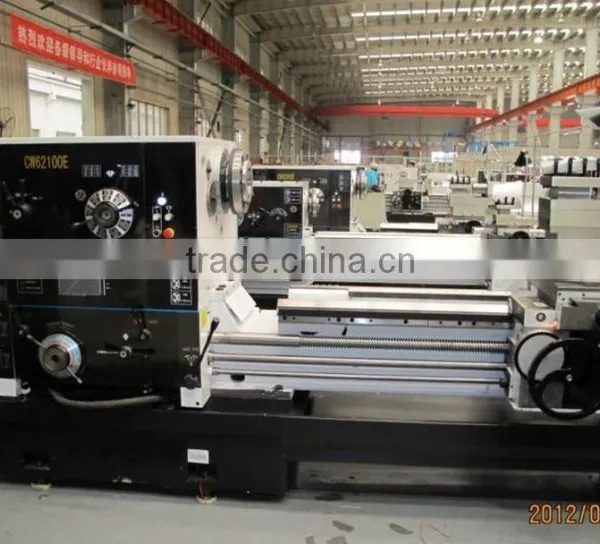

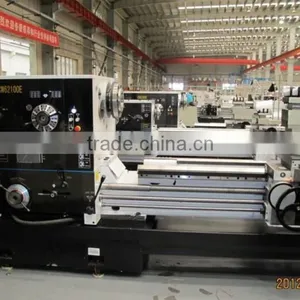

Help CenterCatalogue of CW62100 Universal Horizontal Lathe
Related Products
-
CDL6251 High-speed Bench Lathe for Light MachiningUS$ 7,050 - 9,720MOQ: 1 Set -
Large Spindle Bore 130mm Universal Horizontal Lathe With GAP Hot-sale CW6280EUS$ 14,500 - 32,230MOQ: 1 Set
-
CDS6276B/Cx2000 CE Universal Horizontal Lathe PriceUS$ 10,516 - 10,716MOQ: 1 Set
-
CW62100Ex3000 Universal Horizontal GAP LatheUS$ 19,900 - 21,221MOQ: 1 Set
-
CDE6240 Series Conventional Horizontal Lathe at Lower PriceUS$ 5,253 - 7,598MOQ: 1 Set
CW62100E universal horizontal lathe Technical Data

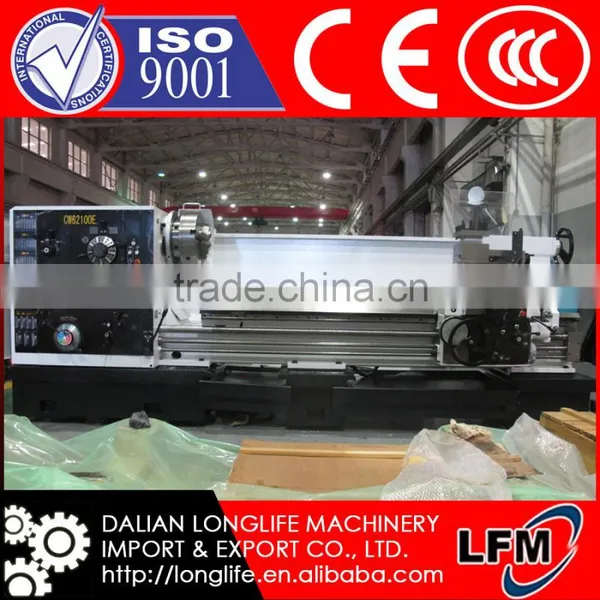

CW62100 universal horizontal lathe
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
1000 |
Max. swing over carriage |
mm |
720 |
Center distance |
mm |
750/1000/1500/2000/3000/4000/5000/6000 |
Width of gap |
mm |
320 |
Swing over gap |
mm |
1230 |
Width of guide way |
mm |
550 |
Spindle bore diameter |
mm |
105/130 opt |
spindle nose |
|
C11/D11 opt |
Spindle speed |
rpm |
(18 speeds) 7.5~1000 |
Longitudinal feed |
mm/r |
(64) 0.1~24.3 |
Cross feed |
mm/r |
(64) 0.05~12.15 |
Rapid traverse speed |
m/min |
3.8 |
Metric thread |
mm |
(39)1~240 |
Inch thread |
TPI |
(26) 14~1 |
Module thread |
mm |
(53) 0.5~120 |
Diametrical pitch thread |
D.P |
(24) 28~1 |
Max. travel of cross slide |
mm |
493 |
Travel of top slide |
mm |
200 |
Main motor power |
kW |
11 |
Rapid traverse motor power |
kW |
1.1 |
Coolant pump motor power |
kW |
0.09 |
Wooden box/Pallet packing |
mm |
|
Gross/Net weight |
kg |
|
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
