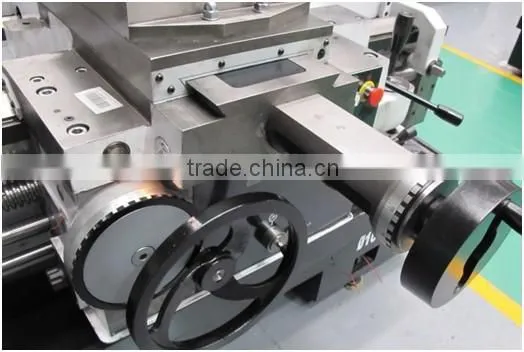

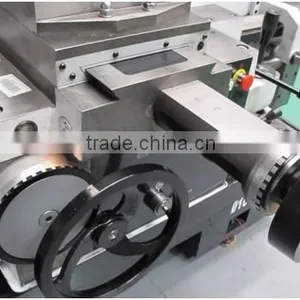

CW6263x750 universal horizontal gap lathe price
- 100 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
Product Details
| Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
| Automatic Grade: | Manual | Max. Swing Diameter: | 630mm | Place of Origin: | Liaoning, China |
| Brand Name: | DALIAN | Model Number: | CW6263Ex750 horizontal gap lathe | Voltage: | 220V,380V,415V,440V,480V; 50/60Hz |
| Power(W): | 11/15kW; | Dimension(L*W*H): | 3390x1100x1920mm | Weight: | 3550kgs |
| Certification: | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Such horizontal lathe has following usages:
- It can machine inner circle, outer circle, and end and head surface, taper surface;
- Gap lathe can process the deformation parts;
- Function is including the drilling and reaming;
- Metric, inch, diametrical pitch, module thread;
- The bed is made of high-grade cast iron;
- The bed is undergoing surface quenching, the hardness can be HRC50;
- The noise can be under 83(A);
Specifications | Unit | Parameter |
Max. swing over bed | mm | 630 |
Max. swing over carriage | mm | 350 |
Center distance | mm | 750 |
Width of gap | mm | 320 |
Swing over gap | mm | 800 |
Width of guide way | mm | 550 |
Spindle bore diameter | mm | 105 |
spindle nose |
| C11/D11 |
Spindle speed | rpm | (18 speeds) 7.5~1000 |
Longitudinal feed | mm/r | (64) 0.1~24.3 |
Cross feed | mm/r | (64) 0.05~12.15 |
Rapid traverse speed | m/min | 3.8 |
Metric thread | mm | (39)1~240 |
Inch thread | TPI | (26) 14~1 |
Module thread | mm | (53) 0.5~120 |
Diametrical pitch thread | D.P | (24) 28~1 |
Max. travel of cross slide | mm | 445 |
Travel of top slide | mm | 200 |
Main motor power | kW | 11 |
Rapid traverse motor power | kW | 1.1 |
Coolant pump motor power | kW | 0.09 |
Wooden box/Pallet packing | mm | 39407300×1150×2080 38407290×1100×1920 |
Net weight | kg | 3550 |
Name | Size(mm) |
3-jaw chuck | Φ320(For CW6263E) |
4-jaw chuck | Φ500(For CW6263E) |
Steady rest | Φ20~Φ170(For CW6263E) |
Follow rest | Φ20~Φ100(For CW6263E) |
Dear centers | M6 (2 deputy) |
Wrench Tool | 1 set |
Oil gun | 1 set |
Instruction Manual | 1 set |
Certificate of Conformity | 1 set |
Packing List | 1 set |
