CDS6240B/C Universal Horizontal GAP Lathe with CE
- 1000 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Manual | Max. Swing Diameter: | 400mm | Place of Origin: | Liaoning, China |
Brand Name: | DALIAN | Model Number: | CDS6240B/C(400x1000~2000mm) | Voltage: | 220V,380V,415V,440V,480V 50/60Hz; |
Power(W): | 7.5/11kW; | Certification: | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

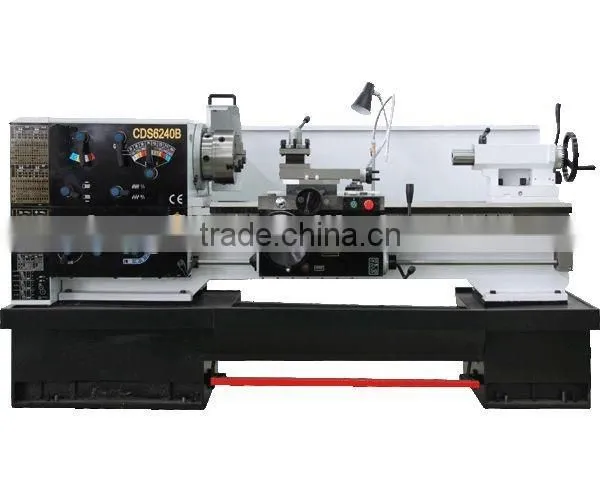

CDS6240B/C Universal Horizontal Lathe
Main Usage:
- It can machine inner circle, outer circle, and end and head surface, taper surface.
- Gap lathe can process the deformation parts. Function is including the drilling and reaming.
- Metric, inch, diametrical pitch, module thread;
Machine Features:
l With CE Certificate, with GAP;
l Standard spindle head: D8; spindle hole diameter:82mm;
l 3-jaw chuck and 4-jaw chuck: Direct coupled type
l Guide rail width: 394mm
l Guide rail hardness: HRC50, Depth1.5mm
High-frequency quenching (hardness HRC50)
l Maximum load capacity between two centers: 500kg
l Standard: the lathe is equipped with left-handed wheel;
right-handed wheel shall be informed specially when placing order;
l Apron iswith longitudinal orcross rapid shift handle;
l Special indication is required iftailstock sleeve is with a scale;
l With mechanical clutch and mechanical braking;
l If choose electromagnetic brake from Taiwan,extra+$224 shall be paid.
Specifications | Unit | Parameter |
Max. swing over bed | mm | 400 |
Max. swing over carriage | mm | 230 |
Max. swing over gap | mm | 700 |
Width of gap | mm | 250 |
Max. length of work piece | mm | 1000/1500/2000 |
Width of guide way | mm | 394 |
Spindle nose |
| D8 |
Spindle speed | rpm | 26~2000 |
Dia. of spindle bore | mm | 82/105 |
Taper of spindle bore |
| 90/1:20 |
Longitudinal feed | mm/rev | 0.044~1.48 |
Cross feed | mm/rev | 0.022~0.74 |
Metric thread | mm | 0.35~80 (53 or 77) |
Inch thread | tpi | 7/16~80 (47) |
Module thread | mm | 0.2~40 (45 or 66) |
Diametrical pitch thread | DP | 7/8~160 (42) |
Max. travel of cross slide | mm | 355 |
Travel of top slide | mm | 150 |
Travel of tailstock quill | mm | 150 |
Diameter of tailstock quill | mm | 75 |
Taper bore of tailstock quill |
| M5 |
Main motor power |
| 10HP(7.5kW) 15HP(11kW.OPTIONAL) |
Wooden box/Pallet packing | mm |
|
Weight | kgs |
