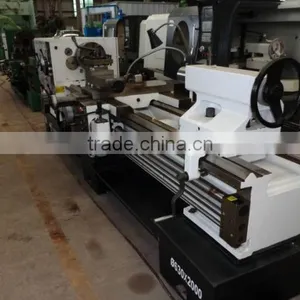

CW6263x2000 manual lathe machine

FOB Price

USD $16,000 - $16,278 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Horizontal	CNC or Not:	Normal
Automatic Grade:	Manual	Max. Swing Diameter:	1000mm	Place of Origin:	Liaoning, China
Brand Name:	DALIAN	Model Number:	CW6263Ex2000 manual lathe machine	Voltage:	220V,380V,415V,440V,480V; 50/60Hz
Power(W):	11/15kW;	Dimension(LWH):	4480x1100x1920mm	Weight:	4150kgs
Certification:	ISO9001:2008; GB/T19001:2008	After-sales Service Provided:	Engineers available to service machinery overseas

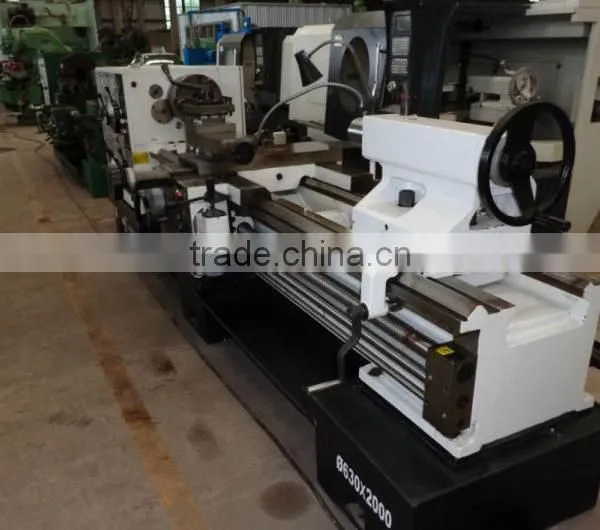

CW6263x2000 manual lathe machine

Main Features

Such manual lathe machine has following features:

It can machine inner circle, outer circle, and end and head surface, taper surface;
Gap lathe can process the deformation parts;
Function is including the drilling and reaming;
Metric, inch, diametrical pitch, module thread;
The bed is made of high-grade cast iron;
The bed is undergoing surface quenching, the hardness can be HRC50;
The noise can be under 83(A);

Main Technical Data

Specifications	Unit	Parameter
Max. swing over bed	mm	630
Max. swing over carriage	mm	350
Distance between two centers	mm	2000
Width of gap	mm	320
Swing over gap	mm	800
Width of guide way	mm	550
Spindle bore diameter	mm	Φ105 / Φ130 opt
spindle nose		C11/D11 opt
Spindle speed	rpm	(18 speeds) 7.5~1000
Longitudinal feed	mm/r	(64) 0.1~24.3
Cross feed	mm/r	(64) 0.05~12.15
Rapid traverse speed	m/min	3.8
Metric thread	mm	(39)1~240
Inch thread	TPI	(26) 14~1
Module thread	mm	(53) 0.5~120
Diametrical pitch thread	D.P	(24) 28~1
Max. travel of cross slide	mm	445
Travel of top slide	mm	200
Main motor power	kW	11
Rapid traverse motor power	kW	1.1
Coolant pump motor power	kW	0.09
Wooden box Pallet packing	mm	4560×1150×2080 4480×1100×1920
Gross/Net weight	kg	5650/4150

Free Std Accessories

Auto Production Line
