Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Manual Double-column Vertical Lathe

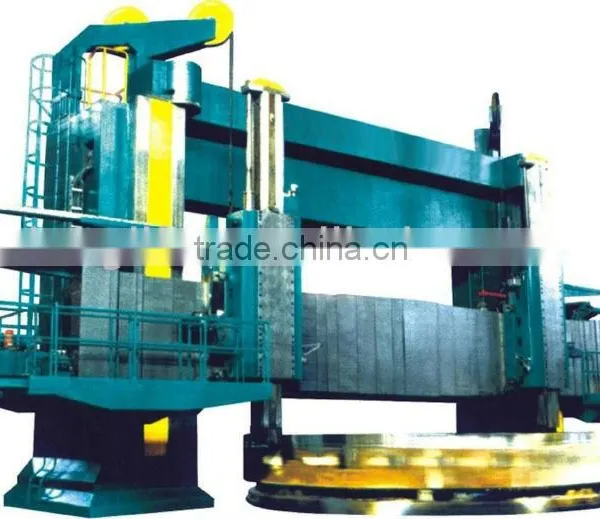

Manual Double-column Vertical Lathe

Name: Manual Double-column Vertical Lathe
Brand: DALIAN
SKU: 102718981
Availability: InStock

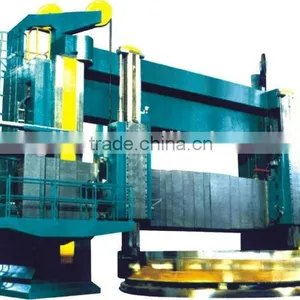

Manual Double-column Vertical Lathe thumbnail-1

Manual Double-column Vertical Lathe photo-1

US$ 45,500 - 45,500 MOQ: 100 Sets

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 6300mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number C5225 C5232 C5240 C5250 C5263 C5280 C52100 C52125

Certification CE; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

Conventional Double Column Vertical Lathe

For detailed information, to: export(at)

Main Technical Specfications

Name	C5225	C5232	C5240	C5250	C5263	C5280	C52100	C52125
Max. turning diameter (mm)	2500	3150	4000	5000	6300	8000	10000	12500
Max. working height of workpiece (mm)	1600 Optional 2000	2000 Optional 2500	1600 Optional 2000/2500/3150	2000 Optional /2500/3000/3150/3650/4150	3000 Optional 3500/4000	4000	4000	4000
Max. weight of workpiece (T)	10	10/30	10/32	30/50	50	100	100	100
Table diameter (mm)	2250	2830	2830/3200	3600/4500	3800 adding bracket panel:6000	5700/6000	7100	7500
Speed range of table (r/min)	2~63	2~63	2~63	1.3~42/0.2~40	0.5~50	0.2~20	0.16~16	0.16~16
Speed-step of table	16	16	16	16 steps stepless	16	16	16	16
Max. torque of table (KN·m)	56	63	63	63/100		460	640	640
Max. cutting resistance of right tool post (KN)	35	35	32	28		80	80	80
Max. cutting resistance of left tool post (KN)	28	40	28	35	63	63	63	63
Travel of right tool post (Horizontal) (mm)	1400	1735	2150	20~2630	3415	-20~4400	-20~5400	-50~6500
Travel of right tool post (Vertical) (mm)	1300/1500	1000/1300/1500	1000/1300/1500	1250/1600	1600/2000	2000	2520
Travel of left tool post (Horizontal) (mm)	1400	1735	2150	20~2630	3415	50~4400
Travel of left tool post (Vertical) (T-Ram) (mm)	1300/1500	1300/1500	1000/1300/1500	1250/1600	1300/1500	2000	2520	2520
Feed range and speed-step of tool post (mm/min)	0.24~145 18 steps	0.24~145 18 steps	0.24~145 18 steps	0.24~145 18steps/0.2~2000 stepless	0.05~200 two gears stepless	0.1~500
Rapid moving speed of tool post (mm/min)	1550	1550	1550	1550/2000		4000	4000	4000
Moving degrees limit of tool post	±30°	±30°	±30°	-15°~+30°	-15°~+30°	-15°~+30°	-15°~+30°	-15°~+30°
Power of main motor(kW)		55	55/75(Max.weight of workpiece:30T )	75/75	75	DC132	DC132	DC132
Weight of machine (T)	32/38	36/45	39~52	55~100	110/115/120
