Specifications
Yao Xing ceramic fiber module:1.low thermal conductivity
2.Excellent thermal shock resistance capability
3.Easy to use
Description:

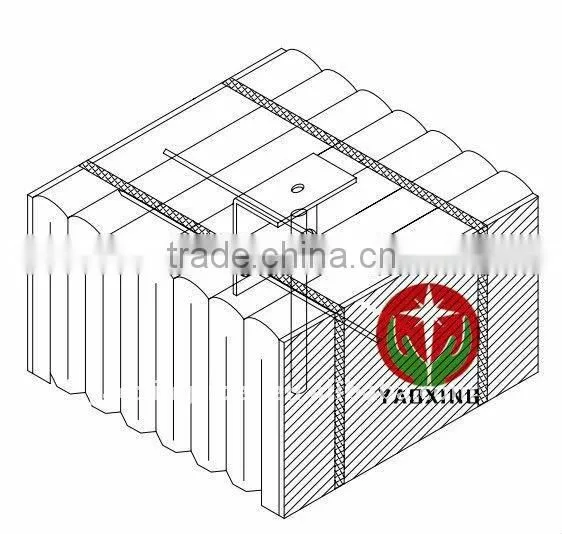

1.A series of ceramic fiber folded module was processed according the fiber module structure,
size by special machine on the ceramic fiber needle blanket which was corresponding material.
In the course of processing, they should be maintained a certain proptional reduction to ensure that compressed to form a integer set without joint between ceramic fiber folded
blanket after ceramic fiber folded module have been built. Owing to the ceramic fiber folded module
expand differently. Ceramic fiber folded module could be fixed to the stud which in the steel board of
industrial furnace by series of anchors.
Characteristic:
Ceramic fiber folded module not only used in furnace, but also brought following benefit with
ended custom: :
1.Folded blanket will impact tight with each other in differently way without gaps after release
from packing.
2.Elastically fiber blanket can withstand mechanical force.
3.The elasticity of fiber blanket could make up distortion of furnace casing and with gaps
between modules.
4.Because of the light weight, the decalescence capability is low as the insulation materials.
5.Low thermal conductivity can save much energy.
Technical Index:
Classification Temperature |
1050 |
1260 |
1400 |
||
Code |
YXTX-189 |
YXTX-289 |
YXTX-389 |
TXTX-489 |
TXTX-589 |
Shrinkage on Heating (%) |
950°C×24h≤-3 |
1000°C×24h≤-3 |
1100°C×24h≤-3 |
1200°C×24h≤-3 |
1350°C×24h≤-3 |
Theoretical Density (kg/m3) |
200±10 |
||||
|
Shot Content (φ≥0.25mm)(%) |
≤15 |
||||
|
Theoretical Thermal Conductivity (W/m·k) |
0.050-0.060(200°C) |
||||
0.095-0.120(400°C) | |||||
0.160-0.195(600°C) | |||||
Al2O3 (%) |
≥44 |
≥45 |
≥45 |
52-55 |
38-40 |
Al2O3+SiO2 (%) |
≥96 |
≥97 |
≥99 |
≥99 |
- |
ZrO2 (%) |
- |
- |
- |
- |
15-17 |
Al2O3+SiO2+ ZrO2 (%) |
- |
- |
- |
- |
≥99 |
Fe2O3 (%) |
≤1.2 |
≤1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
K2O+Na2O (%) |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
Specification (mm) |
300×300×200,According to your requirements |
||||
Package |
Woven Bag/Carton |
||||
Quality Control System |
ISO9001-2000 ,ISO14001-1996 |
||||

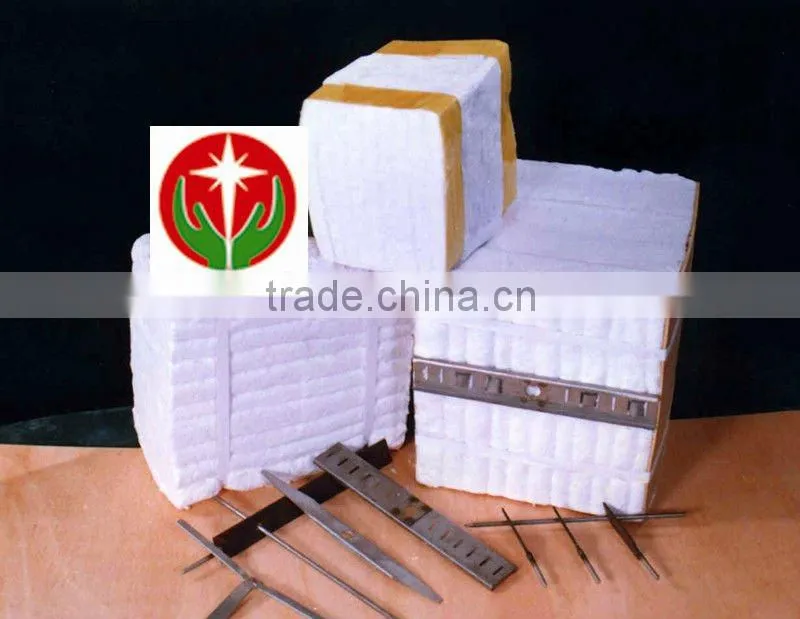

PRODUCT SHOW:
