Home > Chemicals > Inorganic Fiber > Ceramic Fiber > Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module

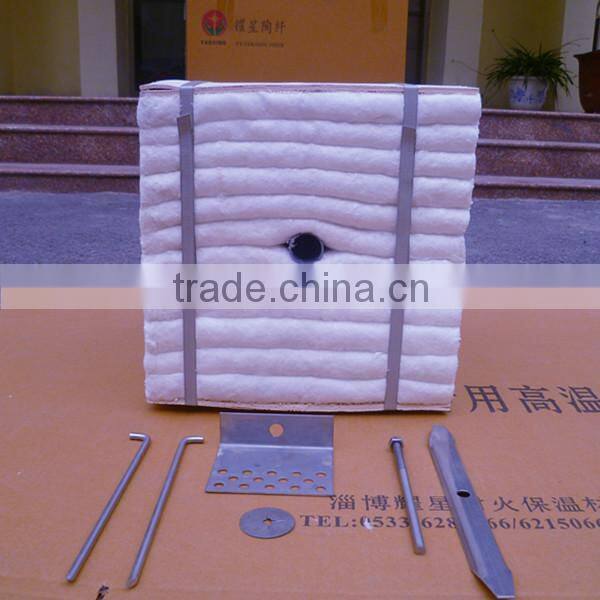

Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module

Name: Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module
Brand: YAOXING
SKU: 102718157
Availability: InStock

$Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module thumbnail-1$

$Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module thumbnail-2$

$Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module thumbnail-3$

$Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module thumbnail-4$

$Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module thumbnail-5$

$Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module thumbnail-6$

$Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module photo-1$

$Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module photo-2$

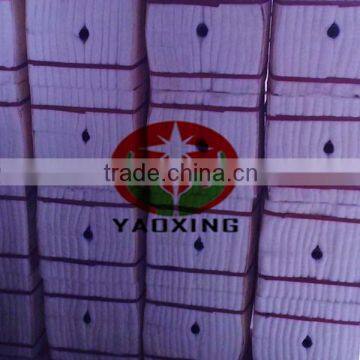

$Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module photo-3$

$Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module photo-4$

$Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module photo-5$

$Ceramic Fiber Module for Oil Heaters Refractory Ceramic Fiber Module Furnace Ceramic Fiber Module photo-6$

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Grade:

HP (High Pure)

Application:

Liners Of Industrial Furnace, Furnace Insulation

Thickness:

200-300mm

Contact Supplier Request Quote Chat Now

Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Grade HP (High Pure)

Thickness 200-300mm

Width 300mm

Length 300mm

Chemical Composition AL2O3≥44%, AL2O3+SiO2≥99%

Working Temperature 1000℃, 1100℃

Fiber Diameter 3μm

Shrinkage (1800 ℉, 3h) <3%

Thermal Conductivity 0.050-0.060

Model Number YXTX-389

Brand Name YAOXING

Place of Origin Shandong, China

Product Description

Product Series:

1.1050 Ceramic Fiber Module YXTX-189

2.1260 Ceramic Fiber Module YXTX-289

3.1260 Ceramic Fiber Module YXTX-389

4.1400 Ceramic Fiber Module YXTX-489

5.1400 Ceramic Fiber Module YXTX-589

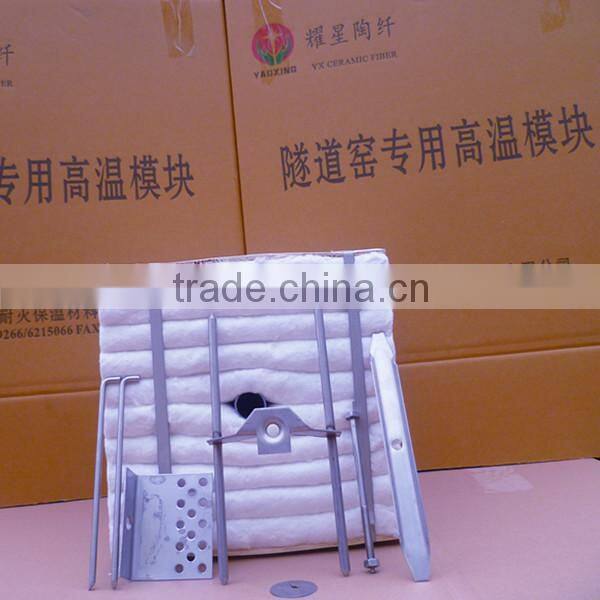

$ceramic fiber module for oil heaters refractory ceramic fiber module furnace ceramic fiber module$

Technical Index

Classification Temperature	1050	1260		1400
Code	YXTX-189	YXTX-289	YXTX-389	TXTX-489	TXTX-589
Shrinkage on Heating (%)	950°C×24h ≤-3	1000°C×24h ≤-3	1100°C×24h ≤-3	1200°C×24h ≤-3	1350°C×24h ≤-3
Theoretical Density (kg/m³)	200±10
Shot Content (φ≥0.25mm)(%)	≤15
Theoretical Thermal Conductivity (W/m·k)	0.050-0.060(200°C)
	0.095-0.120(400°C)
	0.160-0.195(600°C)
Al₂O₃(%)	≥44	≥45	≥45	52-55	38-40
Al₂O₃+SiO₂(%)	≥96	≥97	≥99	≥99	-
ZrO₂(%)	-	-	-	-	15-17
Al₂O₃+SiO₂+ ZrO₂(%)	-	-	-	-	≥99
Fe₂O₃(%)	≤1.2	≤1.0	≤0.2	≤0.2	≤0.2
K₂O+Na₂O (%)	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Specification (mm)	300×300×200,According to your requirements

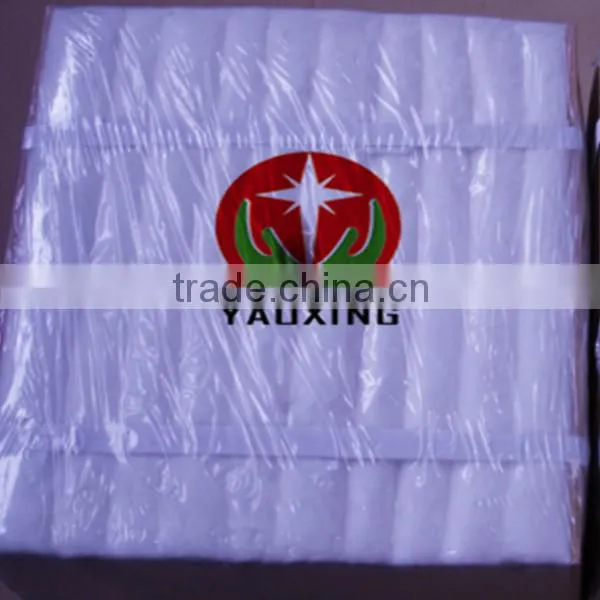

Package	Woven Bag/Carton
Quality Control System	ISO9001-2000 ,ISO14001-1996

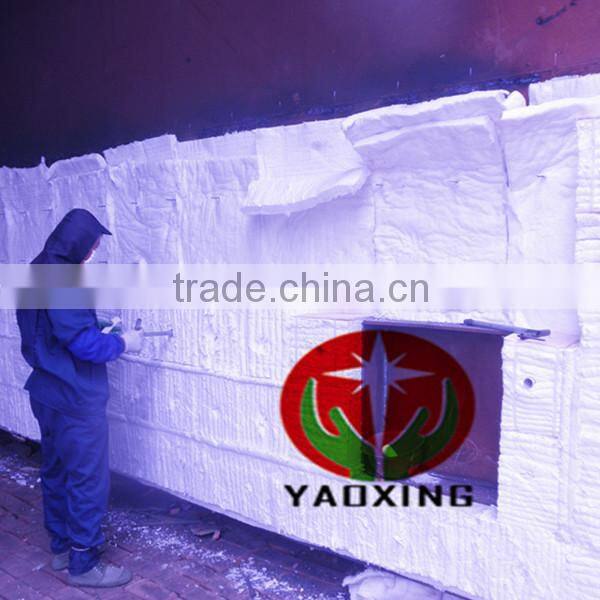

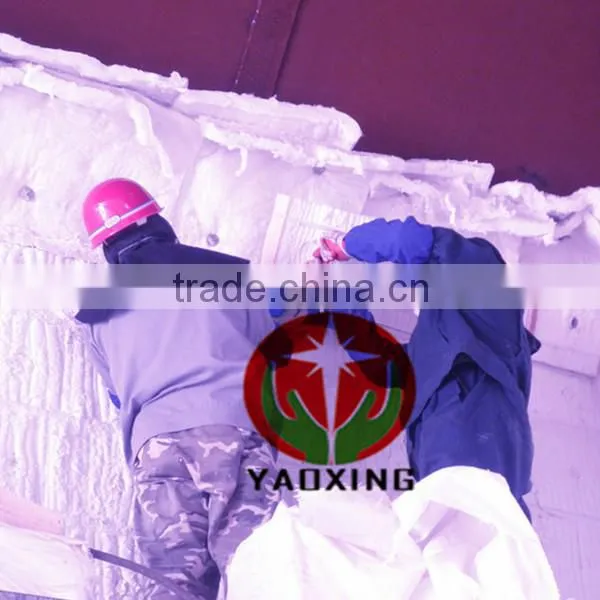

Application:

Furnace lines of various industrial furnace and heating equipment in metallurgy,

machine, construction and material, petrol-chemical and ferrous metal industry.

1.Oil heaters

2.Reformer

3.Forge furnaces

4.Process heaters

5.Preheating furnaces

6.Crude oil heaters

7.Fume incinerators

8.Tunnel kilns

9.Cracking Furnaces

10.Shuttle kilns

11.Annealing furnaces

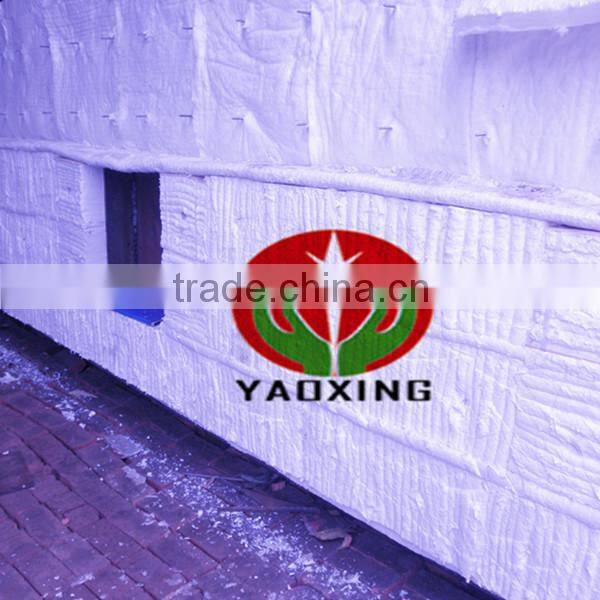

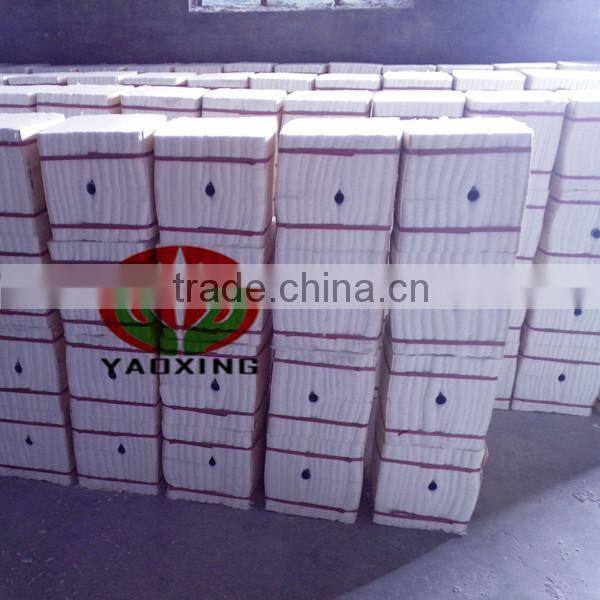

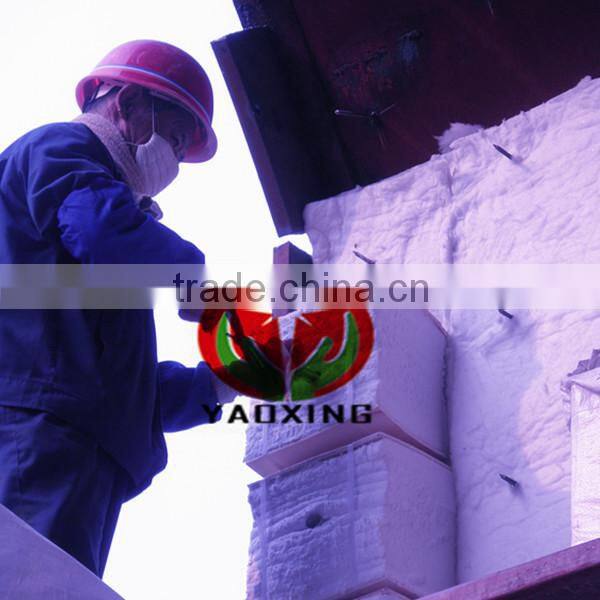

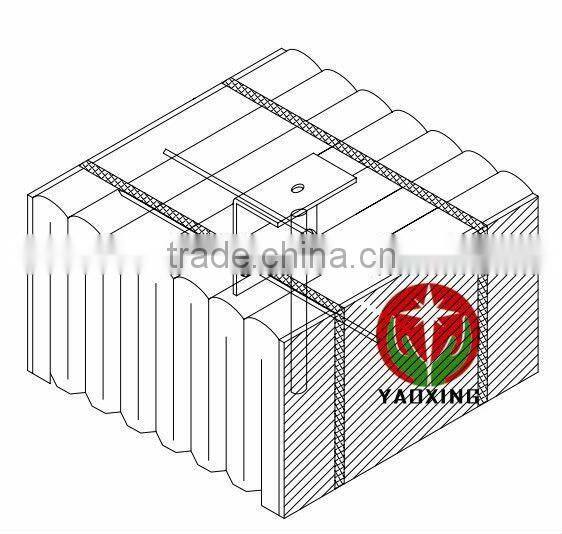

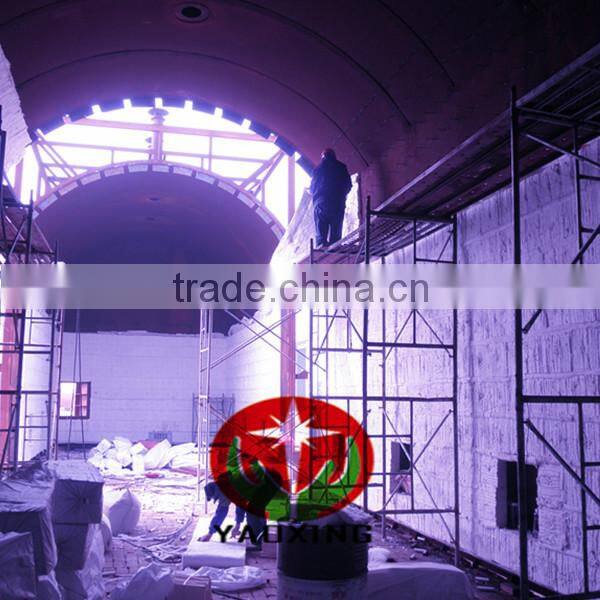

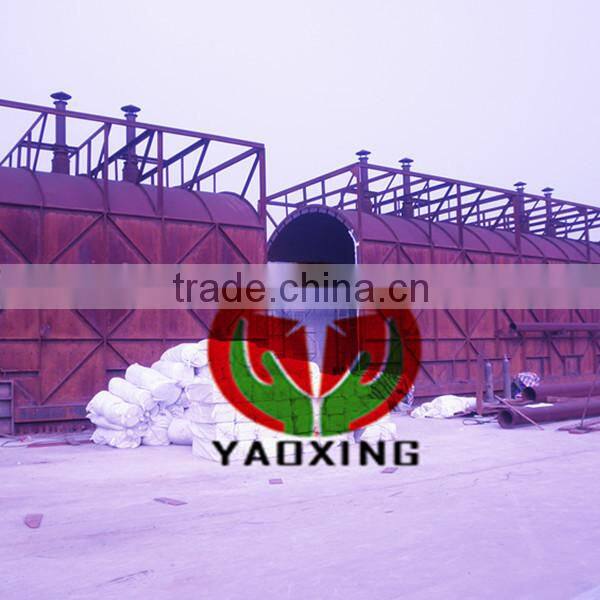

$ceramic fiber module for oil heaters refractory ceramic fiber module furnace ceramic fiber module$ $ceramic fiber module for oil heaters refractory ceramic fiber module furnace ceramic fiber module$ $ceramic fiber module for oil heaters refractory ceramic fiber module furnace ceramic fiber module$ $ceramic fiber module for oil heaters refractory ceramic fiber module furnace ceramic fiber module$ $ceramic fiber module for oil heaters refractory ceramic fiber module furnace ceramic fiber module$ $ceramic fiber module for oil heaters refractory ceramic fiber module furnace ceramic fiber module$
