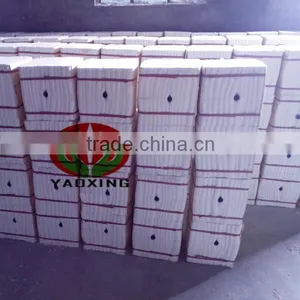

Help CenterCeramic Fiber Module Process Heaters Heat Resistant Ceramic Modules Refractory Ceramic Fiber Module
Related Products
-
HP Ceramic Fiber Heating ModuleUS$ 14.15 - 18.87MOQ: 100 Pieces -
Oil Forge Furnaces Ceramic Fibre Modules Refractory Ceramic Fiber Module Heat Insulation Ceramic ModuleNegotiableMOQ: 100 Pieces
-
Oil Heaters Heat Insulation Ceramic Fiber Module Refractory Ceramic Fiber Module Ceramic ModuleNegotiableMOQ: 100 Pieces
-
Refractory Thermal Insulation Ceramic Fiber ModuleUS$ 9.3 - 15.5MOQ: 100 Pieces
-
Ceramic Fiber Module With Anchor System(HP)US$ 9.3 - 15.5MOQ: 100 Pieces
Characteristic

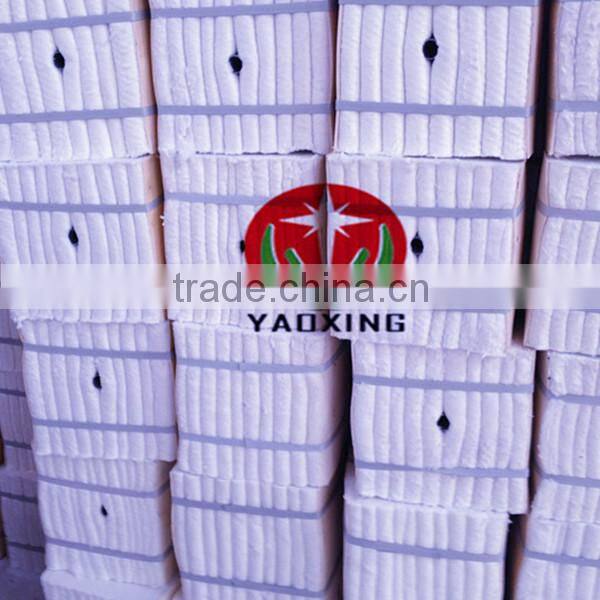

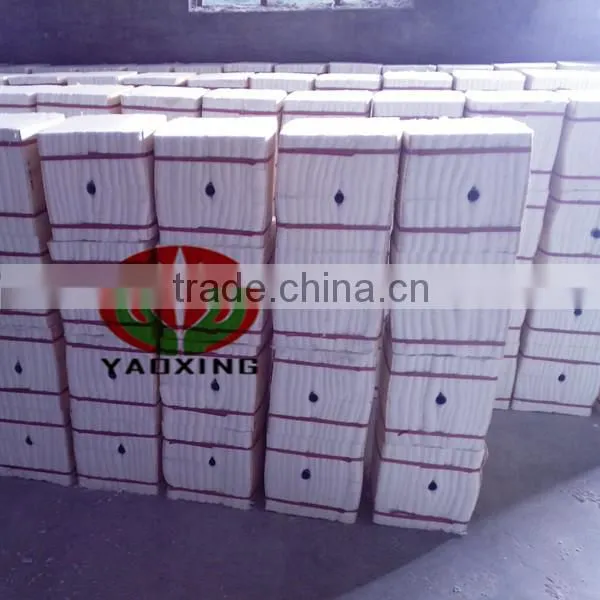

Ceramic fiber folded module not only used in furnace,
but also brought following benefit with ended custom
1.Folded blanket will impact tight with each other in differently way without gaps after release from packing.
2.Elastically fiber blanket can withstand mechanical force.
3.The elasticity of fiber blanket could make up distortion of furnace casing and with gaps between modules.
4.Because of the light weight, the decalescence capability is low as the insulation materials.
5.Low thermal conductivity can save much energy.
6.Excellent thermal shock resistance capability.
7.Can be betaken immediately as soon as being installed, for there is no need to be dried and maintained.
8.The Anchor system should be far away from the hot surface of the modules and kept in the lower temp.
Technical Index
|
Classification Temperature |
1050 |
1260 |
1400 |
||
Code |
YXTX-189 |
YXTX-289 |
YXTX-389 |
TXTX-489 |
TXTX-589 |
|
Shrinkage on Heating (%) |
950°C×24h ≤-3 |
1000°C×24h ≤-3 |
1100°C×24h ≤-3 |
1200°C×24h ≤-3 |
1350°C×24h ≤-3 |
|
Theoretical Density (kg/m3) |
200±10 |
||||
|
Shot content (φ≥0.25mm)(%) |
≤15 |
||||
|
Theoretical Thermal Conductivity (W/m·k) |
0.050-0.060(200°C) |
||||
0.095-0.120(400°C) | |||||
0.160-0.195(600°C) | |||||
Al2O3 (%) |
≥44 |
≥45 |
≥45 |
52-55 |
38-40 |
Al2O3+SiO2 (%) |
≥96 |
≥97 |
≥99 |
≥99 |
- |
ZrO2 (%) |
- |
- |
- |
- |
15-17 |
Al2O3+SiO2+ ZrO2 (%) |
- |
- |
- |
- |
≥99 |
Fe2O3 (%) |
≤1.2 |
≤1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
K2O+Na2O (%) |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
Specification (mm) |
300×300×200,According to your requirements |
||||
Package |
Woven Bag/Carton |
||||
Quality Control System |
ISO9001-2000 ,ISO14001-1996 |
||||
Application:

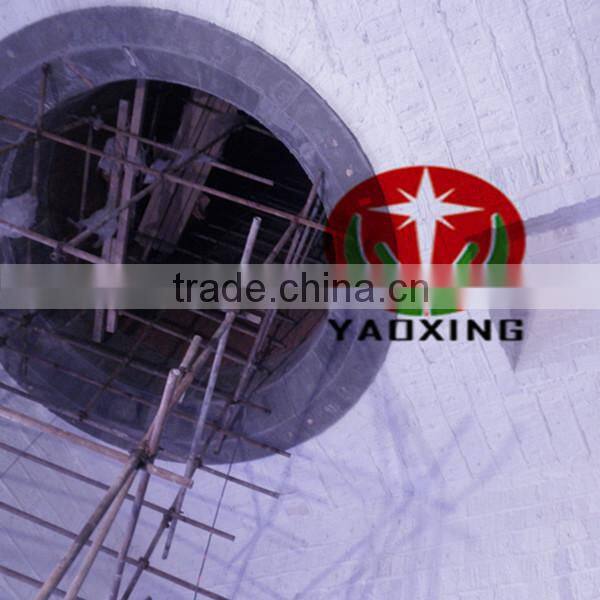

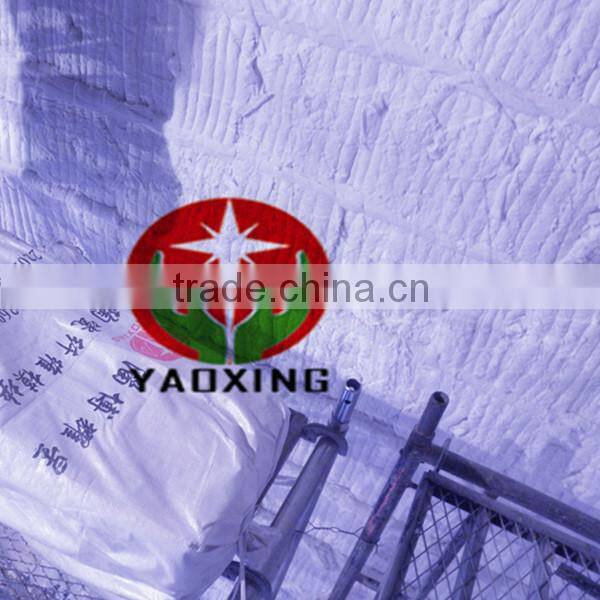

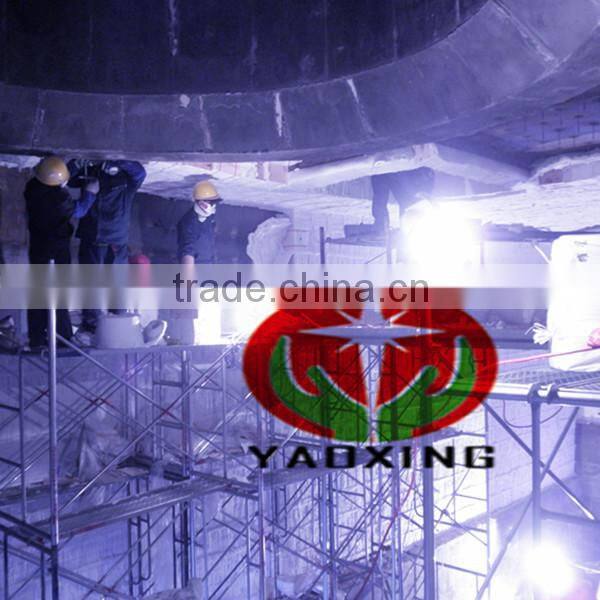

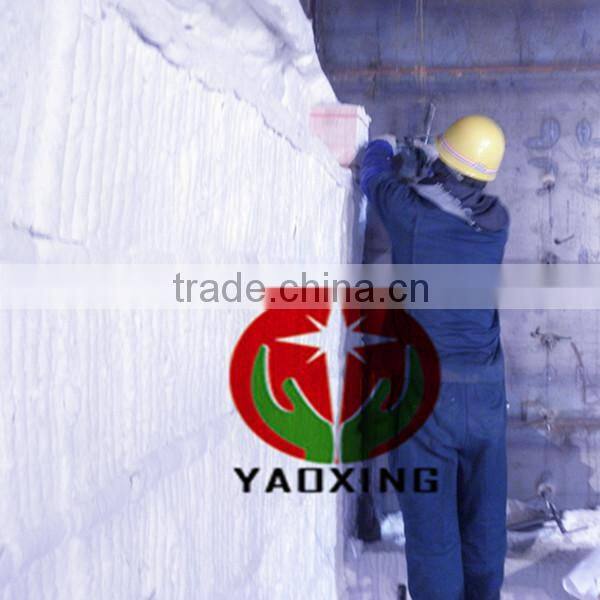

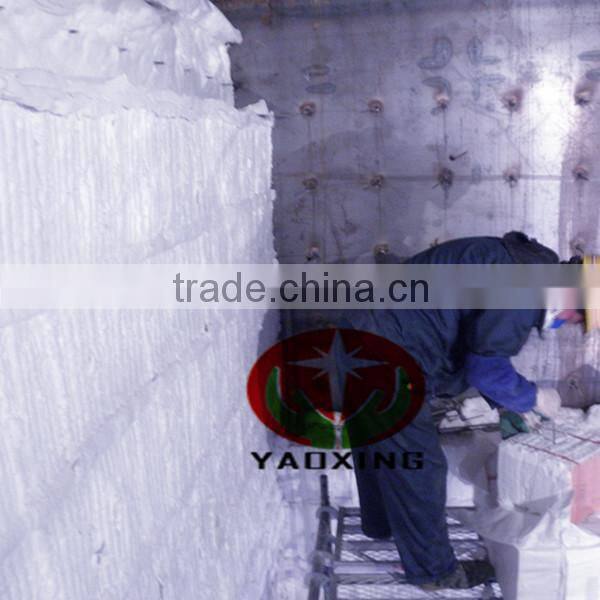

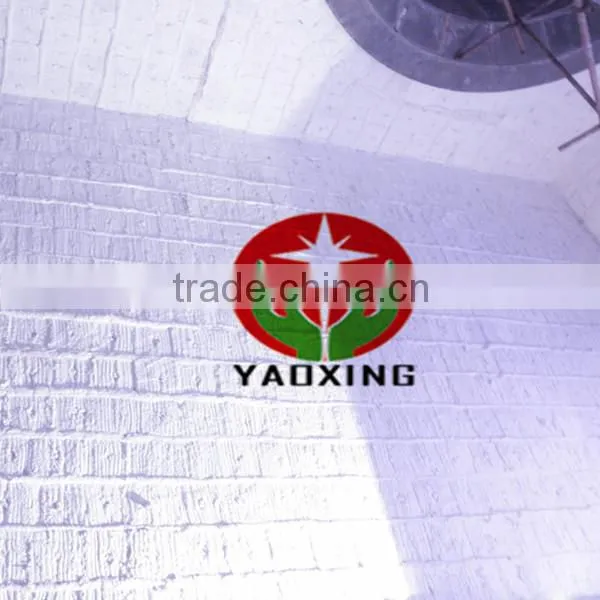

Furnace lines of various industrial furnace and heating equipment in metallurgy,
machine, construction and material, petrol-chemical and ferrous metal industry.
1.Oil heaters
2.Reformer
3.Forge furnaces
4.Process heaters
5.Preheating furnaces
6.Crude oil heaters
7.Fume incinerators
8.Tunnel kilns
9.Cracking Furnaces
10.Shuttle kilns
11.Annealing furnaces
