Home > Chemicals > Inorganic Fiber > Ceramic Fiber > Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module

Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module

Name: Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module
Brand: Yaoxing
SKU: 102718237
Availability: InStock

$Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module thumbnail-1$

$Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module thumbnail-2$

$Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module thumbnail-3$

$Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module thumbnail-4$

$Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module thumbnail-5$

$Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module thumbnail-6$

$Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module photo-1$

$Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module photo-2$

$Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module photo-3$

$Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module photo-4$

$Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module photo-5$

$Refractory Ceramic Fiber Module The Kiln Lining Insulation Ceramic Fiber Module High Aluminum Ceramic Fiber Module photo-6$

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Yaoxing

Model Number:

YXTX-489

Contact Supplier Request Quote Chat Now

Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Yaoxing

Model Number YXTX-489

Application The kiln lining insulation, The kiln lining insulation

Grade HA (High Aluminum)

Dimensions 300*300*200/250mm

Working Temperature 1350C

Fiber Diameter 3um

Thermal Conductivity 0.045

Shrinkage (1800℉, 3h) <3%

Product Description

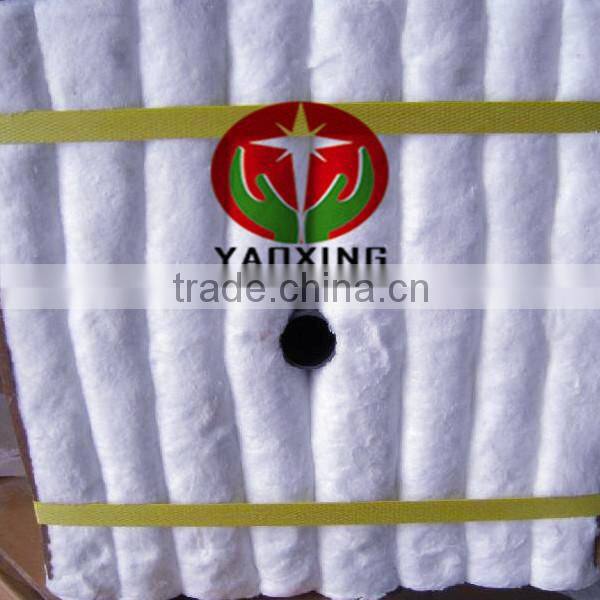

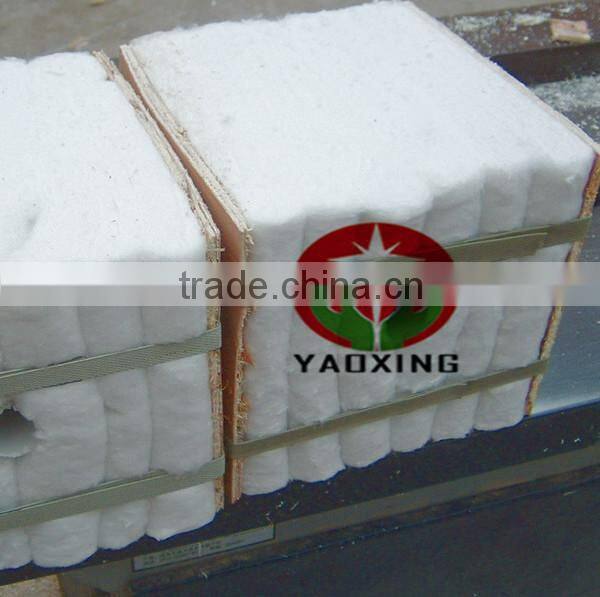

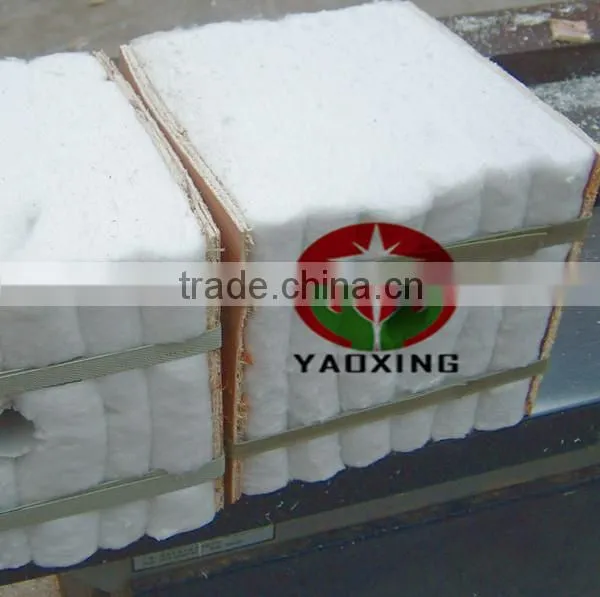

Ceramic Fiber Modules

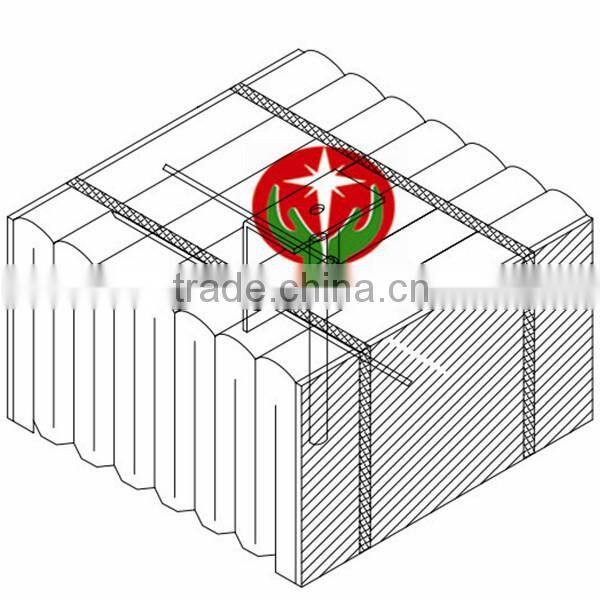

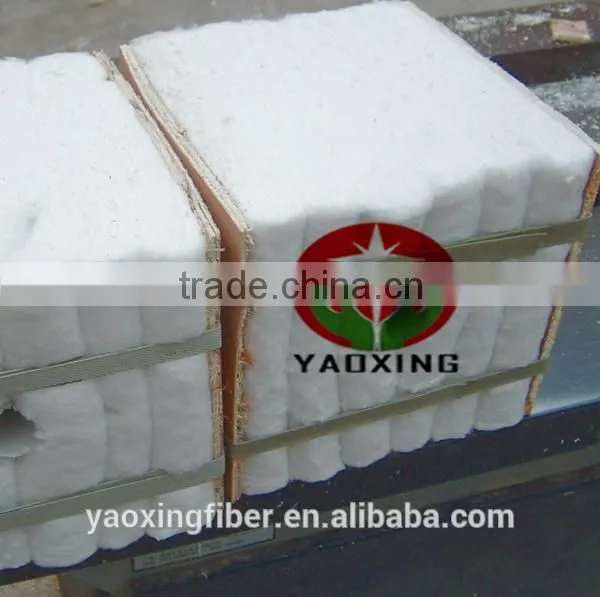

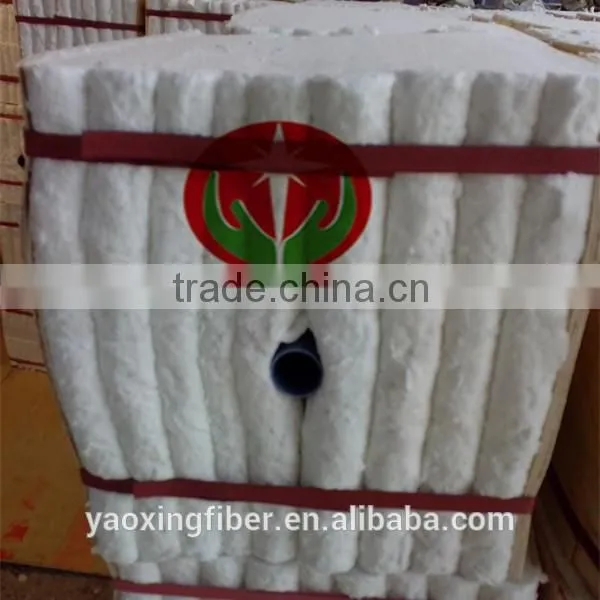

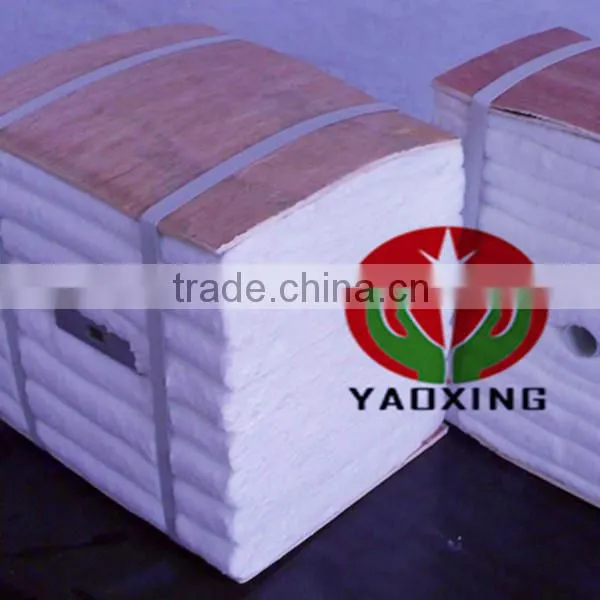

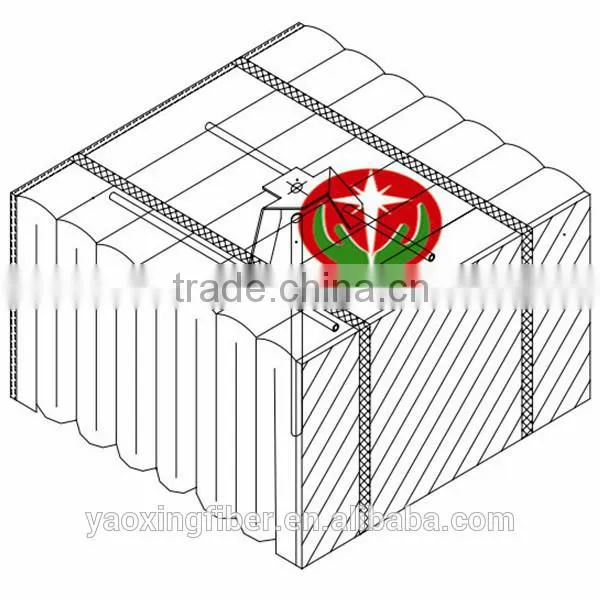

YAO XING modules are made from ceramic fiber blanket stacked with cut edges exposed,

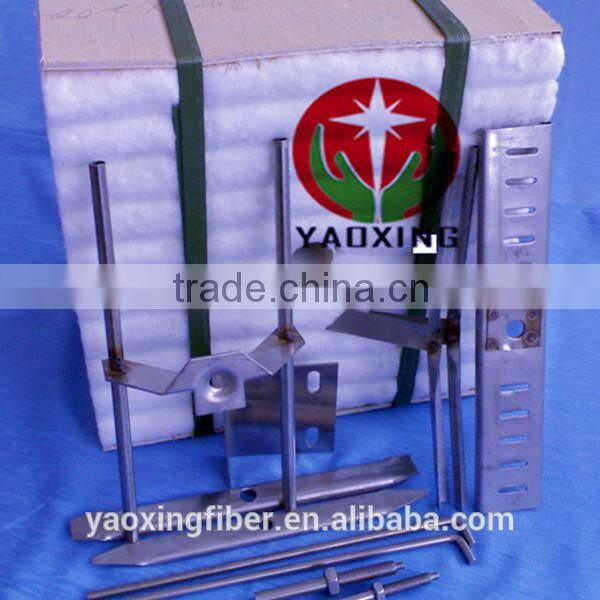

and anchor systems to enable quick, easy and efficient installation in most furnace linings.

Theseprefabricated modules are designed to meet the thermal insulation requirements of

high temperature furnaces.
Classification Temperature 1050°C ,1260°C, 1400°C,
Density: 200/220kg/m3

Advantages

1. Excellent thermal and physical stability

2. Low thermal conductivity

3. Low heat storage

4. Excellent corrosion resistance

5. Faster temperature cycling

6. Fast and easy installation

Applications

1. Oil heaters

2. Reformer
3. Forge furnaces
4. Process heaters
5. Preheating furnaces

6. Crude oil heaters
7. Fume incinerators
8. Tunnel kilns
9. Cracking Furnaces

10. Shuttle kilns

11. Annealing furnaces

Technical Index:

Classification Temperature	1050	1260		1400
Code	YXTX-189	YXTX-289	YXTX-389	TXTX-489	TXTX-589
Shrinkage on Heating (%)	950°C×24h ≤-3	1000°C×24h ≤-3	1100°C×24h ≤-3	1200°C×24h≤-3	1350°C×24h ≤-3
Theoretical Density (kg/m3)	200±10
Shot Content (φ≥0.25mm)(%)	≤15
Theoretical Thermal Conductivity (W/m·k)	0.050-0.060(200°C)
	0.095-0.120(400°C)
	0.160-0.195(600°C)
Al2O3 (%)	≥44	≥45	≥45	52-55	38-40
Al2O3+SiO2 (%)	≥96	≥97	≥99	≥99	-
ZrO2 (%)	-	-	-	-	15-17
Al2O3+SiO2+ ZrO2 (%)	-	-	-	-	≥99
Fe2O3 (%)	≤1.2	≤1.0	≤0.2	≤0.2	≤0.2
K2O+Na2O (%)	≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Specification (mm)	300×300×200,According to your requirements

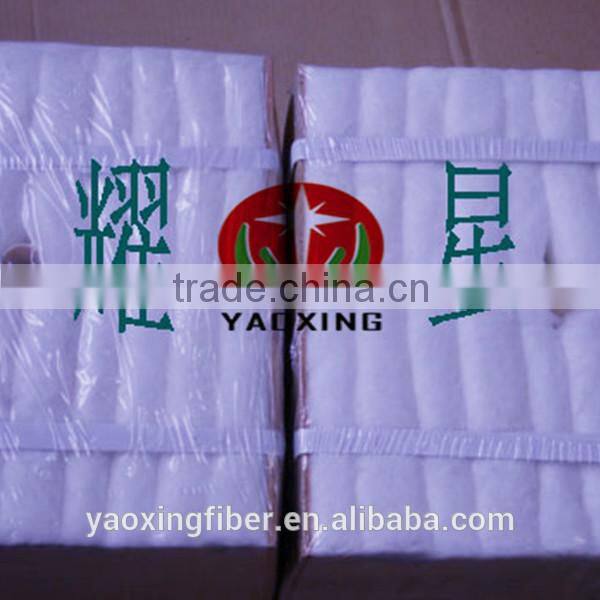

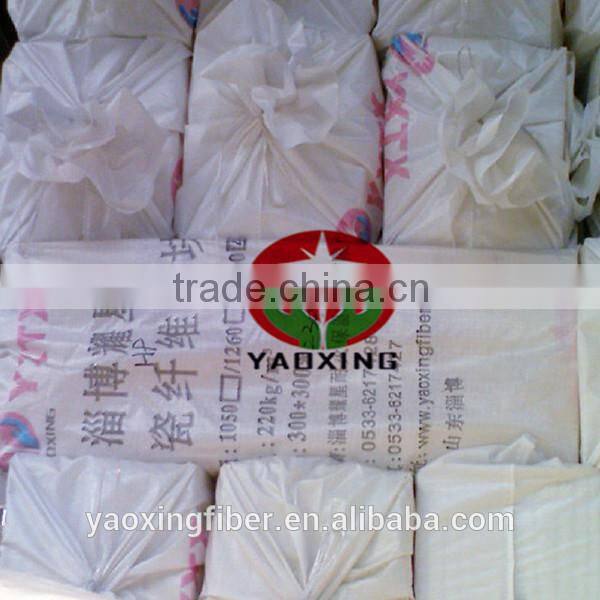

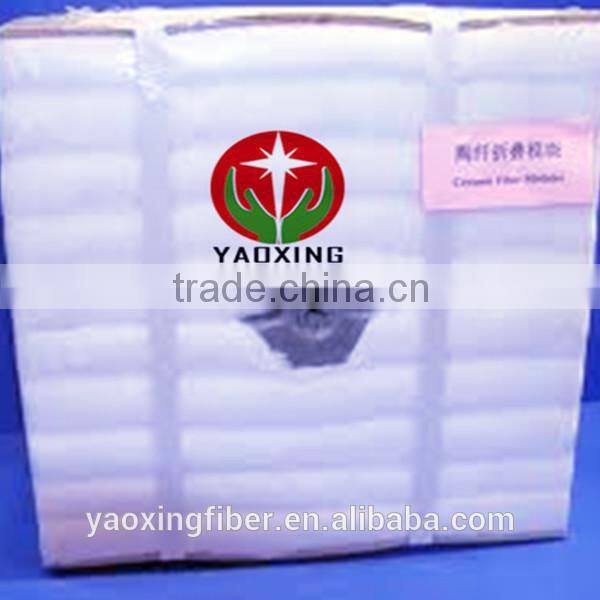

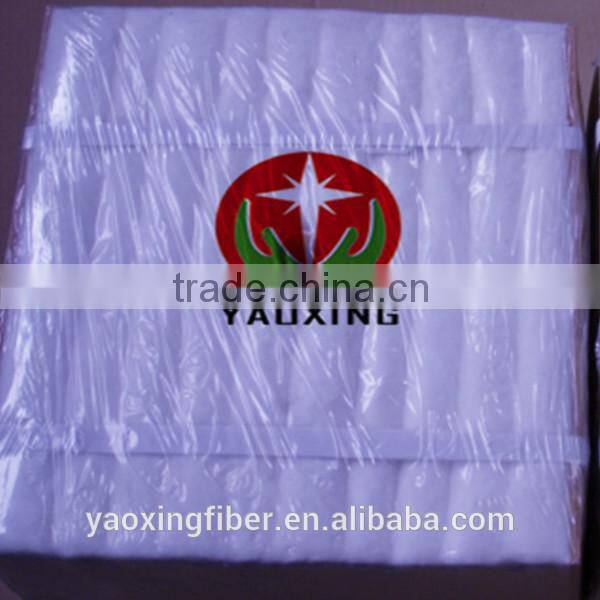

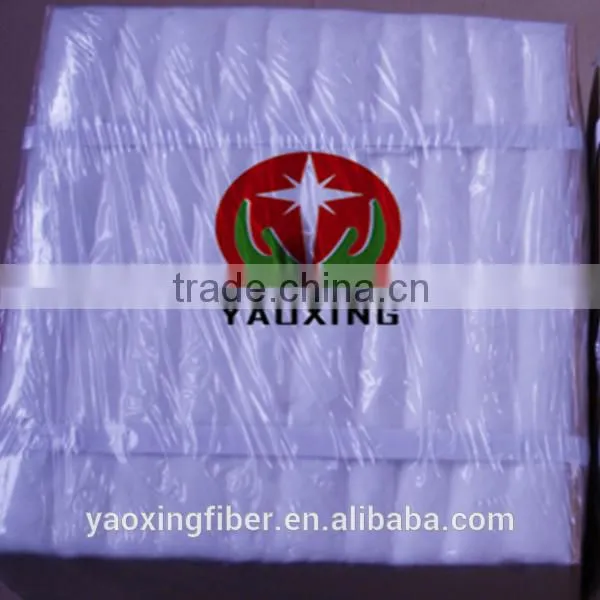

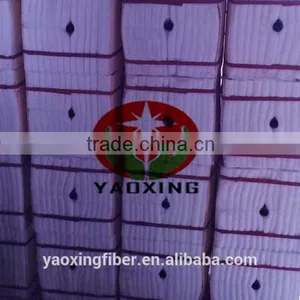

Package	Woven Bag/Carton
Quality Control System	ISO9001-2000 ,ISO14001-1996
