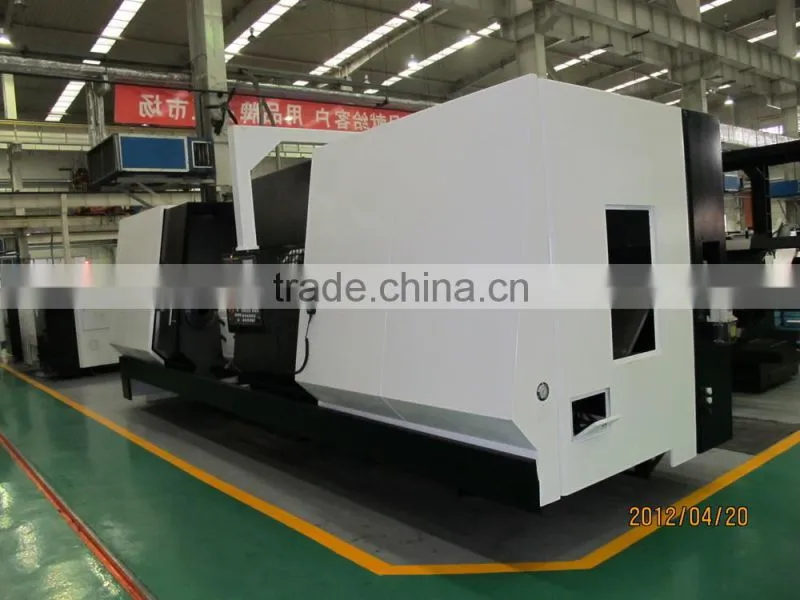

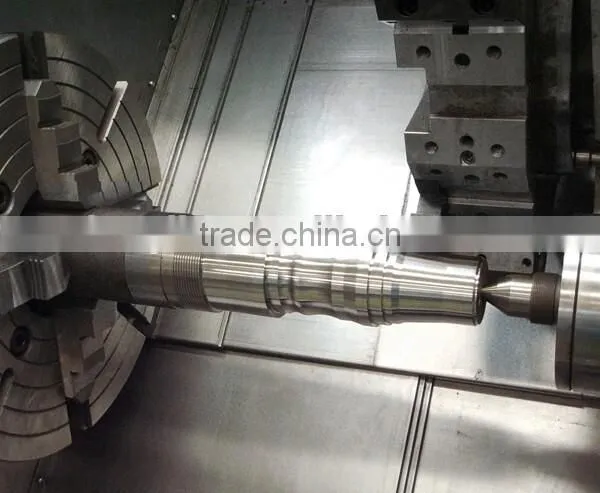

Help CenterDL25M High Class 12 Station Slant Bed Cnc Lathe
Related Products
-
DL50x2000 CE Heavy Machining Slant Bed CNC LatheUS$ 313,977 - 347,055MOQ: 1 Set -
DL32Mx2000 CE Slant Bed Cnc Turning Lathe Machine for SaleUS$ 114,030 - 115,147MOQ: 1 Set
-
CE Hot-sale CNC Slant Bed LatheUS$ 85,294 - 282,573MOQ: 1 Set
-
DL20Mx600 China Inclined Cnc Lathe MachineUS$ 52,030 - 55,470MOQ: 1 Set
-
CE Slant Bed CNC Lathe With 12-station Turret Hot-sale DL30MUS$ 38,970 - 247,058MOQ: 1 Set
DL25M slant bed cnc lathe Technical Specifications
Such cnc column vertical lathe has following features:
1. Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability;
2. The machine bed is made of heat stabilized cast-iron;
3. A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining;
4. Various configuration are available with spindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm;
5. CE standard and CE Certificate;
45°overall inclined bed, spindle Stepless Speed, 10″hydraulic Solid chuck, 12-station hydraulic turret, Hydraulic tailstock, Lateral waste device, Closed-end protection, box guideway.
Specifications |
Unit |
Parameter |
Parameter |
Swing over bed |
mm |
Φ520 |
Φ520 |
Center distance |
mm |
1000 |
1500 |
Max. turning diameter r(Shafts / Discs) |
mm |
Φ310/Φ500 |
Φ310/Φ500 |
Guide way type |
mm |
box-type |
box-type |
Chuck size |
|
10" |
10" |
Spindle nose |
|
ISO A2-8 |
ISO A2-8 |
Spindle speed |
rpm |
35~3500 |
35~3500 |
Main spindle motor power (S6) |
kW |
18.5(22) |
18.5(22) |
Spindle bore diameter |
mm |
Φ88 |
Φ88 |
X-axis travel |
mm |
260 |
260 |
Z-axis travel |
mm |
1100 |
1600 |
X-axis rapid traverse |
m/min |
12 |
12 |
Z-axis rapid traverse |
m/min |
12 |
12 |
Positioning accuracy |
mm |
(X)0.016 (Z)0.025 |
(X)0.016 (Z)0.025 |
Repeat positioning accuracy |
m/min |
(X)0.007 (Z)0.010 |
(X)0.007 (Z)0.010 |
Turret: number of stations |
mm |
12 |
12 |
Tool size |
mm |
25×25 |
25×25 |
Tailstock quill diameter |
mm |
Φ100 |
Φ100 |
Tailstock quill travel |
mm |
139 |
139 |
Tailstock taper |
MT |
5 |
5 |
Machine size: L×W×H |
mm |
4834×1830×1977 |
5334×1830×1977 |
Net weight |
kg |
7800 |
8300 |
Item |
Specifications |
Quantities |
Remark |
Foundation Sizing Block |
|
6 sets |
1000 |
Foundation Sizing Block |
|
8 sets |
1500 |
Tool Holders for ID Tools |
|
4 sets |
|
Right angle coupling sparge pipe |
|
12 sets |
|
Locking Device for Tools |
|
8 set |
|
Tool Sleeves for Inner Hole |
Φ32 |
1 set |
|
Tool Sleeves for Inner Hole |
Φ25 |
1 set |
|
Tool Sleeves for Inner Hole |
Φ20 |
1 set |
|
Soft Jaw |
|
1 set |
For Hydraulic Chuck |
Foot Switch |
|
1 set |
|
Chip Handcart |
|
1 set |
|
Technical Data |
|
1 set |
|
CNC Controller |
0i-TD |
1 |
FANUC Corp. |
Heat Exchanger for Electrical Cabinet |
|
1 |
China |
Lubrication System |
|
1 |
Taiwan or its Joint-venture |
Hydraulic Component |
|
1 |
China |
Main Electronic Components |
|
1 |
Japan or Joint-venture |
Spindle Chuck and Oil Cylinder |
|
1 |
Auto Strong Taiwan |
Hydraulic Turret |
|
1 |
DGC |
Auto Chip Conveyor System |
|
1 |
Yantai |
Spindle Bearing |
|
1 |
NSK |
X/Z -axis Bearing |
|
1 |
NSK |
X/Z -axis Ball-screw |
|
1 |
DGC |
Main Drive Belt |
|
1 |
Japan Or USA |
Notched Belt |
|
1 |
Japan Or USA |
