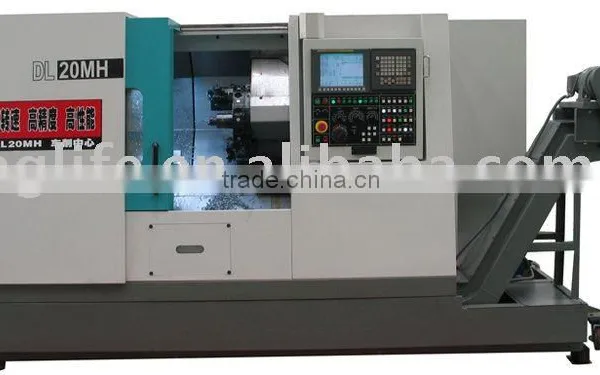

The new DL series of CNC slant bed lathes with rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability. The machine bed is made of heat stabilized cast-iron.Varous configuration are available with spindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm,A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining.
Item |
DL-20MH |
DL-30MH |
|
500 |
900 |
635×950 |
|
Max. swing over bed (mm) |
460 |
635 |
|
Max. turning length(mm) |
500 |
900 |
950 |
Max. turning dia(various shafts)(mm) |
260 |
300 |
|
Max. turning dia(discs)(mm) |
380 |
600 |
|
Chuck size |
8" |
12" |
|
Spindle nose |
ISOA2-6 |
ISOA2-10 |
|
Spindle speed(r/min) |
45~4500 |
30~3000 |
|
Main spindle motor power(kW) |
11/15 |
18.5/22 |
|
Dia. of spindle through hole(mm) |
76 |
88 |
|
Max. Bar dia(mm) |
65 |
74 |
|
Min. resolution |
0.001 |
0.001 |
|
X/Z axis travel(mm) |
265/700 |
265/1000 |
335/1110 |
Rapid traverse X and Z axis(mm/min) |
24/24 |
24/30 |
|
Cutting feed X and Z axis(mm/min) |
0~5000 |
0~5000 |
|
X/Z servo motor torque(Nm) |
12/12 |
22/22 |
|
Positioning precision of X/Z axis |
0.01/0.012 |
0.016/0.0025 |
|
Repetitive positioning precision of X/Z axis |
0.004/0.006 |
0.007/0.010 |
|
Differential of forward to reverse |
0.005/0.006 |
0.006/0.012 |
|
Turret type/Number of stations |
live tooling could be located on all 12 position |
||
Tool shank size(mm) |
25×25 |
32×25 |
|
Mode for turret selection |
random |
random |
|
Indexing time(one step/full step)(s) |
0.3/1.85 |
0.3/1.85 |
|
Quill dia(mm) |
85 |
140 |
|
Quill travel(mm) |
139 |
150 |
|
Spindle taper |
MT.5 |
MT.5 |
|
Max. tail stock travel(mm) |
490 |
650 |
|
NC system |
SIEMENS 840D |
SIEMENS 840D |
|
Incline angle of bed guide way to horizontal |
slant60° |
slant45° |
|
Guide way of saddle side |
linear way |
linear way |
|
Machine length(mm) |
4140 |
5024 |
|
Machine width(mm) |
1797 |
1905 |
|
Machine height(mm) |
1795 |
2050 |
|
Net machine weight(kg) |
4500 |
8500 |
|
Gross machine weight(kg) |
5500 |
9500 |
|
Package size(L×W×H )(mm) |
3780×2200×2450 |
5800×2200×2400 |
|
