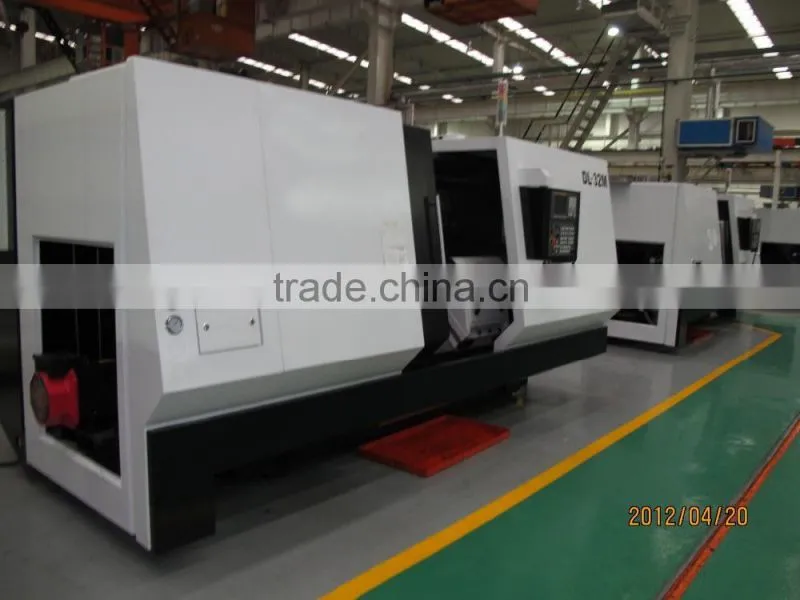

Help CenterDL50x2000 CE Heavy Machining Slant Bed CNC Lathe
Related Products
-
DL32Mx2000 CE Slant Bed Cnc Turning Lathe Machine for SaleUS$ 114,030 - 115,147MOQ: 1 Set -
CE Hot-sale CNC Slant Bed LatheUS$ 85,294 - 282,573MOQ: 1 Set
-
DL20Mx600 China Inclined Cnc Lathe MachineUS$ 52,030 - 55,470MOQ: 1 Set
-
CE Slant Bed CNC Lathe With 12-station Turret Hot-sale DL30MUS$ 38,970 - 247,058MOQ: 1 Set
-
CE Economic Slant Bed CNC Lathe CL15 for Sales PromotionUS$ 39,653 - 51,470MOQ: 1 Set
1. Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability;
2. The machine bed is made of heat stabilized cast-iron;
3. A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining;
4. Various configuration are available with spindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm;
Standard Configuration
5. 70° inclined bed split and box guide way;
6. spindle stepless speed;

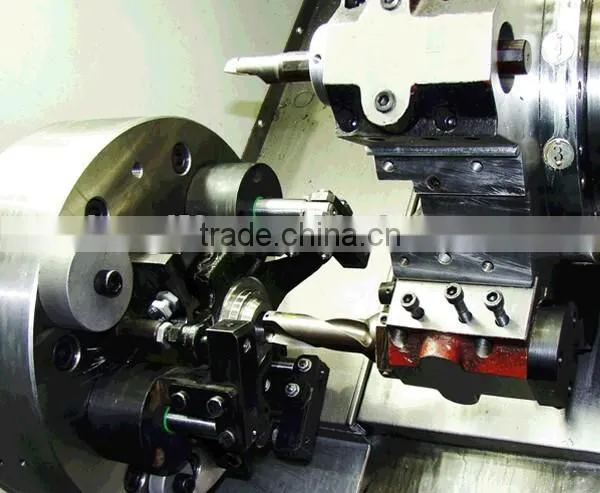

7. 12-station hydraulic turret;
8. 15″ hydraulic Solid chuck and Hydraulic tailstock;
9. Lateral waste device and Closed-end protection;
Specifications |
Unit |
Parameter |
Swing over bed |
mm |
Φ1000 |
Center distance |
mm |
2000 |
Max. turning diameter(Shafts/ Discs) |
mm |
Φ800/1000 |
Guide way type |
mm |
box-type |
Chuck size |
mm |
15" |
Spindle nose |
|
ISO A2-15 |
Spindle speed |
rpm |
50~1200 |
Main spindle motor power(S6) |
kW |
22(30) |
Spindle bore diameter |
mm |
Φ100 |
X-axis travel |
mm |
500 |
Z-axis travel |
mm |
4060 |
X-axis rapid traverse |
m/min |
12 |
Z-axis rapid traverse |
m/min |
12 |
Positioning accuracy |
mm |
(X)0.019 (Z)0.040 |
Repeat positioning accuracy |
mm |
(X)0.0012 (Z)0.020 |
Turret: number of stations |
mm |
12 |
Tool size |
mm |
32×25 |
Tailstock quill diameter |
mm |
Φ180 |
Tailstock quill travel |
mm |
180 |
Tailstock taper |
MT |
6 |
Machine size: L×W×H |
mm |
6600×2852 |
Net weight |
T |
25, |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
