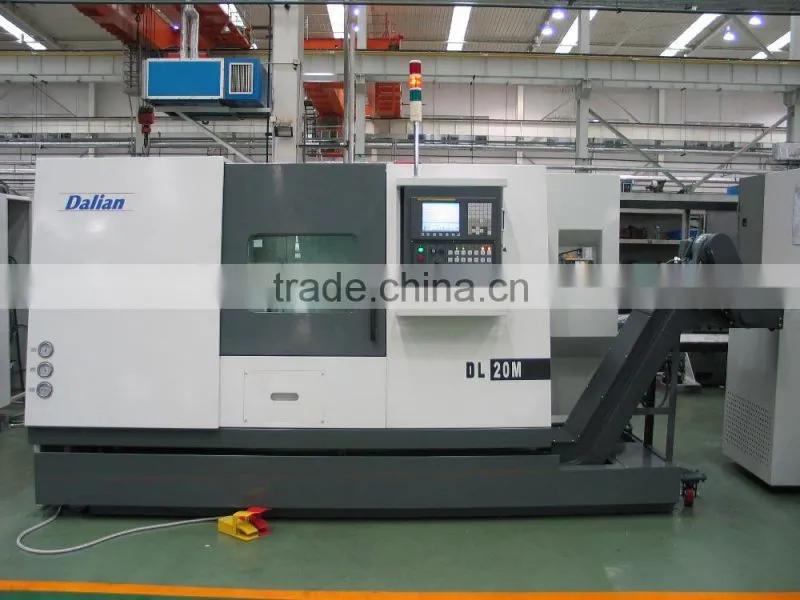

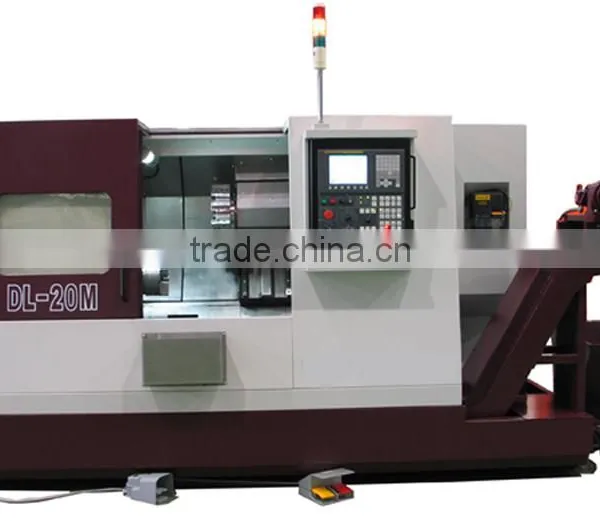

Help CenterDL20Mx600 China Inclined Cnc Lathe Machine
Related Products
-
CE Slant Bed CNC Lathe With 12-station Turret Hot-sale DL30MUS$ 38,970 - 247,058MOQ: 1 Set -
CE Economic Slant Bed CNC Lathe CL15 for Sales PromotionUS$ 39,653 - 51,470MOQ: 1 Set
-
DL32M Slant Bed CNC Lathe With CE for Sales PromationUS$ 105,271 - 151,429MOQ: 1 Set
-
CE Light-duty Slant Bed CNC Lathe Hot-sale CL15 for Sales PromationUS$ 35,030 - 51,470MOQ: 1 Set
-
DL Series CE High Class Cnc Turning Lathe Machine/slant Bed Cnc Lathe MachineUS$ 31,004 - 261,575MOQ: 1 Set
1. Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability;
2. The machine bed is made of heat stabilized cast-iron;
3. A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining;
4. Various configuration are available with spindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm;
Standard Configuration
5. 45° inclined bed split and box guide way;
6. spindle stepless speed;

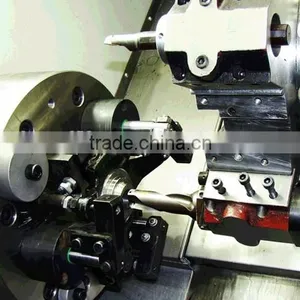

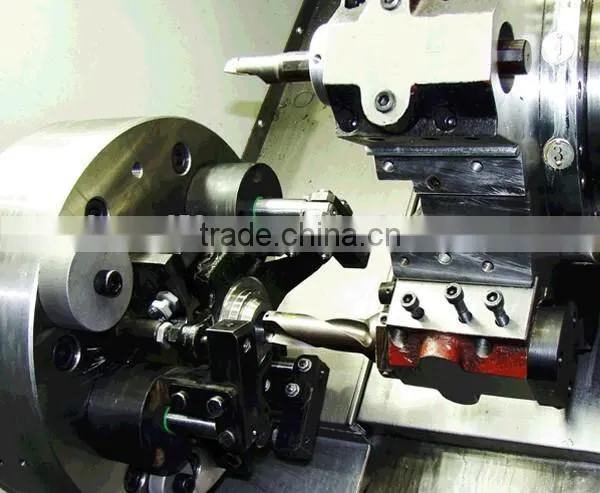

7. 12-station hydraulic turret;
8. 8″ hydraulic Solid chuck and Hydraulic tailstock;
9. Lateral waste device and Closed-end protection;
Specifications |
Unit |
DL20Mx600 inclined cnc lathe machine |
Swing over bed |
mm |
Φ450 |
Center distance |
mm |
600 |
Max. turning diameter (Shafts / Discs) |
mm |
Φ250/380 |
Guide way type |
mm |
linear |
Chuck size |
|
8" |
Spindle nose |
|
ISO A2-8 |
Spindle speed |
rpm |
45~4500 |
Main spindle motor power (S6) |
kW |
11(15) |
Spindle bore diameter |
mm |
Φ76 |
X-axis travel |
mm |
265 |
Z-axis travel |
mm |
640 |
X-axis rapid traverse |
m/min |
20 |
Z-axis rapid traverse |
m/min |
20 |
Positioning accuracy |
mm |
(X)0.016 (Z) 0.025 |
Repeat positioning accuracy |
mm |
(X)0.007 (Z)0.010 |
Turret: number of stations |
mm |
12 |
Tool size |
mm |
25×25 |
Tailstock quill diameter |
mm |
Φ85 |
Tailstock quill travel |
mm |
139 |
Tailstock taper |
MT |
5 |
Machine size: L×W×H |
mm |
4140/4840×1830×1795 |
Net weight/Gross weight |
kg |
5500/6500 |
