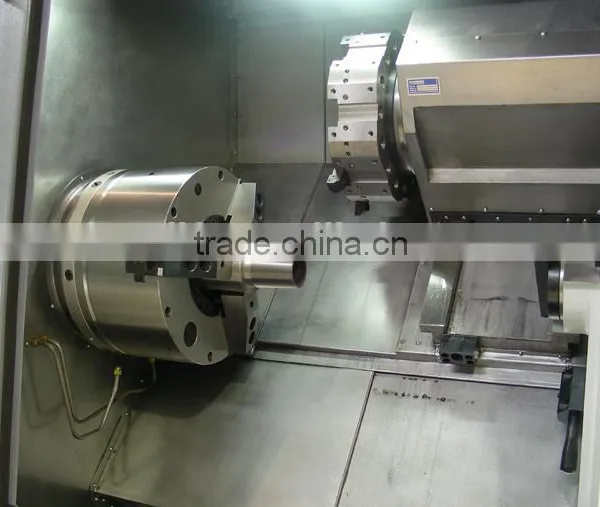

Help Center8-statioin Slant Bed CNC Lathe With CE
Related Products
-
DL40 CE Slant Bed CNC Lathe for Heavy MachiningUS$ 214,000 - 247,058MOQ: 1 Set -
CE CNC Slant Bed Lathe Hot-sale CL-20AUS$ 34,420 - 40,270MOQ: 1 Set
-
CNC Slant Bed Lathe CNC Machine DL-32MUS$ 114,000 - 117,000MOQ: 1 Set
-
High-class Slant Bed CNC Lathe With CE Hot-sale DL25Mx2000mmUS$ 38,970 - 247,058MOQ: 1 Set
-
High-class CNC Lathe With CE Hot-sale DL25Mx2000mmUS$ 38,970 - 247,058MOQ: 1 Set
- 60/45 ° inclined bed split,
- spindle Stepless Speed,

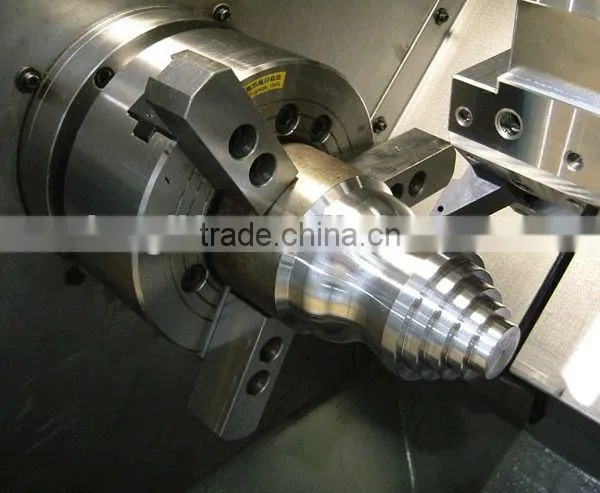

- 6/8″ hydraulic Solid chuck,

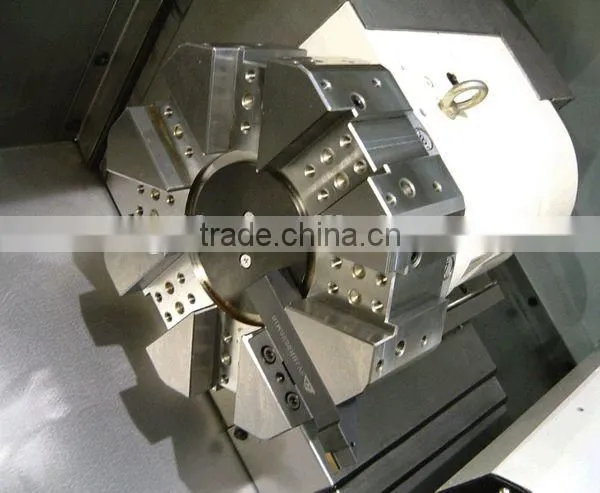

- 8-station hydraulic turret,
- Hydraulic tailstock,
- Lateral waste device,
- Full-closed protection,
- Linear guideways;
- Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability.
- Machine bed is made of heat stabilized cast-iron.
- A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining.
Item |
CL15 |
CL20A |
Swing over bed mm) |
400 |
440 |
Max turning length(mm) |
250/320 |
500 |
Max. turning diameter(Shafts)(mm) |
160 |
360 |
Max. turning diameter(Discs)(mm) |
200 |
300 |
Guide way type |
linear |
linear |
Chuck size |
6" |
8" |
Spindle nose |
ISO A2-5 |
ISO A2-6 |
Spindle speed (rpm) |
50~5000 |
45~4500 |
Main spindle motor power (S6)(kW) |
5.5(7.5) |
11(15) |
Spindle bore diameter (mm) |
46 |
62 |
Max bar diameter(mm) |
32 |
52 |
Positioning accuracy: |
X0.016mm Z0.020mm |
X0.016mm Z0.020mm |
Repeat positioning accuracy: |
X0.007mm Z0.008mm |
X0.007mm Z0.008mm |
X-axis travel (mm) |
120 |
165 |
Z-axis travel (mm) |
260/330 |
510 |
X-axis rapid traverse(m/min) |
15 |
15 |
Z-axis rapid traverse(m/min) |
18 |
20 |
Turret: number of stations |
8 |
8 |
Tool size (mm) |
20×20 |
25×25 |
Tailstock quill diameter(mm) |
60 |
80 |
Tailstock quill travel(mm) |
80 |
130 |
Tailstock taper(MT) |
3 |
3 |
Machine size: L×W×H(mm) |
2130/2350×1555×1880 |
2760×1500×1750 |
Net weight(kg) |
3300/3500 |
4800 |
CNC Type |
FANUC 0i-T |
FANUC 0i-T |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 30~60 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
