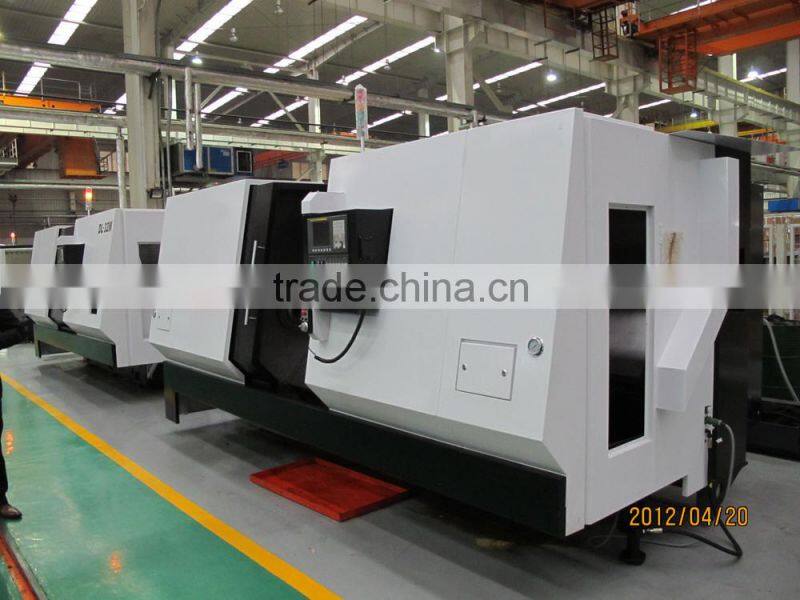

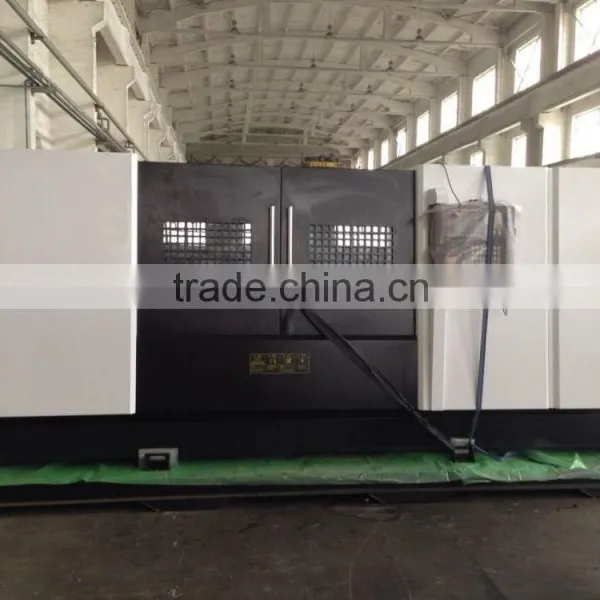

High-class CNC Lathe With CE Hot-sale DL25Mx2000mm

Name: High-class CNC Lathe With CE Hot-sale DL25Mx2000mm
Brand: DALIAN
SKU: 102715643
Availability: InStock

US$ 38,970 - 247,058 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, slant bed lathe

CNC or Not:

CNC

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, slant bed lathe

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 1000mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number DL20M DL25M DL30M DL32M DL40

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Certification ISO9001:2008; GB/T19001:2008; CE Certificate;

After-sales Service Provided Engineers available to service machinery overseas

CNC Slant Bed Lathe Technical Data

Brief Introduction and Usage:

Such machining center is semi-closed control CNC turning center with 3-axis linkage.

It can finish such machining as turning, drilling, milling and tapping to all kinds of rotary parts.

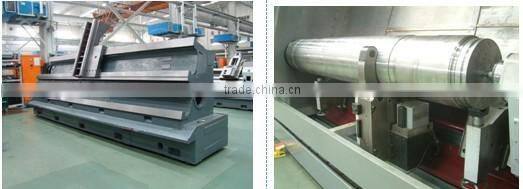

Bed is integrated cast, larger load section, excellent rigidity, not-easy to deform, which guarantee high-accuracy cutting machining.

Main drive is AC servo motor, with high resolution spindle loop pulse encoder and spindle hydraulic brake device, which can realize high-accuracy C-axis indexing function and milling machining.

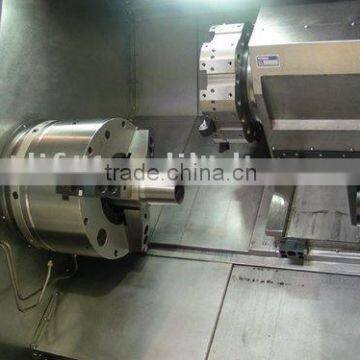

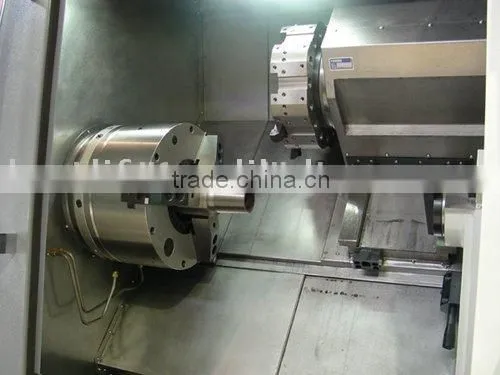

Equipped with original 12-station servo driven turret imported from Italy, can finish combined machining of drilling, milling and

Item	DL15	DL20	DL20M	DL25M	DL30M	DL32M	DL40	DL50
Swing over bed mm)	¢450	¢460	¢460	¢520	¢625	¢680	¢800	¢1000
Center distance (mm)	320	600/1000	600/1000	1000/1500	1000/1500	1000/2000	2000/2500/3000	2000/3000/4000
Max. turning diameter(Shafts/ Discs)(mm)	¢250/300	¢260/380	¢260/380	¢310/500	¢310/600	¢400/630	¢550/750	¢800/1000
Guide way type	linear	linear	linear	box-type	linear	box-type	box-type	box-type
Chuck size	6"	8"	8"	10"	12"	15"	15"	15"
Spindle nose	ISO A2-5	ISO A2-6	ISO A2-8	ISO A2-8	ISO A2-8	ISO A2-11	ISO A2-11	ISO A2-15
Spindle speed (rpm)	50~5000	40~4000	45~4500	35~3500	30~3000	20~2000	20~2000	50~1200
Main spindle motor power(S6)(kW)	5.5/(7.5)	11(15)	11(15)	18.522	15(18.5)	22(30)	22(30)	22(30)
Spindle bore diameter (mm)	¢70	¢70	¢76	¢88	¢88	¢100	¢100	¢100
X-axis travel (mm)	150	220	265	260	325	375	375	500
Z-axis travel (mm)	320	540/100	700/1040	1100/1600	1110	1030/2030	2160/2660/3160	2160/3160/4060
X-axis rapid traverse(m/min)	20	12	20	12	24	13	12	12
Z-axis rapid traverse(m/min)	20	16	20	12	24	13	16	12
Positioning accuracy(mm)	X0.016 Z0.020	X0.016Z0.025	X0.010 Z0.012	X0.016 Z0.025	X0.019 Z0.032	X0.019 Z0.032	X0.019 Z0.040	X0.019 Z0.040
Repeat positioning accuracy(mm)	X0.007 Z0.008	X0.007 Z0.010	X0.0040 Z0.006	X0.0070 Z0.010	X0.0010 Z0.013	X0.0010 Z0.013	(X0.0012 Z0.015	(X0.0012 Z0.020
Turret: number of stations	8	12	12	12	12	12	12	12
Tool size (mm)	20×20	25×25	25×25	25×25	25×25	32×25	32×25	32×25
Tailstock quill diameter(mm)	¢70	¢85	¢85	¢100	¢140	¢160	¢160	¢180
Tailstock quill travel(mm)	80	100	139	139	150	180	180	180
Tailstock taper(MT)	4	4	5	5	5	5	5	6
