CNC Slant Bed Lathe Technical Data
Brief Introduction and Usage:
Such machining center is semi-closed control CNC turning center with 3-axis linkage.
Host machine is controlled by FANUC 0i-TC, spindle motor is AC servo motor,
It can finish such machining as turning, drilling, milling and tapping to all kinds of rotary parts.
Bed is integrated cast, larger load section, excellent rigidity, not-easy to deform, which guarantee high-accuracy cutting machining.
Main drive is AC servo motor, with high resolution spindle loop pulse encoder and spindle hydraulic brake device, which can realize high-accuracy C-axis indexing function and milling machining.

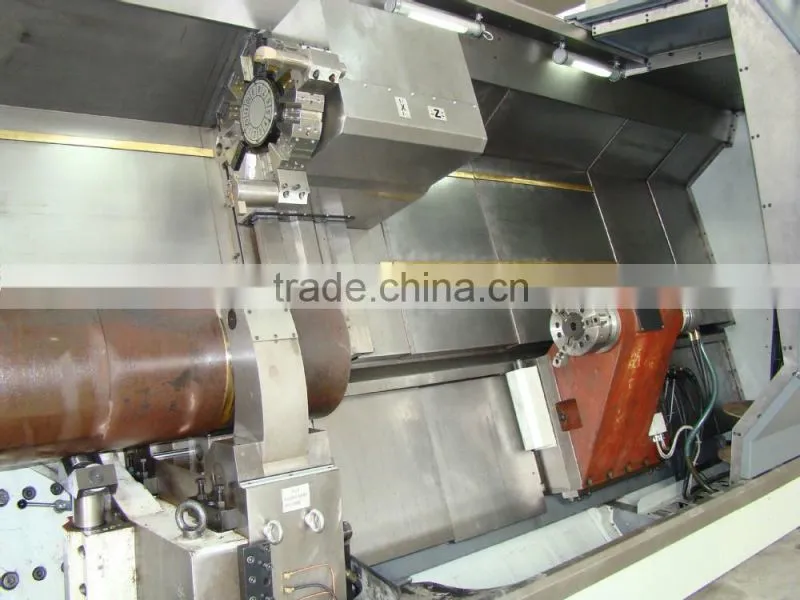

Equipped with original 12-station servo driven turret imported from Italy, can finish combined machining of drilling, milling and
tapping as well as turning, which improve accuracy and machining ability.
Item |
DL20M |
DL25M |
DL30M |
DL32M |
DL40 |
Swing over bed mm) |
440 |
520 |
625 |
680 |
800 |
Max turning length(mm) |
600/1000 |
1000/1500 |
1000 |
1000/2000 |
2000/2500/3000 |
Max. turning diameter(Shafts)(mm) |
260 |
310 |
310 |
400 |
550 |
Max. turning diameter(Discs)(mm) |
400 |
500 |
600 |
630 |
750 |
Guide way type |
linear |
box-type |
linear |
box-type |
box-type |
Chuck size |
8" |
10" |
12" |
15" |
15" |
Spindle nose |
ISO A2-8 |
ISO A2-8 |
ISO A2-8 |
ISO A2-11 |
ISO A2-11 |
Spindle speed (rpm) |
45-4500 |
35-3500 |
30-3000 |
20-2000 |
20-2000 |
Main spindle motor power(S6)(kW) |
11(15) |
18.522 |
15(18.5) |
22(30) |
22(30) |
Spindle bore diameter (mm) |
76 |
87 |
88 |
100 |
100 |
Max bar diameter(mm) |
65 |
74 |
74 |
84 |
84 |
X-axis travel (mm) |
265 |
260 |
325 |
375 |
375 |
Z-axis travel (mm) |
700/1040 |
1100/1600 |
1110 |
1030/2030 |
2160/2660/3160 |
X-axis rapid traverse(m/min) |
24 |
12 |
24 |
13 |
12 |
Z-axis rapid traverse(m/min) |
24 |
12 |
24 |
13 |
16 |
Turret: number of stations |
12 |
12 |
12 |
12 |
12 |
Tool size (mm) |
25×25 |
25×25 |
25×25 |
32×25 |
32×25 |
Tailstock quill diameter(mm) |
85 |
100 |
140 |
160 |
160 |
Tailstock quill travel(mm) |
139 |
139 |
150 |
180 |
180 |
Tailstock taper(MT) |
5 |
5 |
5 |
5 |
5 |
Machine size: L×W×H(mm) |
4140/4840×1794×1795 |
4834/4934×1830×1977 |
5084×2082×2050 |
5740/6740×2040×2240 |
5950/6450/6950×2358×2600 |
Net weight(kg) |
5500/6500 |
7800/8300 |
8500 |
11000/13000 |
13000/14000/15000 |
CNC Type |
FANUC 0i-T |
FANUC 0i-T |
FANUC 0i-T |
FANUC 0i-T |
FANUC 0i-T |
