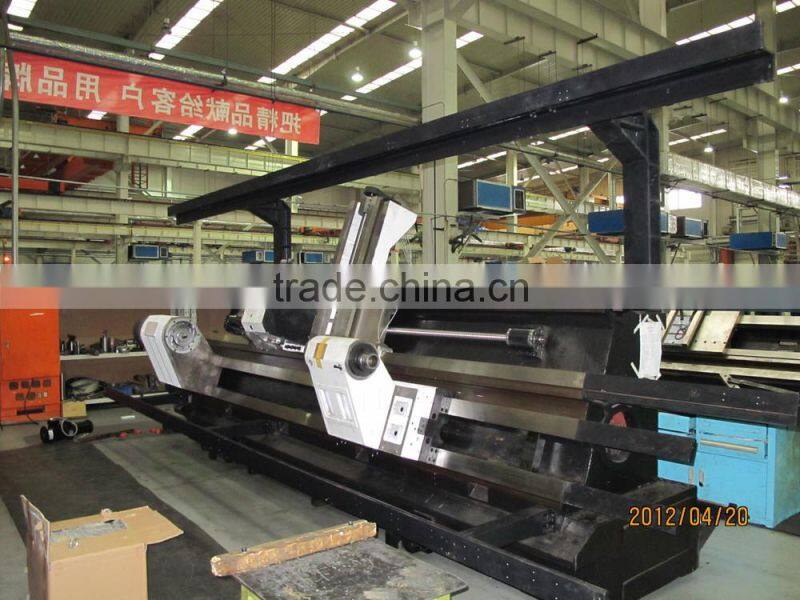

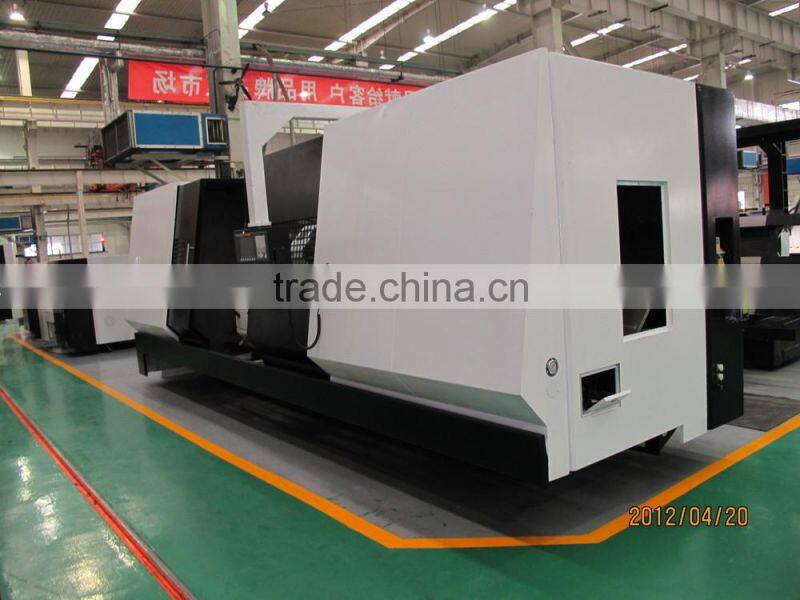

Help CenterCNC Slant Bed Lathe CNC Machine DL-32M
Related Products
-
High-class Slant Bed CNC Lathe With CE Hot-sale DL25Mx2000mmUS$ 38,970 - 247,058MOQ: 1 Set -
High-class CNC Lathe With CE Hot-sale DL25Mx2000mmUS$ 38,970 - 247,058MOQ: 1 Set
-
CL15x250 CE 8 Station Slant Bed Cnc Lathe MachineUS$ 35,030 - 45,470MOQ: 1 Set
-
DL25Mx1500 CE Slant Bed Cnc Lathe for SaleUS$ 80,150 - 87,470MOQ: 1 Set
-
DL20M CE Certified 45 Deg. Slant-bed CNC LatheUS$ 51,320 - 247,058MOQ: 1 Set
Technical Specifications
Standard Configuration
45°overall inclined bed,spindle Stepless Speed,15″hydraulic Solid chuck,12-station hydraulic turret,Hydraulic tailstock,Lateral waste device,Closed-end protection,box-type;
CE;
Specifications |
Unit |
Parameter |
Swing over bed |
mm |
Φ680 |
Center distance |
mm |
2000 |
Max. turning diameter(Shafts/ Discs) |
mm |
Φ400/630 |
Guide way type |
mm |
box-type |
Chuck size |
mm |
15" |
Spindle nose |
|
ISO A2-11 |
Spindle speed |
rpm |
20~2000 |
Main spindle motor power(S6) |
kW |
22(30) |
Spindle bore diameter |
mm |
Φ100 |
X-axis travel |
mm |
375 |
Z-axis travel |
mm |
1030 |
X-axis rapid traverse |
m/min |
13 |
Z-axis rapid traverse |
m/min |
13 |
Positioning accuracy |
mm |
(X)0.012(Z)0.025/0.03/0.04/0.05 |
Repeat positioning accuracy |
mm |
(X)0.007(Z)0.012/0.013/0.016/0.02 |
Turret: number of stations |
mm |
12 |
Tool size |
mm |
32×25 |
Tailstock quill diameter |
mm |
Φ160 |
Tailstock quill travel |
mm |
180 |
Tailstock taper |
MT |
5 |
Machine size: L×W×H |
mm |
6740×2040×2240 |
Net weight |
kg |
13000 |
Item |
Specifications |
Quantities |
Remark |
Foundation Sizing Block |
|
6/8 sets |
1000/1500 |
Tool Holders for ID Tools |
|
2 sets |
|
Right angle coupling sparge pipe |
|
12 sets |
|
Locking Device for Tools |
|
8 set |
|
Tool Sleeves for Inner Hole |
Φ40 |
1 set |
|
Tool Sleeves for Inner Hole |
Φ32 |
1 set |
|
Tool Sleeves for Inner Hole |
Φ25 |
1 set |
|
Tool Sleeves for Inner Hole |
Φ20 |
1 set |
|
Soft Jaw |
|
1 set |
|
Live Center |
DL32-69701 |
1 |
Used in Tailstock |
Center |
DL32-69702 |
1 |
|
Screw Nuts |
DL32-69703 |
2 |
|
Foot Switch |
|
1 set |
|
Chip Handcart |
|
1 set |
|
Technical Data |
|
1 set |
|
CNC Controller |
0i-TD |
1 |
FANUC Corp. |
Heat Exchanger for Electrical Cabinet |
|
1 |
China |
Lubrication System |
|
1 |
Taiwan or its Joint-venture |
Hydraulic Component |
|
1 |
China |
Main Electronic Components |
|
1 |
Japan or Joint-venture |
Spindle Chuck and Oil Cylinder |
|
1 |
Auto Strong Taiwan |
Hydraulic Turret |
|
1 |
DGC |
Auto Chip Conveyor System |
|
1 |
Yantai |
Spindle Bearing |
|
1 |
NSK |
X/Z-axis Bearing |
|
1set/each |
NSK |
X/Z-axis Ball-screw |
|
1 |
DGC |
Main Drive Belt |
|
1 |
Japan Or USA |
Notched Belt |
|
1 |
Japan Or USA |
