CNC gantry milling machine
- 10 Set / Sets per Month
- Dalian
- T/T L/C D/P D/A
- SMT panasonic CM202-DS
- vmc650 CNC machining center|CNC machining center 650
- vmc850 CNC machining center|Vertical Machining Center
- vmc650 CNC machining center|CNC machining center 650
- Plastic product processing flame-retardant ABS mold production Plastic shell Plastic accessories Injection molding mold design
- Manufacturer abs blow mold processing PP PE Injection mold construction processing large electronic product mold injection
Product Details
Condition: | New | Type: | Other, Gantry, machining center | Place of Origin: | Liaoning, China |
Model Number: | S-V2017;S-V2020;S-V3020; S-V3025;S-V3027; | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

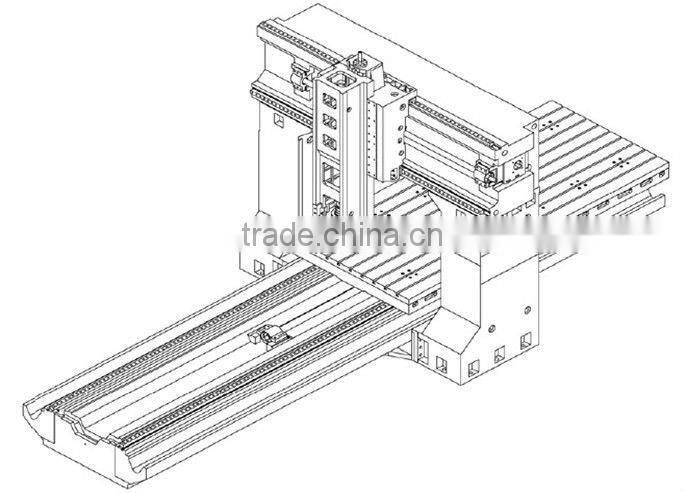

CNC Gantry Machining Center
Usage Range
Heavy workpiece processing
Internal and external cylindrical and conical surface and plane
Grooving,head face,severance;
Milling and boring,threading,grinding,tapping,etc;
UNIT /Model Specifications | Unit | S-V2017 | S-V2222 | S-V3017 | S-V3022 | S-V3027 |
Table size ( L × W ) | mm | 2100x1200 | 2000x1800 | 3000x1200 | 3000x1800 | 3000×2300 |
T-slot (Nos × W × Distance) (b / t slots) | mm | 22x7x150 | 22x9x180 | 22x7x170 | 22x9x180 | 11×28×200 |
Max. table load | kg | 3000 | 4000 | 6000 | 6000 | 8000 |
Distance from spindle nose to table | mm | 175~975 | 250~1250 | 115~915 | 250~1250 | 260~1260 |
Distance from spindle center to column | mm | 686 | 439.5 | 439.5 | 439.5 | 549 |
Distance between two columns | mm | 1650 | 2200 | 1650 | 2200 | 2700 |
X/Y/Z travel | mm | 2000/1650/800 | 2200/2200/1000 | 3000/1650/800 | 3000/2200/1000 | 3000/2700/1000 |
X/Y/Z rapid traverse speed | m/min | 8/10/10 | 12 | 12 | 12 | 12 |
Feed rate | mm/min | 1~8000 | 1~8000 | 1~8000 | 1~8000 | 1~8000 |
Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
Repeat positioning accuracy | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
Spindle motor power (continuous/overload) | kW | 15/18.5 | 22/26 | 22/26 | 22/26 | 26/30 |
Spindle speed range | r/min | 40~6000 | 40~6000 | 40~6000 | 40~6000 | 40~6000 |
Spindle taper |
| #50 | #50 | #50 | #50 | #50 |
Height of machine | mm | 4500 | 5200 | 5200 | 5200 | 5500 |
Machine covers an area of size | mm | 7500x5000 | 7000x5500 | 9000x5500 | 9000x5500 | 9000×6000 |
N.W/G.W | kg | 27000/29000 | 32000/35000 | 37000/40000 | 37000/40000 | 48000/45000 |
Air pressure requirement | kgf/cm² | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
Current | KVA | 40 | 40 | 50 | 50 | 50 |
Remark:Tool magazine is optional |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
Contact Us
- Long Life Machinery Import And Export Co., Ltd.
- Contact nameTeresa Liu
- Phone86-411-81106819
- Address415 room, No.872, Xinan road, Shahekou district Dalian,Liaoning
