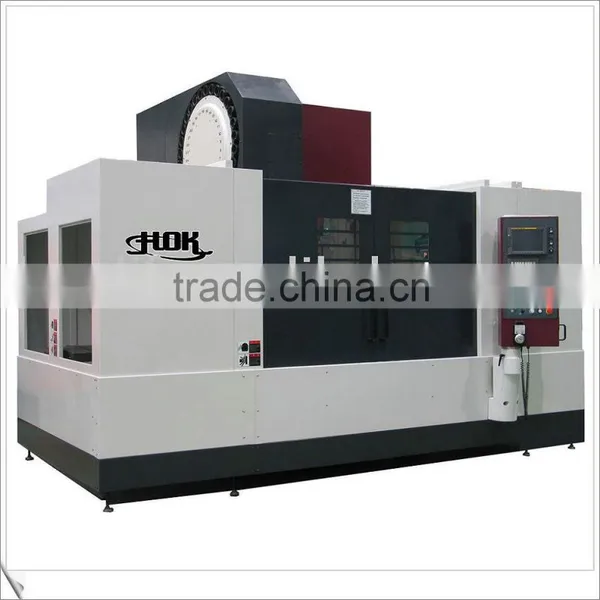

Catalogue of CE High Speed Cnc Vertical Machining Center Hot-sale MDV55

Catalogue of CE High Speed Cnc Vertical Machining Center Hot-sale MDV55 thumbnail-1
Catalogue of CE High Speed Cnc Vertical Machining Center Hot-sale MDV55 photo-1
US$ 94,824 - 244,589 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical
Place of Origin:
Liaoning, China
Contact Supplier Request Quote Chat Now
Long Life Machinery Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian/Tianjing/Shanghai/Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Vertical
Place of Origin Liaoning, China
Brand Name DALIAN
Model Number MDV55 MDV75 MDV95 cnc vertical machining center
Voltage Customized
Power(W) 7.5~15kW
Dimension(L*W*H) depends
Weight depends
Certification CE Certificate; ISO9001:2008; GB/T19001:2008
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

High-speed Machining Center Parameter



Machine Featurers:

1. With CE Certificate;

2. National Inspection-free products

3. Highly rigid and stable machine structure;

4. High precision Sliding Guide Ways on all three-axis;

5. High precision spindle and High spindle speed: 8000~13000rpm;

6. Fast and reliable tool changing mechanism;

7. Cooling system;

8. Multi-functional CNC control system, such as: FANUC, SIEMENS, FAGOR, REXROTH, MITSUBISHI, etc;

Brief Introduction

 There are four series of CNC machining center in our company:

CNC Horizontal Machining Center, CNC Vertical Machining Center, CNC High-speed Vertical Machining Center and CNC Miiling Machine.

CNC Vertical Machining Center: MDV55, MDV75,MDV95;

Main Technical Data

Specifications

Unit

Model

MDV55

MDV75

MDV95

Table(L×W)

mm

1050×560

1550x740

2300×950

T-slot(Numbers×Width×Distance)(b/t slots)

mm

18×100×5

22×140×5

22×125×7

Table load Max

kg

800

1500

2500

The distance from spindle center line to column guide way surface

mm

615

810

1100

The distance from spindle nose end face to table upper surface

mm

150~660

150~810

150~1000

X/Y/Z travel

mm

1020/550/510

1530/740/660

2060/950/850

X/Y/Z guide way type



Sliding Guide way

Sliding Guide way

sliding guide

X/Y/Z rapid traverse speed

m/min

30/30/20

24/24/20

20/20/15

Feed rate

mm/min

1~10000

1~10000

1~10000

X/Y/Z servo motor power

Nm

3.0/3.0/4.0

4.0/4.0/7.0

7.0/4.0×2/7.0

Positioning accuracy

mm

±0.003(JIS),0.008(VDI)

±0.003(JIS),0.008(VDI)

±0.008/±0.005 /±0.005

Repeat positioning accuracy

mm

±0.002(JIS),0.004(VDI)

±0.002(JIS),0.004(VDI)

±0.003

Spindle motor power

kW

7.5/11(SPECIAL:11/15)

7.5/11(SPECIAL:11/15)

11/15

Spindle speed range

r/min

6000(Second level gear speed)(Special:8000rpm(Second level gear speed,13000rpm MS)

6000(Second level gear speed)(Special:8000rpm(Second level gear speed,13000rpm MS)

6000(Second level gear speed)(Special:8000rpm(Second level gear speed,13000rpm MS)

Spindle taper



No.50

No.50

No.50

Tool magazine capacity/Type



20(Special:30)

20(Special:30)

30

Tool adaptor type



JISB6339 50T

JISB6339 50T

JISB6339 50T

Max. Tool weight

kg

20

20

20

Max. Tool diameter/length

mm

Φ110(30Drum:Φ103)/350

Φ110(30Drum:Φ103)/350

Φ110(30Drum:Φ103)/350

Time of tool change(T-T)

sec

(T-T),5.9(C-C)Speed as per the tool weight

(T-T),5.9 (C-C)Speed as per the tool weight

(T-T),5.9(C-C)Speed as per the tool weight

Air pressure requirement

MPa

0.4~0.6

0.4~0.6

0.5~0.8

Net weight

kg

7500

10500

20500

Machine Height

Mm

2846

3226

3662
Factory Overview

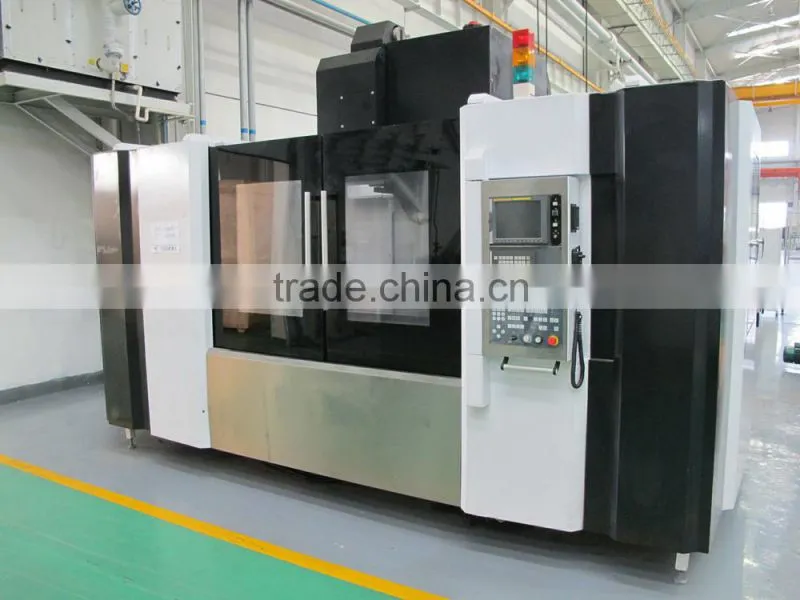

Catalogue of CE high speed cnc vertical machining center Hot-sale MDV55

Catalogue of CE high speed cnc vertical machining center Hot-sale MDV55

Catalogue of CE high speed cnc vertical machining center Hot-sale MDV55

Catalogue of CE high speed cnc vertical machining center Hot-sale MDV55

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129

FAQ

Payment Term:

  1. 30% down payment, 70% by T/T before shipment;
  2. 100% LC at sight(optional and shall be discussed before placing order);

Minimum Order Quantity:

  1. 1 Set;
  2. ≥2 sets, there will be much discounts.

Warranty:

  1. Normally, 12 months for parts as of delivery of the machines;

Shipment:

  1. For machine itself, by sea or train(inland countries).
  2. For documents, by international express. eg DHL, TNT or EMS.
Packaging & Shipping
Catalogue of CE high speed cnc vertical machining center Hot-sale MDV55

Catalogue of CE high speed cnc vertical machining center Hot-sale MDV55

Catalogue of CE high speed cnc vertical machining center Hot-sale MDV55
