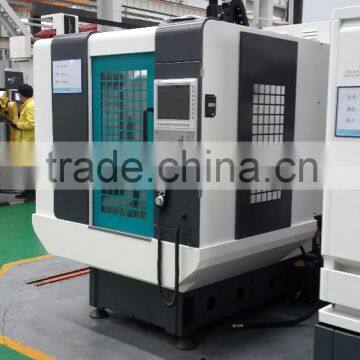

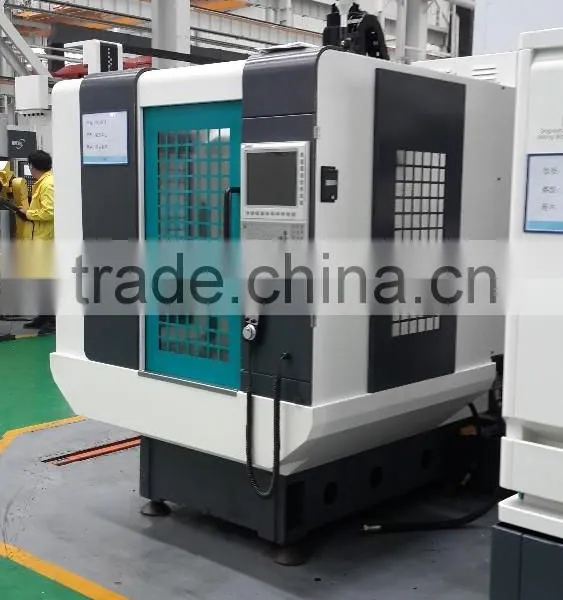

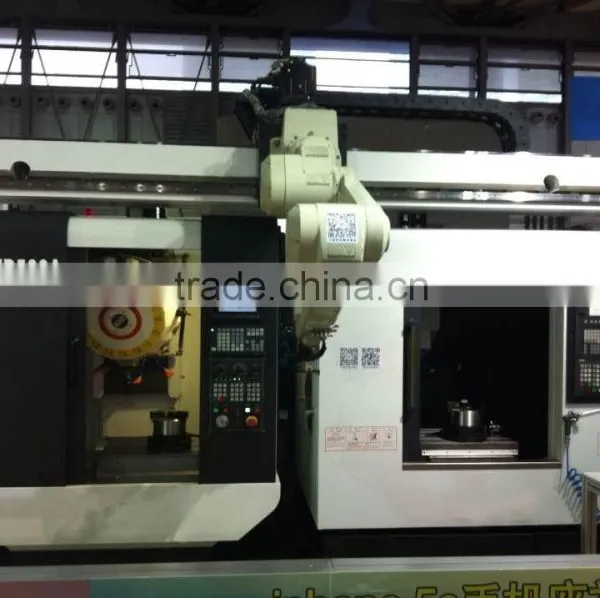

TD500A High-speed Drilling And Milling Center with CE

Table size (L × W)

mm

650×400

Table load Max

kgs

300

X travel

mm

500

Y travel

mm

400

Z travel

mm

330

Distance from spindle center line to column guide way surface

mm

400

Distance from spindle nose end face to table upper surface

mm

150~480

X/Y/Z cutting speed

mm/min

0~20000

X/Y/Z rapid traverse speed

m/min

48/48/48

Spindle speed range

rpm

50~12000(20000 opt)

Spindle taper

No.30 (7:24 )

Spindle motor power

kW

5.5/3.7 (35/23.5Nm)

Mitsubishi M70VA SJ-V5.5-01T

X/Y/Z servo motor power

kW

1.5/1.5/2.2

Tool magazine capacity / Type

16 T(swing)

Tool adaptor type

BT30

Max. Tool weight

kg

3

Max. Tool diameter/length

mm

Ø80/Ø200

Time of tool change (T-T)

sec

1.6

T-slot (Numbers × Width × Distance)

mm

3×14×125

Positioning accuracy(National Standard)

mm

X,Y,Z:0.010

Repeat positioning accuracy(National Standard)

mm

X,Y,Z:0.006

Air pressure requirement(Flow L/min)

MPa

  0.5-0.7(200)

Overall dimension (L × W × H)

mm

2040×1580×2155

Net weight

kgs

2350
