Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > MDV Series High-speed Machining Center

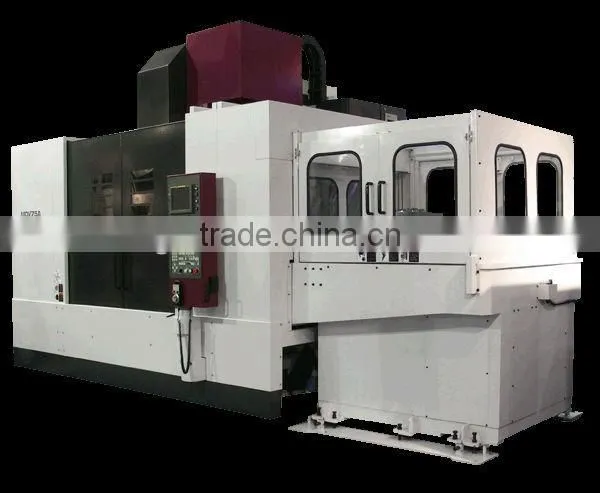

MDV Series High-speed Machining Center

Name: MDV Series High-speed Machining Center
Brand: Dalian
SKU: 102715055
Availability: InStock

MDV Series High-speed Machining Center thumbnail-1

MDV Series High-speed Machining Center photo-1

US$ 104,824 - 244,589 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

Place of Origin:

Liaoning, China

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

Place of Origin Liaoning, China

Brand Name Dalian

Model Number MDV55 MDV75 MDV95

After-sales Service Provided Engineers available to service machinery overseas

Machining Center Parameter

High rigidity and high stability in machine structure

High precision three-axis feeding system

Linear lead screw

High speed precision spindle

Fast and reliable tool changing mechanism

Specifications	Unit	Model
Specifications	Unit	MDV55	MDV75	MDV95
Table(L×W)	mm	1050×560	1550x740	2300×950
T-slot(Numbers×Width×Distance)(b/t slots)	mm	18×100×5	22×140×5	22×125×7
Table load Max	kg	800	1500	2500
The distance from spindle center line to column guide way surface	mm	615	810	1100
The distance from spindle nose end face to table upper surface	mm	150~660	150~810	150~1000
X/Y/Z travel	mm	1020/550/510	1530/740/660	2060/950/850
X/Y/Z guide way type		Sliding Guide way	Sliding Guide way	sliding guide
X/Y/Z rapid traverse speed	m/min	30/30/20	24/24/20	20/20/15
Feed rate	mm/min	1~10000	1~10000	1~10000
X/Y/Z servo motor power	Nm	3.0/3.0/4.0	4.0/4.0/7.0	7.0/4.0×2/7.0
Positioning accuracy	mm	±0.003(JIS),0.008(VDI)	±0.003(JIS),0.008(VDI)	±0.008/±0.005 /±0.005
Repeat positioning accuracy	mm	±0.002(JIS),0.004(VDI)	±0.002(JIS),0.004(VDI)	±0.003
Spindle motor power	kW	7.5/11(SPECIAL:11/15)	7.5/11(SPECIAL:11/15)	11/15
Spindle speed range	r/min	6000(Second level gear speed)(Special:8000rpm(Second level gear speed,13000rpm MS)	6000(Second level gear speed)(Special:8000rpm(Second level gear speed,13000rpm MS)	6000(Second level gear speed)(Special:8000rpm(Second level gear speed,13000rpm MS)
Spindle taper		No.50	No.50	No.50
Tool magazine capacity/Type		20(Special:30)	20(Special:30)	30
Tool adaptor type		JISB6339 50T	JISB6339 50T	JISB6339 50T
Max. Tool weight	kg	20	20	20
Max. Tool diameter/length	mm	Φ110(30Drum:Φ103)/350	Φ110(30Drum:Φ103)/350	Φ110(30Drum:Φ103)/350
Time of tool change(T-T)	sec	(T-T),5.9(C-C)Speed as per the tool weight	(T-T),5.9 (C-C)Speed as per the tool weight	(T-T),5.9(C-C)Speed as per the tool weight
Air pressure requirement	MPa	0.4~0.6	0.4~0.6	0.5~0.8
Net weight	kg	7500	10500	20500
Machine Height	Mm	2846	3226	3662
