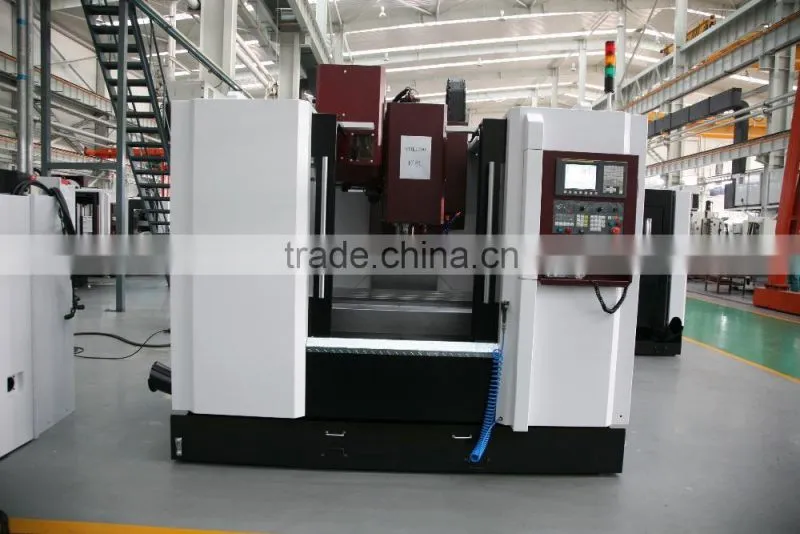

Catalogue of Vertical Machining Center
1. With CE Certificate;
2. National Inspection-free products
3. Highly rigid and stable machine structure;
4. High precision linear on all three-axis;
5. High precision spindle and High spindle speed: 8000~10000rpm;
6. Fast and reliable tool changing mechanism;
7. Cooling system;
8. Multi-functional CNC control system, such as: FANUC, SIEMENS, FAGOR, REXROTH, MITSUBISHI, etc;
There are four series of CNC machining center in our company:
CNC Horizontal Machining Center, CNC Vertical Machining Center, CNC High-speed Vertical Machining Center and CNC Milling Machine

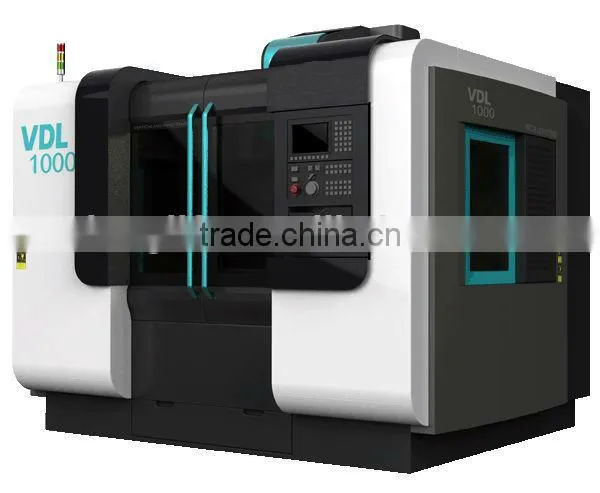

CNC Vertical Machining Center: VDL500;VDL600A;VDL800;VDL1000;VDL1200; VDL1400A;VDF850 ;VDF1000; VDF1200; VDF1500; VDF1800
VDF series: Box way;
VDL series: X/Y-Linear way, Z-box way;
Item |
VDL500 |
VDL600A |
VDF850 |
VDL1000 VDF1000 |
VDL1200 VDF1200 |
VDL1400A |
VDF1500 |
VDF1800 |
Table(L×W)(mm) |
700×320 |
800×420 |
1000×500 |
1120×560 |
1220×620 |
1450×620 |
1700×800 |
2000×800 |
T-slot(Numbers×Width×Distance) |
3×14×110 |
3×18×125 |
5×18×100 |
5×18×100 |
5×18×100 |
5×18×100 |
6×18×125 |
6×18×125 |
Table load Max(kg) |
150 |
500 |
500 |
750 |
1500 |
1500 |
2500 |
2500 |
X/Y/Z rapid traverse speed(m/min) |
30/30/30 |
24/24/20 |
20/20/18 |
24/24/18 |
24/24/18 |
24/24/18 |
15/15/12 |
15/15/12 |
Feed rate(mm/min) |
1~10000 |
1~10000 |
1~7600 |
1~10000 |
1~10000 |
1~10000 |
1~6000 |
1~6000 |
Spindle speed range(r/min) |
60~10000 |
60~10000 |
60~8000 |
60~8000 |
45~6000 |
45~6000 |
45~6000 |
45~6000 |
Tool magazine capacity/Type |
12/drum |
16/drum 24/swing arm |
20/drum |
20/drum 24/swing arm |
24/swing arm |
24/swing arm |
24/swing arm |
24/swing arm |
Tool adaptor type |
BT40 |
BT40 |
BT40 |
BT40 |
BT50 |
BT50 |
BT50 |
BT50 |
Max. Tool weight (kg) |
6 |
7 |
7 |
7 |
15 |
15 |
15 |
15 |
Time of tool change(T-T) (sec) |
6~8 |
6~8/3.5 |
6~8/3 |
6~8/3 |
3.5 |
3.5 |
3.5 |
3.5 |
Air pressure requirement (MPa) |
0.6 |
0.6 |
0.5 |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
Power requirement (kW) |
15 |
25 |
25 |
25 |
35 |
35 |
40 |
40 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
