VDL500/600 Smaller Hot Sale Cnc Vertical Machining Center

VDL500/600 Smaller Hot Sale Cnc Vertical Machining Center thumbnail-1
VDL500/600 Smaller Hot Sale Cnc Vertical Machining Center thumbnail-2

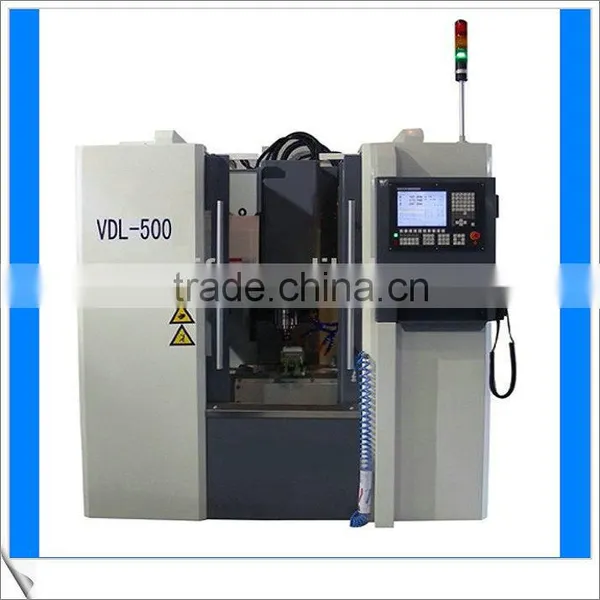

VDL500/600 Smaller Hot Sale Cnc Vertical Machining Center photo-1

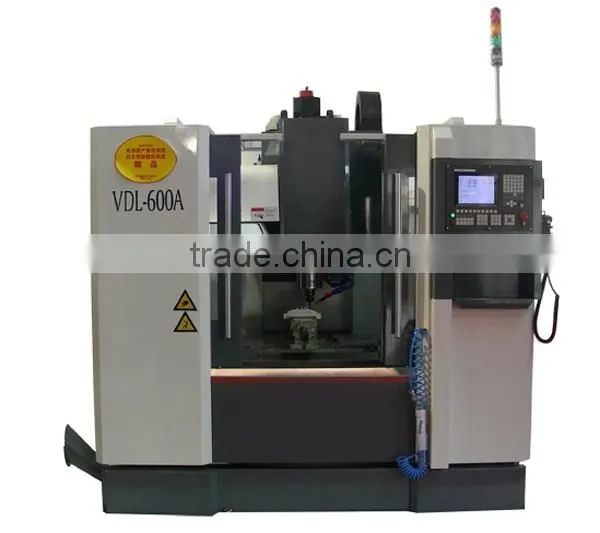

VDL500/600 Smaller Hot Sale Cnc Vertical Machining Center photo-2
US$ 33,780 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical
Place of Origin:
Liaoning, China
Contact Supplier Request Quote Chat Now
Long Life Machinery Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian/Tianjing/Shanghai/Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Vertical
Place of Origin Liaoning, China
Brand Name DALIAN
Model Number VDL500 VDL600A vertical machining center
Voltage Customized
Power(W) 3.7/7.5kW
Dimension(L*W*H) 2310x2040x2337mm
Weight 2000/4800kgs
Certification ISO9001:2008; GB/T19001:2008; CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

VDL500/600 cnc vertical machining center

Machine Featurers:

1. With CE Certificate;

2. National Inspection-free products

3. Highly rigid and stable machine structure;

4. High precision linear on all three-axis;

5. High precision spindle and High spindle speed: 8000~10000rpm;

6. Fast and reliable tool changing mechanism;

7. Cooling system;

8. Multi-functional CNC control system, such as: FANUC, SIEMENS, FAGOR, REXROTH, MITSUBISHI, etc;

Real Photos

VDL500/600 smaller hot sale cnc vertical machining center

VDL500/600 smaller hot sale cnc vertical machining center

Main Technical Data

Specifications

Unit

VDL500 vmc

VDL600A vmc

Table(L×W)

mm

700×320

800×420

T-slot(Numbers×Width×Distance)(b/t slots)

mm

3×14×110

3×18×125

Max. Table load

kg

150

500

The distance from spindle center line to column guide way surface

mm

430

511

The distance from spindle nose end face to table upper surface

mm

140~520

150~670

X/Y/Z travel

mm

450/350/380

600/420/520

X/Y/Z guide way type



Linear way

Linear way

X/Y/Z rapid traverse speed

m/min

30/30/30

24/24/20

Feed rate

mm/min

1~10000

1~10000

X/Y/Z servo motor power

kW

1.4/1.4/1.6 (1.2/1.2/1.8)

( 2.85/2.85/2.85)

3/3/3 (1.2/1.2/1.8)

(1.8/1.8/2.5)

X/Y/Z servo motor torque

N.m

7/7/7

11/11/11

Positioning accuracy

mm

0.016

X/Z:0.020

Y:0.016

Repeat positioning accuracy

Nm

0.006

X/Z:0.008

Y:0.006

Spindle motor power

kW

3.7/5.5

7.5/11

Spindle speed range

r/min

60~10000

60~8000

Spindle taper



#40(7/24)

#40(7/24)

Tool magazine capacity/Type



12/drum

16/drum

Tool adaptor type



BT40

BT40

Max. Tool weight

kg

6

7

Max. Tool diameter/length

mm

80/200

drum

100/280

drum 77/280

swing arm

Time of tool change(T-T)

sec

6~8

6~8/3.5

Air pressure requirement

MPa

0.6

0.6

Power requirement

kW

15

25

Overall dimension(L×W×H)

mm

2450×1590×2200

2310×2040×2337

Net weight

kg

2000

4800
Factory Overview

VDL500/600 smaller hot sale cnc vertical machining center

VDL500/600 smaller hot sale cnc vertical machining center

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129

FAQ

Payment Term:

  1. 30% down payment, 70% by T/T before shipment;
  2. 100% LC at sight(optional and shall be discussed before placing order);

Minimum Order Quantity:

  1. 1 Set;
  2. ≥2 sets, there will be much discounts.

Warranty:

  1. Normally, 12 months for parts as of delivery of the machines;

Shipment:

  1. For machine itself, by sea or train(inland countries).
  2. For documents, by international express. eg DHL, TNT or EMS.
Packaging & Shipping

VDL500/600 smaller hot sale cnc vertical machining center

VDL500/600 smaller hot sale cnc vertical machining center

VDL500/600 smaller hot sale cnc vertical machining center
