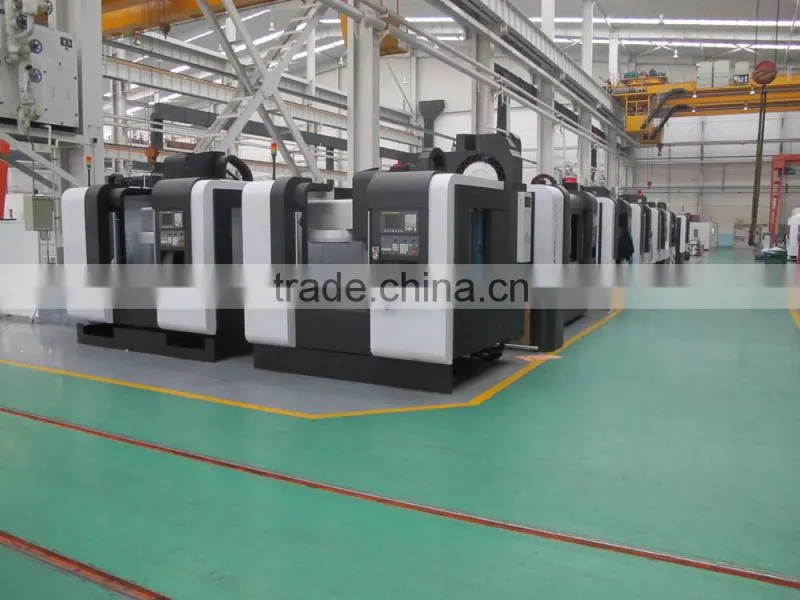

VDL1300 CE Certified Linear Way and Box Way Vertical Machining Center

Name: VDL1300 CE Certified Linear Way and Box Way Vertical Machining Center
Brand: DALIAN
SKU: 102715089
Availability: InStock

US$ 55,780 - 76,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

Place of Origin:

Liaoning, China

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number VDL1300

Voltage 220V/380V/415V/440V/480V

Power(W) 11/15kW

Dimension(L*W*H) 3330x2280x2650mm

Weight 7200 kgs

Certification ISO9001:2008; CE; GB/T19001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

VDL1300 Vertical Machining Center

There are four series of CNC machining center in our company:

CNC Horizontal Machining Center, CNC Vertical Machining Center, CNC High-speed Vertical Machining Center and CNC Milling Machine

CNC Vertical Machining Center: VDL500;VDL600A;VDL800;VDL1000;VDL1200; VDL1400A;VDF850 ;VDF1000; VDF1200; VDF1500; VDF1800

VDF series: Box way;

VDL series: X/Y-Linear way, Z-box way;

Specifications	Unit	Parameter
Table (L × W)	mm	1300×560
T-slot (Numbers × Width × Distance) (b/t slots)	mm	5×18×100
Table load Max	kg	750
The distance from spindle center line to column guide way surface	mm	629
Distance from spindle nose end face to table upper surface	mm	135~735
X/Y/Z travel	mm	1270×560×600
X/Y/Z guide way type		X/Y: Linear way Z: Sliding guide way Y-axis-3 Rails
X/Y/Z rapid traverse speed	m/min	24/24/18
Feed rate	mm/min	1~10000
X/Y/Z servo motor power	Nm	22/22/22
X/Y/Z servo motor torque	N.m	22/22/22
Positioning accuracy	mm	X:0.025 Y/Z:0.020
Repeat positioning accuracy	mm	X:0.010 Y/Z:0.008
Spindle motor power	kW	11/15
Spindle speed range	r/min	60~8000
Spindle taper		#40(7/24)
Tool magazine capacity / Type		20/drum
Tool adaptor type		BT40
Max. Tool weight	kg	7
Max. Tool diameter/length	mm	127/305 swing arm
Time of tool change (T-T)	sec	3.5
Air pressure requirement	MPa	0.6
Power requirement	kW	35
Overall dimension (L × W × H)	mm	3330×2280×2650
Net weight	kg	7200
